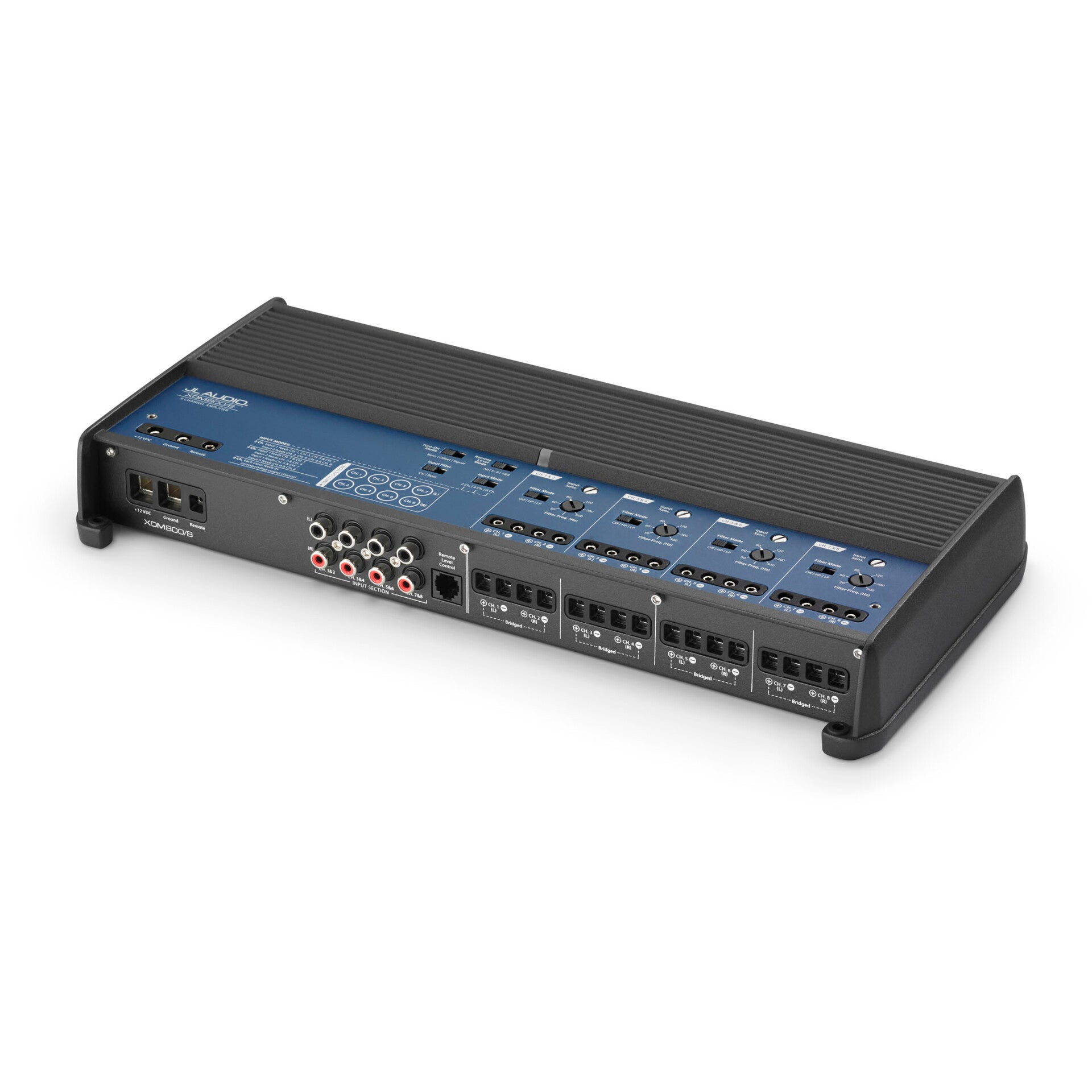

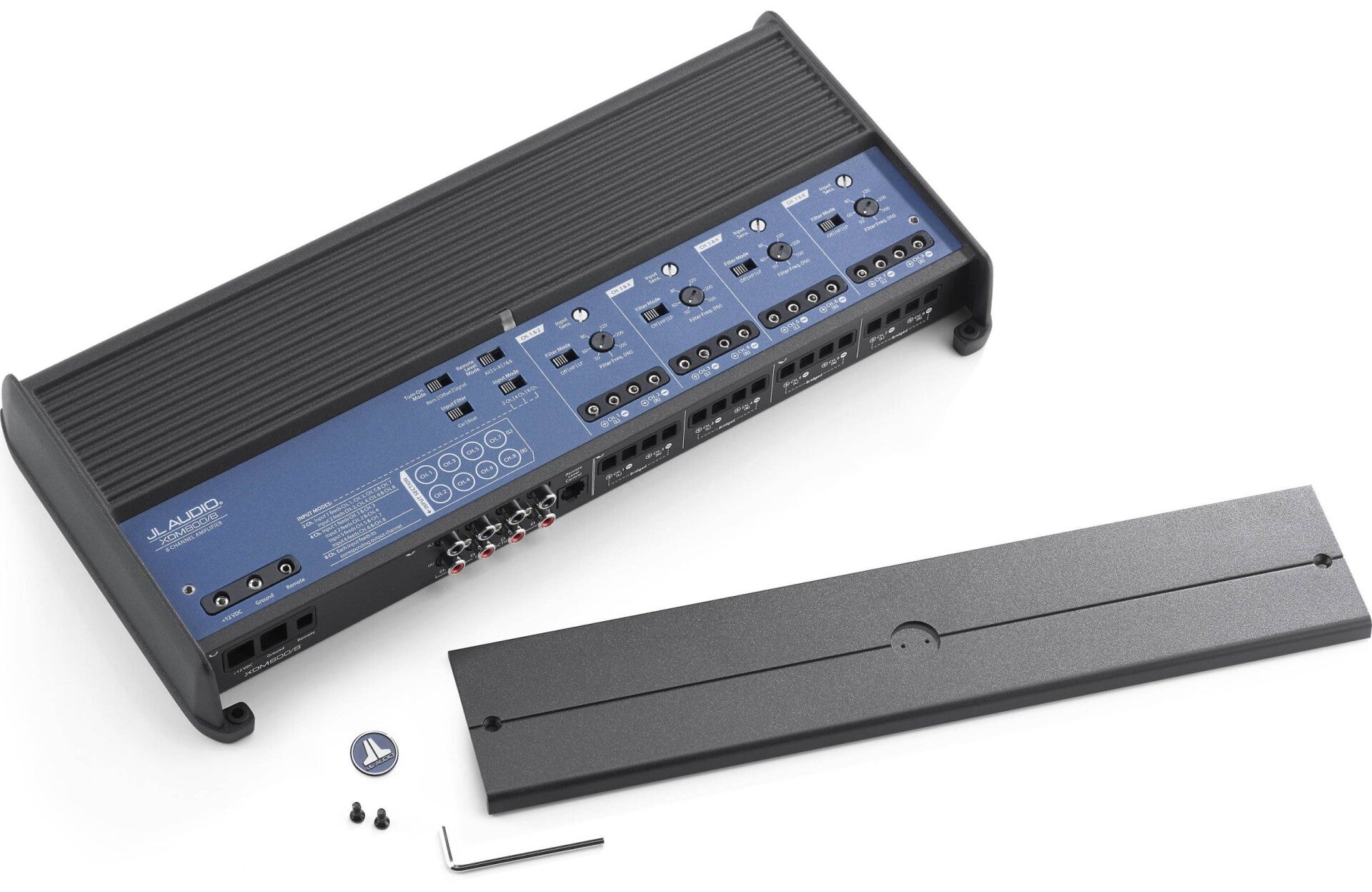

JL Audio XDM800/8V2 8 channel amplifier

JL Audio XDM800/8V2 8 channel amplifier
€1,099.00

JL Audio XDM800/8V2



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 8-channel class D marine broadband amplifier, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4 V
  • This incredibly flexible amplifier packs a serious full-range punch, delivering an astonishing 100 watts to each of its eight channels into 2 ohms (14.4V, 1% THD). The breakthrough that allows so much power in such a small package is our NexD Ultra High-Speed Switching Design™, which enables full-bandwidth Class-D operation with ultra-low distortion and outstanding efficiency.
  • The M800/8v2 features a 12 dB/octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers a stepless cut-off frequency selection from 50-500 Hz. The M800/8v2 also features the v2 specification function set, which consists of an auto power-on function (via signal detection or DC offset detection) and a differentially balanced dual-range input section that can handle a wide range of input voltage levels. With an additional HD-RLC remote control (sold separately), you have the ability to control the level of two, four or all eight channel levels of the amplifier from the driver's seat.

Service description

  • Frequency response 12 Hz - 22 kHz (+0, -1dB)
  • Signal-to-noise ratio, based on the highest rated power >104 dB below the rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Signal-to-noise ratio, relative to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω >150 / 50 Hz
  • Attenuation factor @ 2 Ω >75 / 50 Hz
  • THD+N @ Nennleistung <1% @ 2 Ω pro Kanal.
  • Input voltage range @ RCA inputs switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min. copper power / earthing wire Cross-section 4 AWG wire
  • Fuse 80 A (AFS, AGU or MaxiFuse™)

Rated continuous power (RMS) @ 14.4 V

  • @ 4 Ω 75 W RMS x 8
  • @ 2 Ω 100 W RMS x 8
  • Bridged @ 4Ω 200 W RMS x 4

Rated continuous power (RMS) @ 12.5 V

  • @ 4 Ω 60 W RMS x 8
  • @ 2 Ω 90 W RMS x 8
  • Bridged @ 4Ω 180 W RMS x 4

Signal processing

  • Filter mode(s): Low-pass or high-pass
  • Filter slope(s) 12 dB/octave
  • Filter frequency range 50 Hz - 500 Hz
  • Locked, calibrated filter frequency potentiometers Yes
  • Filter defeat function Yes
  • Optional remote control (HD-RLC)
  • Remote level modes 2 or 4 or all channels
  • Channel input mode switch Yes (2/4/6/8 channels)
  • Pass-through preamplifier output None
  • Selection of the source channel for PreOuts N/A

Dimensions

  • Height (H) 52 mm
  • Width (B) 374 mm
  • Depth (D) 180 mm
