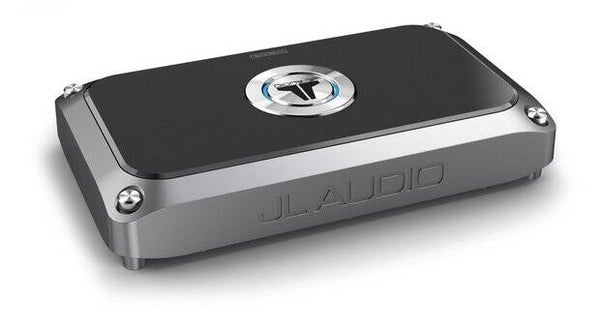

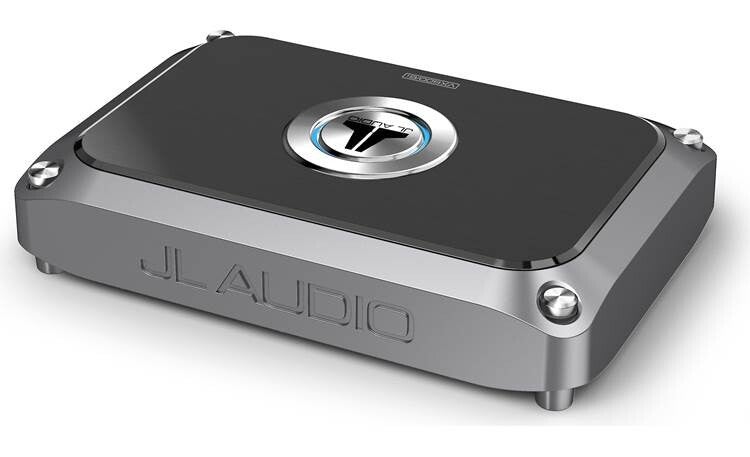

JL Audio VX800/8I 8 channel DSP amplifier

JL Audio VX800/8I 8 channel DSP amplifier
€1,699.00

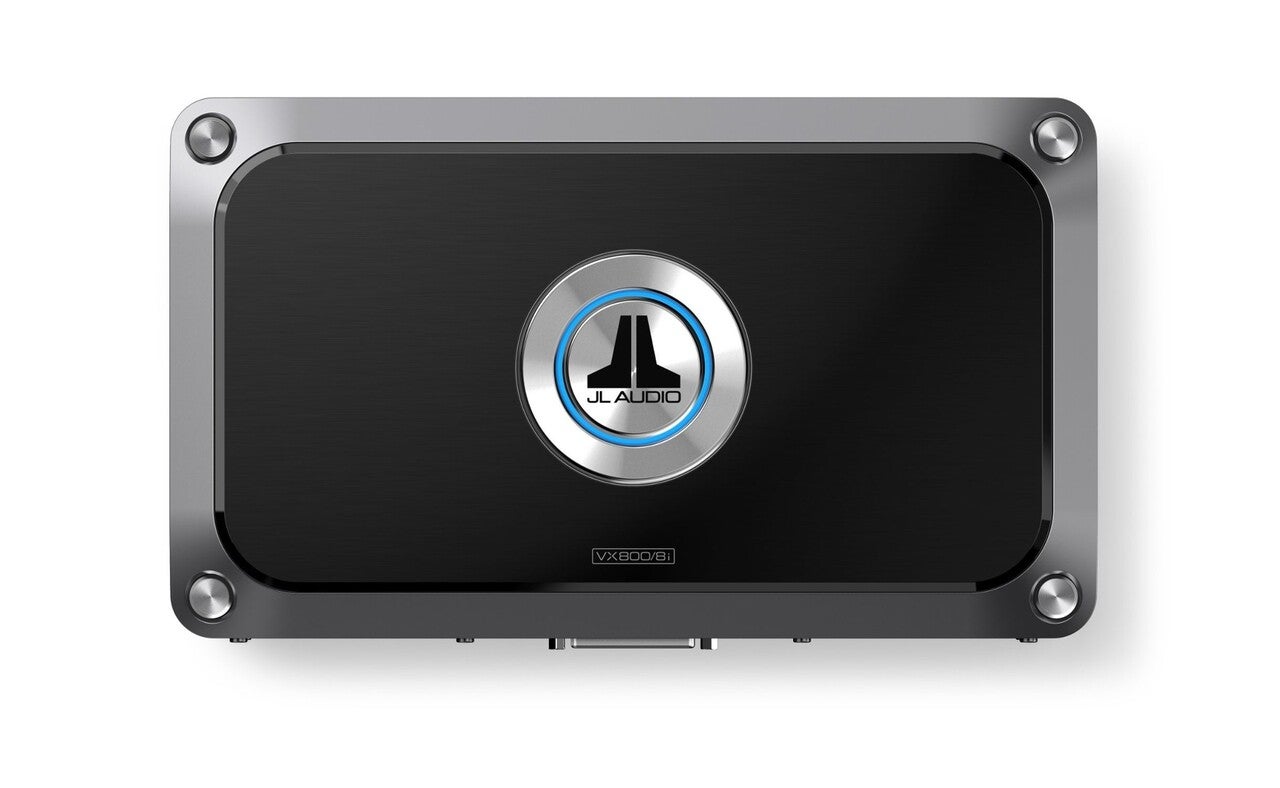

JL Audio VX800/8I



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • 8-channel full-range Class D amplifier with integrated DSP, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4V
  • Designed to simplify great audio reproduction, each VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
  • With JL's second generation NexD2™ technology, the VX800/8i full range amplifier outputs up to 75 watts per channel into 4 ohms or 100 watts into 2 ohms. It can also be bridged into 4 ohms to deliver a powerful 200 W x 4.
  • The NexD2™ full-range technology in this amplifier is DSP-driven and features a reduced loop area design that utilizes DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency.

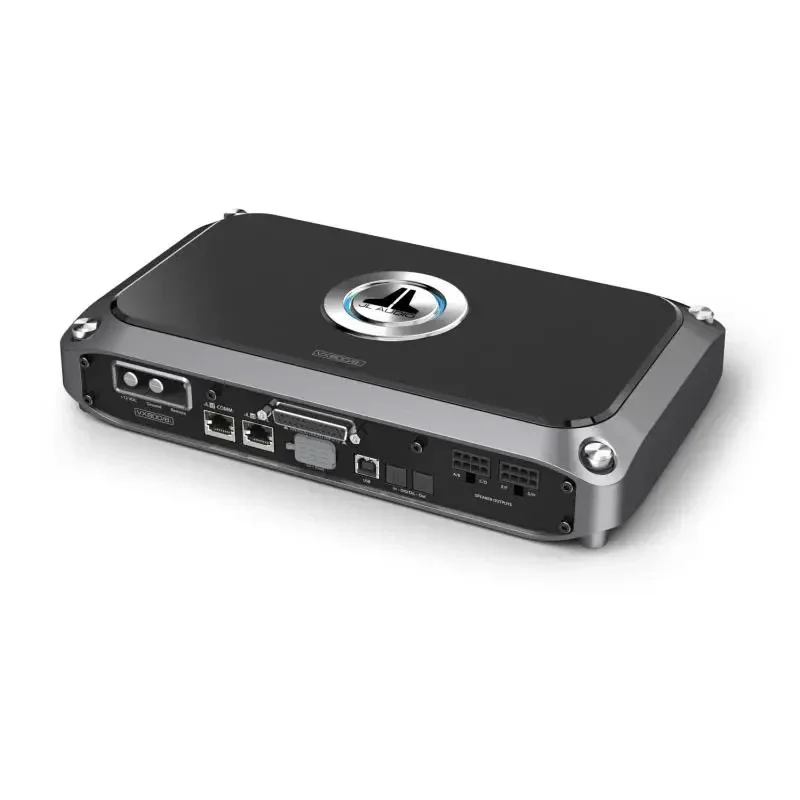

  • The amplifier chassis is ultra-compact, with all connections on one side, which considerably simplifies installation in confined spaces.
  • Instead of the traditional control knobs and switches, all amplifier settings and DSP functions are configured via a compatible external device (PC, tablet or smartphone) with the appropriate JL Audio TüN™ software application installed.

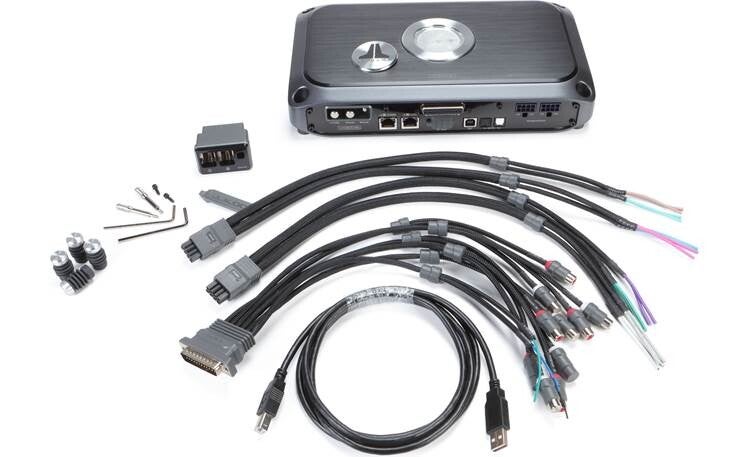

  • Amplifier included: power connection (for 35mm²), analog input/pre-output wiring harness, speaker output wiring harness (2x), 1.8m A/B USB cable

Continuous rated power (RMS) at 14.4 V

  • @ 4 Ω : 75 W RMS x 8
  • @ 2 Ω : 100 W RMS x 8
  • Bridged @ 4Ω : 200 W RMS x 4

Continuous rated power (RMS) at 12.5 V

  • @ 4 Ω : 60 W RMS x 8
  • @ 2 Ω : 90 W RMS x 8
  • Bridged @ 4Ω : 180 W RMS x 4

General specifications

  • Frequency response : 12 Hz - 24 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power (digital inputs) : 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >100 / 50 Hz
  • Attenuation factor @ 2 Ω : >50 / 50 Hz
  • THD+N @ Nennleistung : <1% @ 2 Ω pro Ch.
  • Input voltage range @ RCA inputs : 200 mV - 16 V RMS
  • Minimum cable diameter : 25mm³-35mm²
  • Fuse rating : 80 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 54 mm (2.12 inches)
  • Width (W): 287 mm (11.32 inches)
  • Depth (D) : 6.62 in / 168 mm
