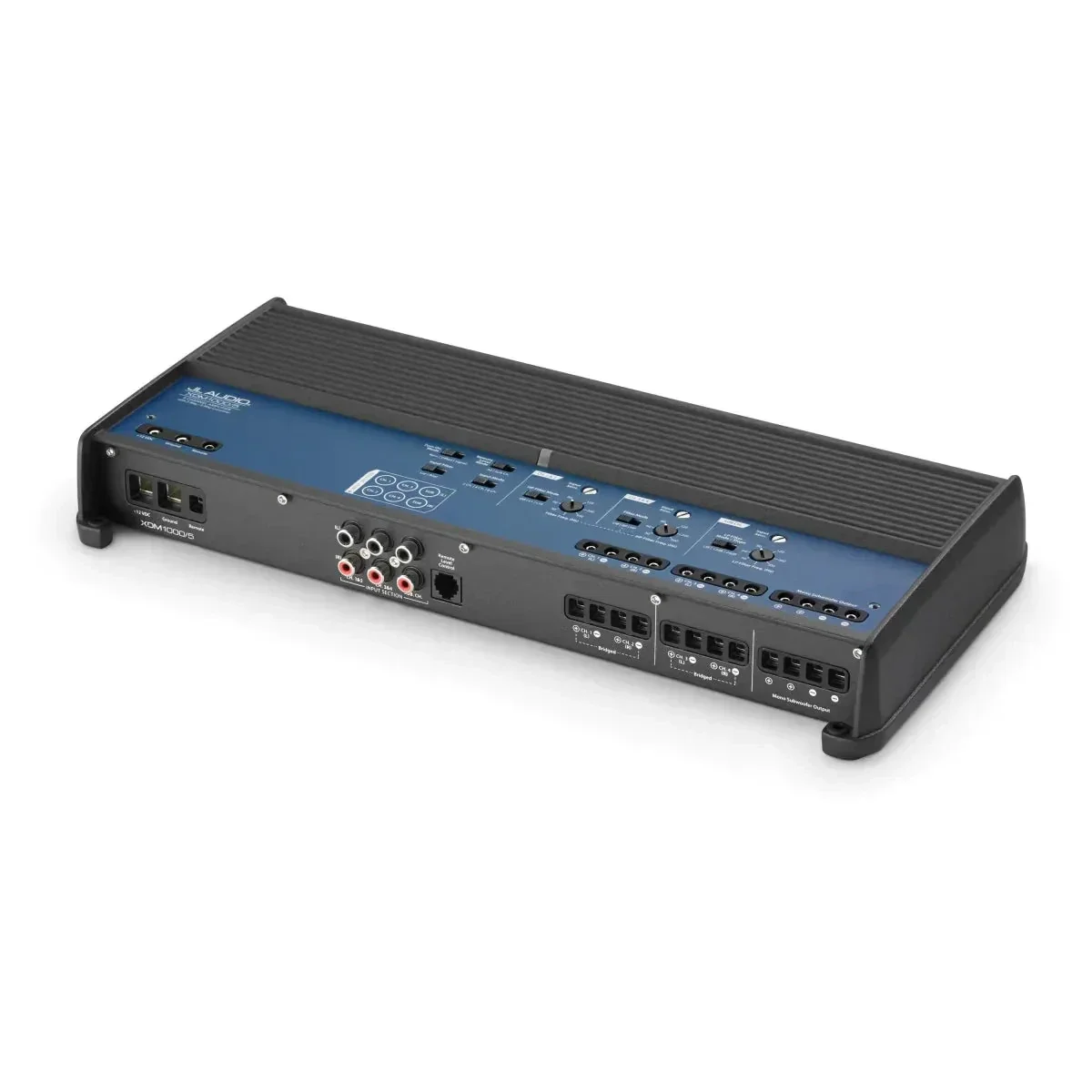

JL Audio XDM1000/5V2 5 channel amplifier

JL Audio XDM1000/5V2 5 channel amplifier
€1,299.00

JL Audio XDM1000/5V2



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 4 - 8 days extra delivery time

Productinfo:

  • 5-channel class D marine system amplifier, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4 V
  • Here is the perfect all-in-one solution to drive a powerful marine audio system with 4 speakers + two subwoofers. The M1000/5v2 delivers up to 1000W of clean power and can comfortably drive two pairs of high quality component speaker systems at 75W x 4 @ 4 Ω, while delivering a solid 600W of power to a dual subwoofer system. The breakthrough that makes so much power possible in such a small package is our NexD switching amplifier design™.
  • The M1000/5v2 includes a 12 dB/octave high pass filter for one main channel pair, a 12 dB octave high pass or band pass filter for the other main channel pair and a variable slope low pass filter for the subwoofer channel. All three filters offer infinitely variable cut-off frequency selection from 50-500 Hz. The filters of this amplifier can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a band-pass filter on channels 3 and 4 and a high-pass filter on channels 1 and 2. A "x10" multiplier switch on the high-pass filter of Ch. 1 & 2 allows the cut-off frequency to be set from 50-500 Hz or 500-5000 Hz.
  • With an additional HD-RLC remote control (sold separately), the subwoofer output level or the master volume of the amplifier for all channels can be controlled directly from the control desk. The M1000/5v2 also features the v2 specification function set, which consists of an auto power-on function (via signal detection or DC offset detection) and a differential balanced dual range input section capable of handling a wide range of input voltage levels.
  • This amplifier features a white and gray powder coat finish, a sealed cover for the controls and stainless steel hardware for long life in the marine environment.

Performance specification

  • Frequency response (main channels) 12 Hz - 22 kHz (+0, -1dB)
  • Frequency response (subwoofer channel) 10 Hz - 1 kHz (+0, -1dB)
  • Signal-to-noise ratio, relative to the highest rated power (main channels) >104 dB below the rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Signal-to-noise ratio, relative to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω >150 / 50 Hz
  • Attenuation factor @ 2 Ω >75 / 50 Hz
  • THD+N @ nominal power (main channels) <1% @ 2 Ω per channel.
  • THD+N @ rated power (subwoofer channels) <1% @ 2 Ω per channel.
  • Input voltage range @ RCA inputs switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min. copper power / earthing wire cross-section 25mm²
  • Fuse 80 A (AFS, AGU or MaxiFuse™)

Rated continuous power (RMS) @ 14.4 V

  • Main channels @ 4 Ω 75 W RMS x 4
  • Main channels @ 2 Ω 100 W RMS x 4
  • Main channels - bridged @ 4Ω 200 W RMS x 2
  • Subwoofer channel @ 4 Ω 400 W RMS x 1
  • Subwoofer channel @ 3 Ω 500 W RMS x 1
  • Subwoofer channel @ 2 Ω 600 W RMS x 1
  • Subwoofer channel @ 1.5 Ω N/A

Rated continuous power (RMS) @ 12.5 V

  • Main channels @ 4 Ω 60 W RMS x 4
  • Main channels @ 2 Ω 90 W RMS x 4
  • Main channels - bridged @ 4Ω 180 W RMS x 2
  • Subwoofer channel @ 4 Ω 360 W RMS x 1
  • Subwoofer channel @ 3 Ω 480 W RMS x 1
  • Subwoofer channel @ 2 Ω 600 W RMS x 1
  • Subwoofer channel @ 1.5 Ω N/A

Signal processing

  • Filter mode(s): Channels 1 &; 2 (front) High pass only
  • Filter slope(s): Channels 1 & 2 (front) 12 dB/octave
  • Filter frequency range: Channels 1 &; 2 (front) 50 Hz - 5 kHz
  • Filter mode(s): Channels 3 & 4 (rear) high-pass or band-pass
  • Filter slope(s): Channels 3 &; 4 (rear) 12 dB/octave
  • Filter frequency range: Channels 3 &; 4 50 Hz - 500 Hz
  • Filter mode(s): Subwoofer channel low-pass only
  • Filter slope(s): Subwoofer channel 12/24 dB/octave
  • Filter frequency range: Subwoofer channel 50 Hz - 500 Hz
  • Locked, calibrated filter frequency potentiometers Yes
  • Filter defeat function Yes
  • Infrasonic filter: Subwoofer channel none
  • Optional remote control (HD-RLC)
  • Remote level modes sub-channel or all channels
  • Channel input mode switch Yes (2/4/6 channels)
  • Pass-through preamplifier output None
  • Source channel selection for PreOuts N/A
