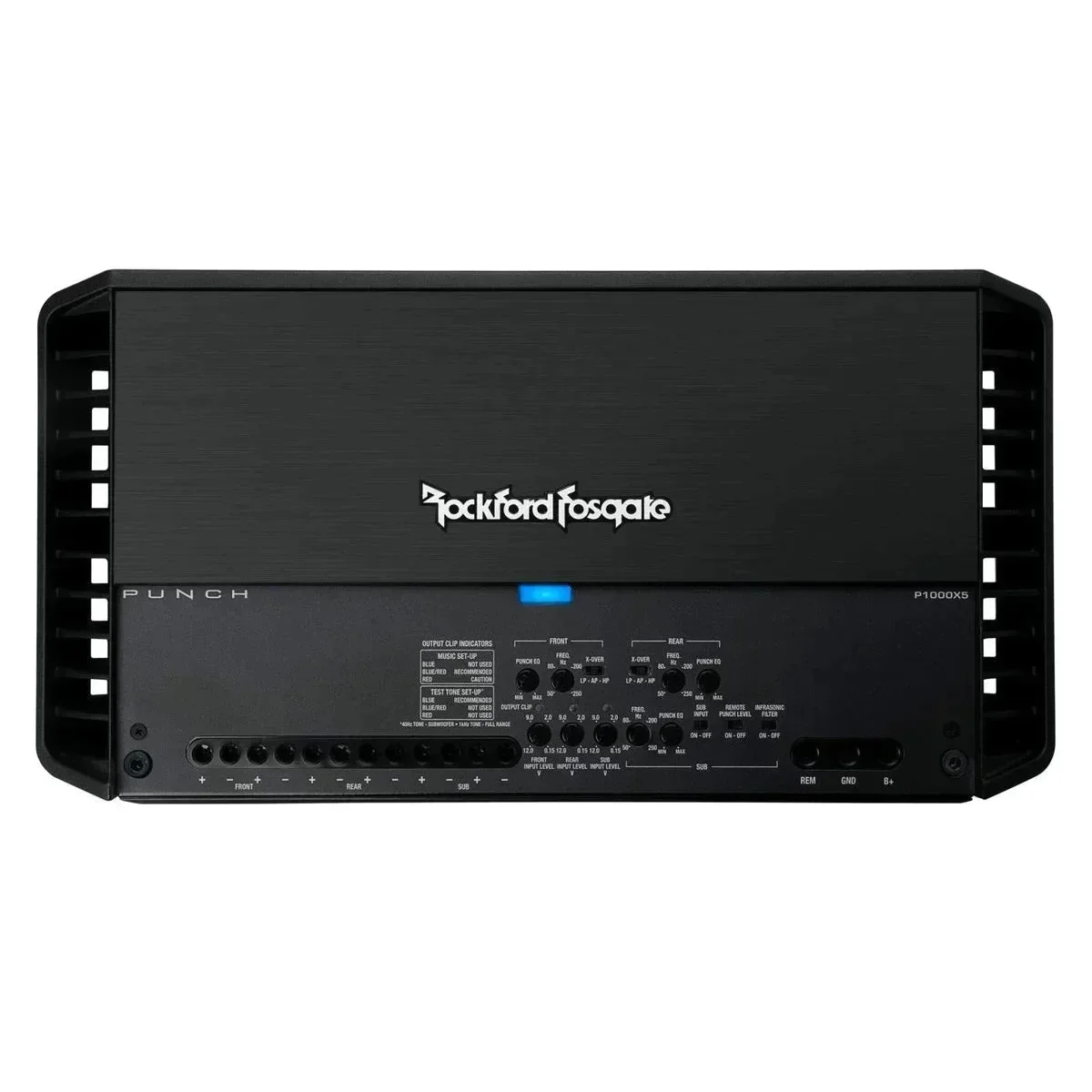

Rockford Fosgate Punch P1000X5 5 channel amplifier

Rockford Fosgate Punch P1000X5 5 channel amplifier
€799.00

Rockford Fosgate Punch P1000X5



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • High level input with auto turn-on circuitry.
  • Features C.L.E.A.N. setting
  • Built-in punch EQ with +18dB boost at 45Hz
  • 12dB/octave Butterworth crossover
  • Optional Punch Level Control Remote (PLC2) (with input clip-
  • display)
  • Mute on power up
  • Stealth control panel on the upper side
  • Short-circuit protection
  • Cast aluminum heat sink
  • Overcurrent protection
  • Infrasonic filter
  • 2/4 channel input switch

Specifications:

  • 5 channel amplifier
  • RMS power:
    • 75 watts x 4 + 150 watts x 1 @ 4-Ohm
    • 125 Watt x 4 + 300 Watt x 1 @ 2-Ohm
    • N/A + 500 watts @ 1-Ohm
  • Dynamic Power
    • 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms
    • 190 Watt x 4 + 540 Watt x 1 @ 2-Ohm
    • N/A + 863 watts x 1 @ 1-Ohm
  • Bridgeable : Yes (front/rear channels)
  • Frequency Response : Front/Rear: 20Hz - 20kHz +/-3dB
  • Subwoofer : 20Hz - 500Hz +/-3dB
  • Input sensitivity : 150 mV - 12 V
  • Circuit topology class : Class A/B + Class BD (Sub)
  • Efficiency (average) Front/Rear : 66%.
  • Efficiency (average) sub channel: 80%
  • Total harmonic distortion (THD+noise) : <1,0%
  • Signal input : Input switch: Hi/Low level input
  • Input switch : 2/4 channel input
  • High/low level : 3 RCA pairs
  • Sub: front/sub input switch
  • Tone control Sub: 0dB to +18dB @ 45Hz
  • Front: 50Hz - 250Hz high pass @ 12dB/octave
  • Rear: 50Hz - 250Hz high pass @ 12dB/octave
  • Sub: 50Hz - 250Hz low pass
  • Sub: 28Hz infrasonic filter @ 12dB/octave
  • Remotes: Optional Punch Level Control (PLC2) Ready
  • Visual indicators : Power/Protection/Thermal LED
  • Cable diameter : 20mm²
  • Speaker cable diameter : 6mm²
  • Cooling : convection
  • Operating voltage : 9 - 16 VDC
  • Recommended fuse 150 A
  • Average current consumption (13.8 V music): 75 A
  • Max. Current consumption (13.8 V sine): 150 A
  • Dimensions (H x W x D) 6.05 x 19.71 x 38.18 cm
