JL Audio XD700/5V2 5 channel amplifier

€799.00

JL Audio XD700/5V2



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 5-channel system amplifier Class D, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V
    The XD700/5v2 is ideal for a complete subwoofer + four-satellite system in audiophile quality and fits comfortably in almost any vehicle.
  • The breakthrough that makes so much power possible in such a small chassis is JL's NexD™ shifting design.

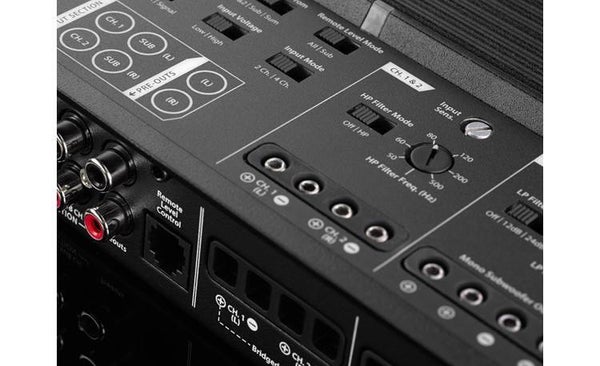

  • The XD700/5v2 contains a 12 dB/octave high-pass filter for one main channel pair, a 12 dB octave high-pass or band-pass filter for the other main channel pair and a low-pass filter with variable slope for the subwoofer channel. All three filters offer an infinitely variable cut-off frequency selection of 50-500 Hz.
  • The filters on this amplifier can also be configured as a true 3-way crossover, with a low pass filter for the subwoofer channel, a band pass filter on channels 3 & 4 and a high pass filter on channels 1 & 2. A "x10" multiplier switch on the high pass filter on channels 1 and 2 allows the cut-off frequency to be set from 50-500 Hz or 500-5000 Hz.
  • The XD700/5v2 also features the v2 Spec feature set, which consists of an auto power-on function (via signal sampling or DC offset sampling) and a dual-range differential balanced input section that can handle a wide range of input voltage levels.
  • With an additional HD-RLC remote control (sold separately), the level of the amplifier can be controlled directly from the driver's seat.
  • This amplifier has a black powder coating and a sealed, brushed aluminum cover for the controls.

Rated continuous power (RMS) at 14.4 V

  • Main channels @ 4 Ω : 75 W RMS x 4
  • Main channels @ 2 Ω : 100 W RMS x 4
  • Main channels - bridged @ 4Ω : 200 W RMS x 2
  • Subwoofer channel @ 4 Ω : 180 W RMS x 1
  • Subwoofer channel @ 3 Ω : 240 W RMS x 1
  • Subwoofer channel @ 2 Ω : 300 W RMS x 1

Rated continuous power (RMS) at 12.5 V

  • Main channels @ 4 Ω : 60 W RMS x 4
  • Main channels @ 2 Ω : 90 W RMS x 4
  • Main channels - bridged @ 4Ω : 180 W RMS x 2
  • Subwoofer channel @ 4 Ω : 180 W RMS x 1
  • Subwoofer channel @ 3 Ω : 240 W RMS x 1
  • Subwoofer channel @ 2 Ω : 300 W RMS x 1

General specifications

  • Frequency response (main channels) : 12 Hz - 22 kHz (+0, -1dB)
  • Frequency response (subwoofer channel) : 10 Hz - 1 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power (main channels) : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >150 / 50 Hz
  • Attenuation factor @ 2 Ω : >75 / 50 Hz
  • THD+N @ Nennleistung (Hauptkanäle) : <1% @ 2 Ω pro Ch.
  • THD+N @ Nennleistung (Subwoofer-Kanäle) : <1% @ 2 Ω pro Ch.
  • Input voltage range @ RCA inputs : switchable from 200 mV - 2 V RMS (low) to 800 mV - 8 V RMS (high)
  • Minimum cable diameter 25mm²
  • Fuse rating : 60 A (AFS, AGU or MaxiFuse™)

Signal processing

  • Filter mode: Channels 1 & 2 (front) : high-pass only
  • Boost filters: Channels 1 & 2 (front) : 12 dB/octave
  • Filter frequency range: Channels 1 & 2 (front) : 50 Hz - 5 kHz
  • Filter mode: Channels 3 & 4 (rear) : High pass or band pass
  • Filter slope: Channels 3 & 4 (rear) : 12 dB/octave
  • Filter frequency range: Channels 3 & 4 : 50 Hz - 500 Hz
  • Filter mode: Subwoofer channel : Low-pass only
  • Filter slope: Subwoofer channel : 12/24 dB/octave
  • Filter frequency range: Subwoofer channel : 50 Hz - 500 Hz
  • Calibrated filter freq. potentiometer : Yes
  • Filter defeat function : Yes
  • Subsonic filter: Subwoofer channel : none
  • Remote control : Optional (HD-RLC)
  • Channel input mode switch : Yes (2/4/6 channel)
  • Pass-through preamplifier output : None

Dimensions

  • Height (H) :2.05 in / 52 mm
  • Width (W) : 260 mm (10.23 inches)
  • Depth (D) : 180 mm (7.09 inches)
