JL Audio XD300/1V2 Monoblock amplifier

JL Audio XD300/1V2 Monoblock amplifier
€479.00

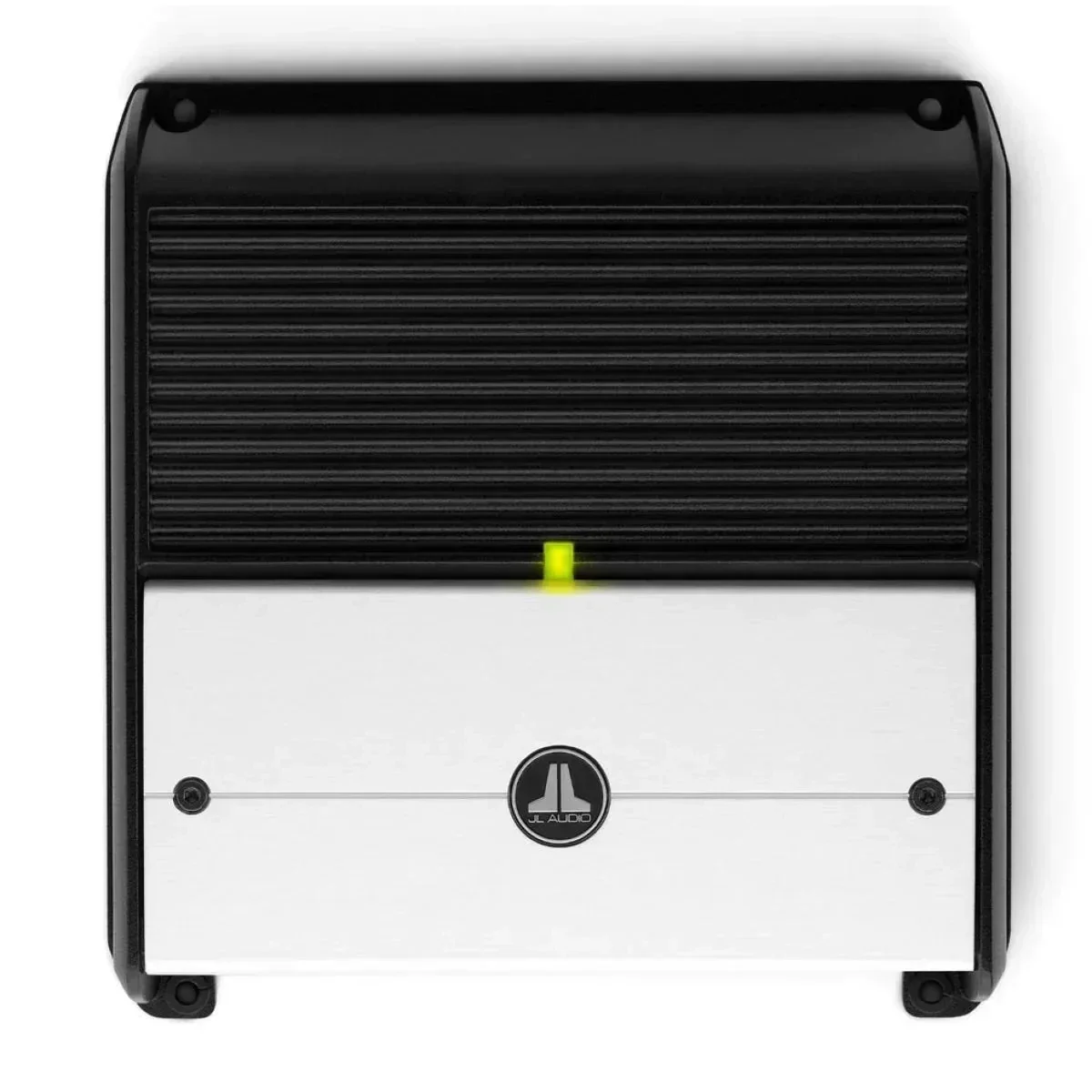

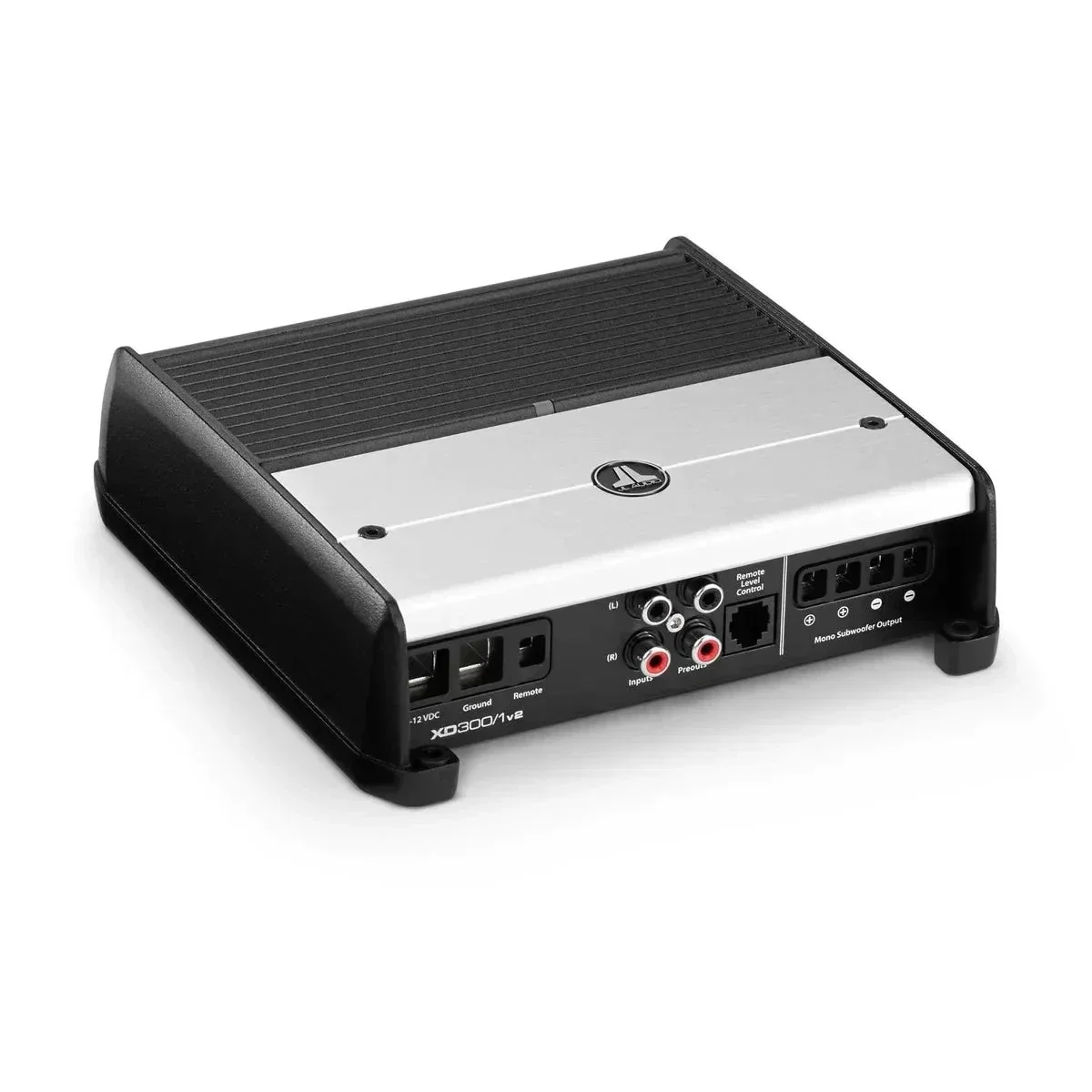

JL Audio XD300/1V2



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • Monoblock subwoofer amplifier in Class D, 300 W x 1 @ 2 Ω / 200 W x 1 @ 4 Ω - 14.4V
  • This ultra-compact monoblock amplifier uses JL's high-speed switching design NexD™ to achieve unprecedented efficiency and amazing output power for its size.
  • Designed specifically for subwoofer applications, the XD300/1v2 incorporates a variable slope low pass filter with continuously adjustable cut-off frequency from 50 to 500 Hz.
  • The XD300/1v2 also features the v2 Spec feature set, which consists of an auto power-on function (via signal sampling or DC offset sampling) and a dual-range differential balanced input section that can handle a wide range of input voltage levels.
  • With an additional HD-RLC remote control (sold separately), the level of the amplifier can be controlled directly from the driver's seat.
  • This amplifier features a black powder-coated finish and a sealed, brushed aluminum cover for the controls.

Rated continuous power (RMS) at 14.4 V

  • @ 4 Ω : 200 W RMS x 1
  • @ 3 Ω : 250 W RMS x 1
  • @ 2 Ω : 300 W RMS x 1

Rated continuous power (RMS) at 12.5 V

  • @ 4 Ω : 160 W RMS x 1
  • @ 3 Ω : 210 W RMS x 1
  • @ 2 Ω : 270 W RMS x 1

General specifications

  • Frequency response : 10 Hz - 1 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power : >100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >120 / 50 Hz
  • Attenuation factor @ 2 Ω : >60 / 50 Hz
  • THD+N @ rated power : <1% @ 2 Ω per Ch.
  • Input voltage range @ RCA inputs : switchable from 200 mV - 2 V RMS (low) to 800 mV - 8 V RMS (high)
  • Minimum cable diameter : 10mm²
  • Fuse rating : 30 A (AFS, AGU or MaxiFuse™)

Signal processing

  • Filter mode : Low pass only
  • Filter slope : 12/24 dB/octave
  • Filter frequency range : 50 Hz - 500 Hz
  • Calibrated filter freq. potentiometer : Yes
  • Filter defeat function : Yes
  • Subsonic filter : None
  • Bass Boost EQ : No
  • Output polarity switch : No
  • Remote subwoofer level control : Optional (HD-RLC)
  • Pass-through preamp output : Buffered
