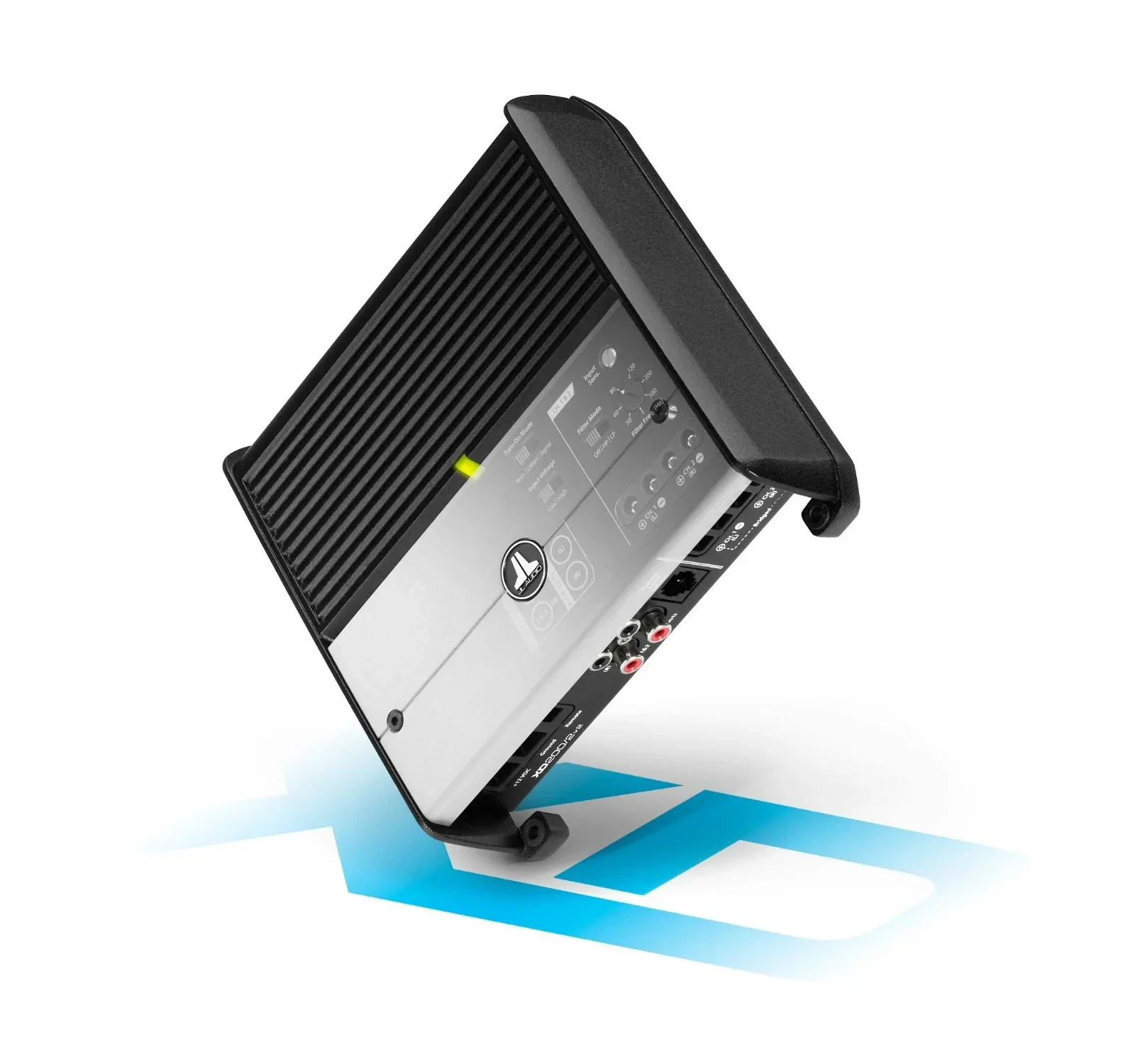

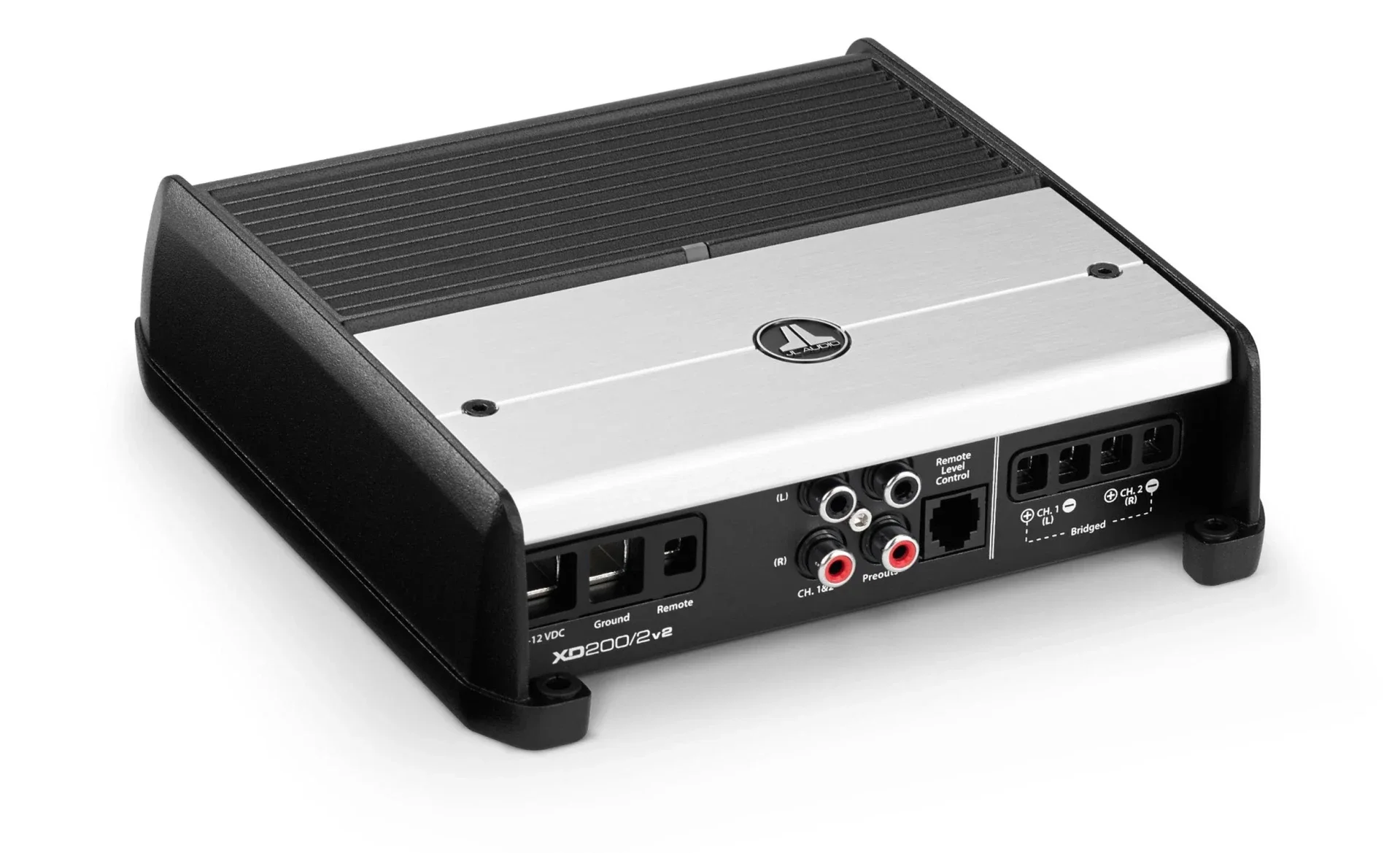

JL Audio XD200/2V2 2 channel / mono amplifier

JL Audio XD200/2V2 2 channel / mono amplifier
€479.00

JL Audio XD200/2V2



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 2-channel full-range amplifier in Class D, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V
  • This tiny amplifier offers serious full-range power and delivers an amazing 100 watts per channel into 2 ohms (14.4 V, 1% distortion).
  • The breakthrough that makes so much power possible in such a small package is JL's NexD™ ultra-high-speed switching design, which enables Class D operation across the entire bandwidth with extremely low distortion and outstanding efficiency.
  • The XD200/2v2 contains a 12 dB/octave filter that can be configured as a low-pass or high-pass filter and offers a stepless selection of the cut-off frequency from 50-500 Hz.
  • The XD200/2v2 also features the v2 Spec feature set, which consists of an auto power-on function (via signal sampling or DC offset sampling) and a dual-range differential balanced input section that can handle a wide range of input voltage levels.
  • With an additional HD-RLC remote control (sold separately), the level of the amplifier can be controlled directly from the driver's seat.
  • This amplifier has a black powder coating and a sealed, brushed aluminum cover for the controls.

Rated continuous power (RMS) at 14.4 V

  • @ 4 Ω : 75 W RMS x 2
  • @ 2 Ω : 100 W RMS x 2
  • Bridged @ 4Ω : 200 W RMS x 1

Rated continuous power (RMS) at 12.5 V

  • @ 4 Ω : 60 W RMS x 2
  • @ 2 Ω : 90 W RMS x 2
  • Bridged @ 4Ω : 180 W RMS x 1

General specifications

  • Frequency response : 12 Hz - 22 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power : >104 dB below the rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >150 / 50 Hz
  • Attenuation factor @ 2 Ω : >75 / 50 Hz
  • THD+N @ Nennleistung : <1% @ 2 Ω pro Ch.
  • Input voltage range @ RCA inputs : switchable from 200 mV - 2 V RMS (low) to 800 mV - 8 V RMS (high)
  • Minimum cable diameter : 10mm²
  • Fuse rating : 20 A (AFS, AGU or MaxiFuse™)

Signal processing

  • Filter mode : Low-pass or high-pass
  • Filter slope : 12 dB/octave
  • Filter frequency range : 50 Hz - 500 Hz
  • Calibrated filter freq. potentiometer : Yes
  • Filter defeat function : Yes
  • Remote control : Optional (HD-RLC)
  • Pass-through preamplifier output : buffered

Dimensions

  • Height (H): 52 mm (2.05 inches)
  • Width (W): 174 mm (6.85 inches)
  • Depth (D) : 180 mm (7.09 inches)
