JL Audio XD1000/5V2 5 channel amplifier

JL Audio XD1000/5V2

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2-3 days extra days

Productinfo:

• 5-channel system amplifier in Class D, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
• The XD1000/5v2 delivers up to 1000 W of clean power and is ideal for an audiophile subwoofer + four-satellite system.
• The breakthrough that makes so much power possible in such a small chassis is JL's NexD™ switching amplifier design.

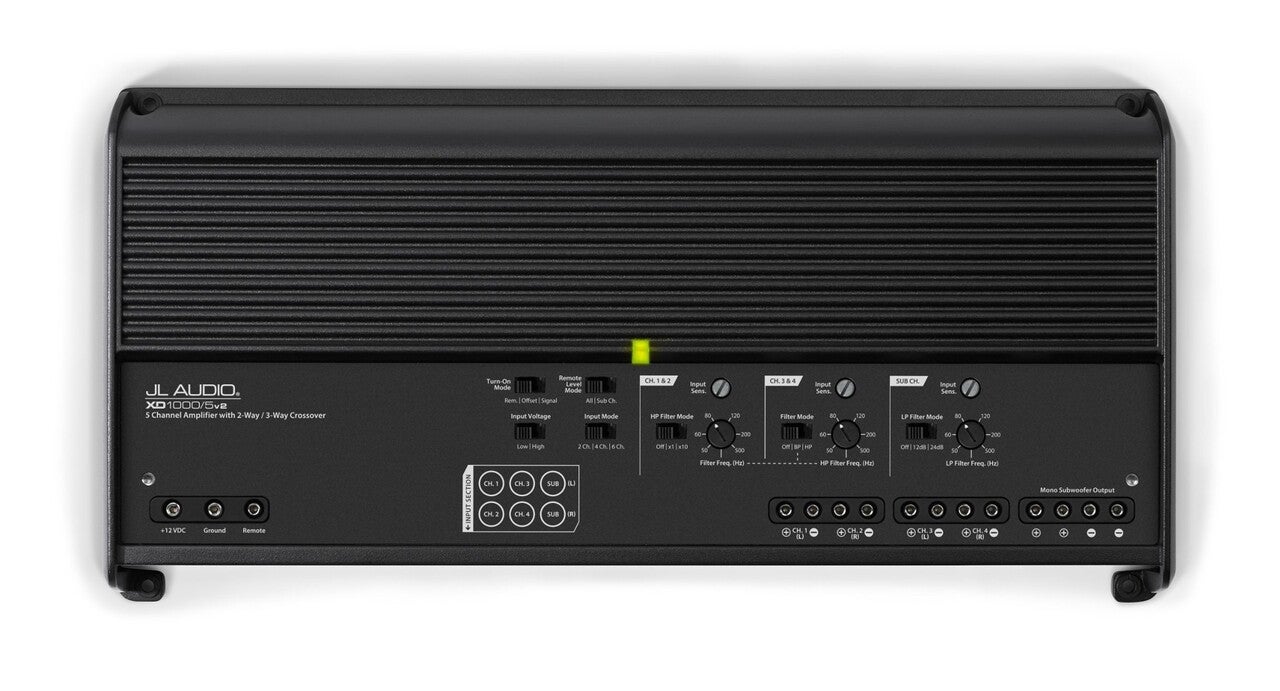

• The XD1000/5v2 contains a 12 dB/octave high-pass filter for one main channel pair, a 12 dB octave high-pass or band-pass filter for the other main channel pair and a low-pass filter with variable slope for the subwoofer channel. All three filters offer infinitely variable cut-off frequency selection from 50-500 Hz. The filters of this amplifier can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a band-pass filter on ch. 3 & 4 and a high-pass filter on ch. 1 & 2. A "x10" multiplier switch on the high-pass filters of channels 1 and 2 allows the cut-off frequency to be set from 50-500 Hz or 500-5000 Hz.
• The XD1000/5v2 also features the v2 Spec feature set, which consists of an auto power-on function (via signal sampling or DC offset sampling) and a dual-range differential balanced input section that can handle a wide range of input voltage levels.
• With an additional HD-RLC remote control (sold separately), the level of the amplifier can be controlled directly from the driver's seat.

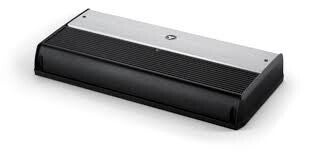

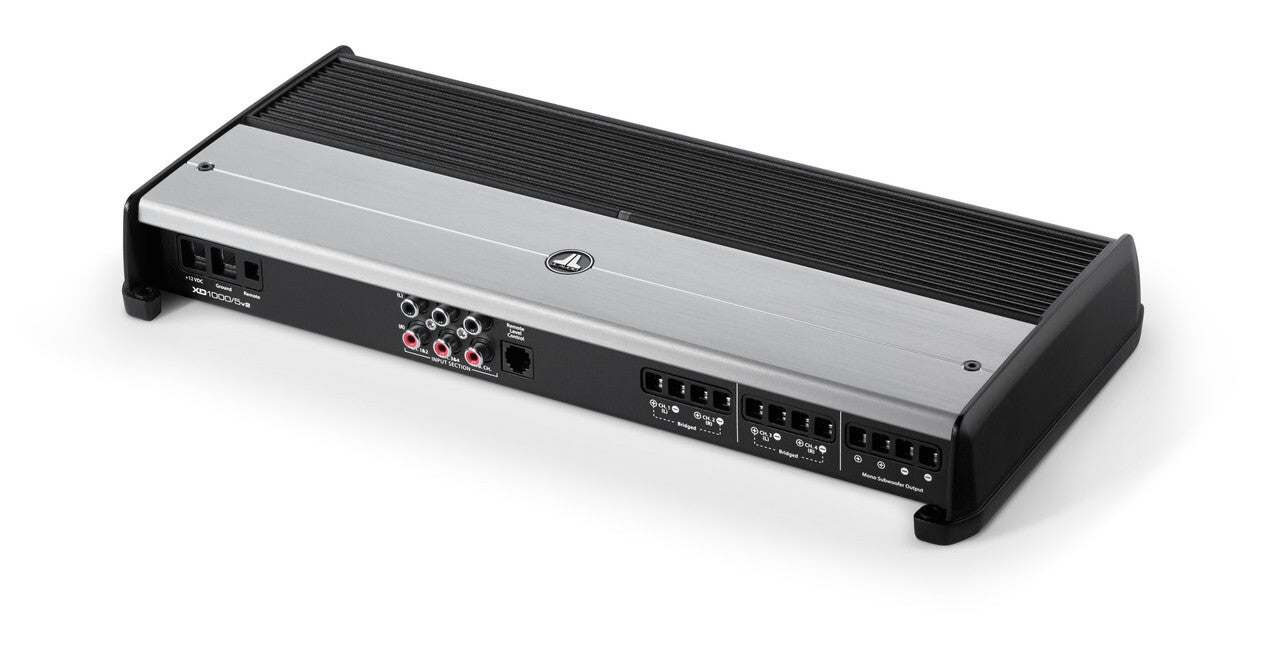

• This amplifier has a black powder coating and a sealed, brushed aluminum cover for the controls.

Rated continuous power (RMS) at 14.4 V

• Main channels @ 4 Ω : 75 W RMS x 4
• Main channels @ 2 Ω : 100 W RMS x 4
• Main channels - bridged @ 4Ω : 200 W RMS x 2
• Subwoofer channel @ 4 Ω : 400 W RMS x 1
• Subwoofer channel @ 3 Ω : 500 W RMS x 1
• Subwoofer channel @ 2 Ω : 600 W RMS x 1
• Subwoofer channel @ 1.5 Ω : N/A

Rated continuous power (RMS) at 12.5 V

• Main channels @ 4 Ω : 60 W RMS x 4
• Main channels @ 2 Ω : 90 W RMS x 4
• Main channels - bridged @ 4Ω : 180 W RMS x 2
• Subwoofer channel @ 4 Ω : 360 W RMS x 1
• Subwoofer channel @ 3 Ω : 480 W RMS x 1
• Subwoofer channel @ 2 Ω : 600 W RMS x 1
• Subwoofer channel @ 1.5 Ω : N/A

General specifications

• Frequency response (main channels) : 12 Hz - 22 kHz (+0, -1dB)
• Frequency response (subwoofer channel) : 10 Hz - 1 kHz (+0, -1dB)
• S/N ratio, relative to the highest rated power (main channels) : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Attenuation factor @ 4 Ω : >150 / 50 Hz
• Attenuation factor @ 2 Ω : >75 / 50 Hz
• THD+N @ Nennleistung (Hauptkanäle) : <1% @ 2 Ω pro Ch.
• THD+N @ Nennleistung (Subwoofer-Kanäle) : <1% @ 2 Ω pro Ch.
• Input voltage range @ RCA inputs : switchable from 200 mV - 2 V RMS (low) to 800 mV - 8 V RMS (high)
• Minimum cable diameter 25mm²
• Fuse rating : 80 A (AFS, AGU or MaxiFuse™)

Signal processing

• Filter mode: Channels 1 & 2 (front) : high-pass only
• Filter slope: Channels 1 & 2 (front) : 12 dB/octave
• Filter frequency range: Channels 1 & 2 (front) : 50 Hz - 5 kHz
• Filter mode: Channels 3 & 4 (rear) : High pass or band pass
• Filter slope: Channels 3 & 4 (rear) : 12 dB/octave
• Filter frequency range: Channels 3 & 4 : 50 Hz - 500 Hz
• Filter mode: Subwoofer channel : Low-pass only
• Filter slope: Subwoofer channel : 12/24 dB/octave
• Filter frequency range: Subwoofer channel : 50 Hz - 500 Hz
• Calibrated filter freq. potentiometer : Yes
• Filter defeat function : Yes
• Subsonic filter: Subwoofer channel : none
• Remote control : Optional (HD-RLC)
• Channel input mode switch : Yes (2/4/6 channel)
• Pass-through preamplifier output : None

Dimensions

• Height (H): 52 mm (2.05 inches)
• Width (W) :14.73 in / 374 mm
• Depth (D) : 180 mm (7.09 inches)
