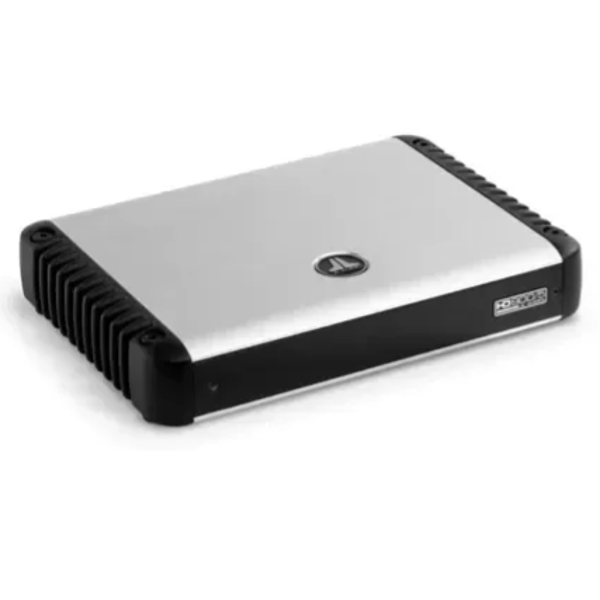

JL Audio HD900/5 5 channel amplifier

JL Audio HD900/5 5 channel amplifier
€1,599.00

JL Audio HD900/5



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 5-channel system amplifier Class D, 100 W x 4 + 500 W x 1
  • Thanks to its ability to function as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the primary objective.
  • Utilizing our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100W x 4 to its four main channels and an additional very powerful 500W to its subwoofer channel.
  • Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion low and maximizes sound quality.
  • This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and a base plate.
  • A black powder-coated, sealed cover is also provided to protect the controls.

Rated continuous power (RMS) at 14.4 V

  • Main Channels @ 4 Ω : 100 W RMS x 4
  • Main Channels @ 3 Ω : 75 W RMS x 4
  • Main Channels @ 2 Ω : 75 W RMS x 4
  • Main Channels @ 1.5 Ω : 75 W RMS x 4
  • Main Channels - Bridged @ 8 Ω : 200 W RMS x 2
  • Main Channels - Bridged @ 4 Ω : 150 W RMS x 2
  • Subwoofer Channel @ 4 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 3 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 2 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω : 500 W RMS x 1

Rated continuous power (RMS) at 12.5 V

  • Main Channels @ 4 Ω : 100 W RMS x 4
  • Main Channels @ 3 Ω : 75 W RMS x 4
  • Main Channels @ 2 Ω : 75 W RMS x 4
  • Main Channels @ 1.5 Ω : 75 W RMS x 4
  • Main Channels - Bridged @ 8 Ω : 200 W RMS x 2
  • Main Channels - Bridged @ 4 Ω : 150 W RMS x 2
  • Subwoofer Channel @ 4 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 3 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 2 Ω : 500 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω : 500 W RMS x 1

General specifications

  • Frequency response (main channels) : 12 Hz - 28 kHz (+0, -1dB)
  • Frequency response (subwoofer channel) : 12 Hz - 10 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power (main channels) : >108.5 dB below the rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >400 / 50 Hz
  • Attenuation factor @ 2 Ω : >200 / 50 Hz
  • THD+N @ Nennleistung (Hauptkanäle) : <0,03% @ 4 Ω
  • THD+N @ Nennleistung (Subwoofer-Kanal) : <0,05% @ 4 Ω
  • Input voltage range @ RCA inputs : Switchable from 200 mV - 2 V
  • RMS (low) to 800 mV - 8 V RMS (high)
  • Minimum cable diameter for copper power/earthing wire : Suitable for
  • up to 25mm²
  • Fuse rating : 60 A (AFS, AGU or MaxiFuse™)

Signal processing

  • Filter mode: Channels 1 & 2 (front) : high-pass only
  • Filter slope: Channels 1 & 2 (front) : 12/24 dB/octave
  • Filter frequency range: Channels 1 & 2 (front) : 50 Hz - 500 Hz
  • Filter mode: Channels 3 & 4 (rear) : High pass only
  • Filter slope: Channels 3 & 4 (rear) : 12/24 dB/octave
  • Filter frequency range: Channels 3 & 4 : 50 Hz - 500 Hz
  • Filter mode: Subwoofer channel : Low-pass only
  • Filter slope: Subwoofer channel : 12/24 dB/octave
  • Filter frequency range: Subwoofer channel : 50 Hz - 500 Hz
  • Calibrated filter freq. potentiometer : Yes
  • Filter defeat function : Yes
  • Subsonic filter: Subwoofer channel : 30 Hz
  • Remote control : Optional (HD-RLC)
  • Channel input mode switch : Yes (2/4/6 channel)
  • Pass-through preamplifier output : None

Dimensions

  • Height (H) : 1.93 in / 49 mm
  • Width (W) : 273 mm (10.74 inches)
  • Depth (D) : 211 mm (8.29 inches)
