JL Audio HD600/4 4 channel amplifier
€1,199.00
JL Audio HD600/4
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo
- 4-channel full-range amplifier Class D, 150 W x 4 @ 1.5-4 Ω

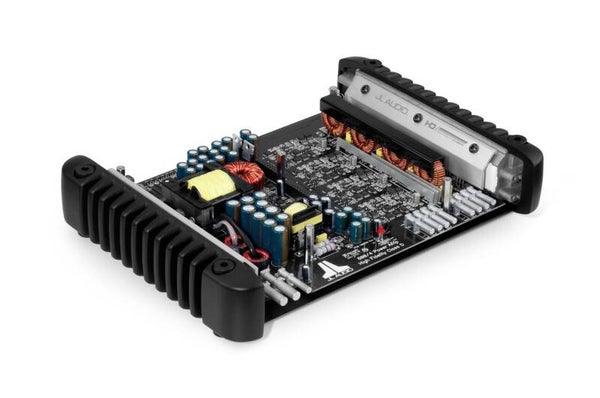

- This compact multi-channel powerhouse utilizes JL's single cycle control switching design and R.I.P.S. technology to deliver 150W x 4 or 300W x 2. Tight regulation of the power supply keeps distortion to a minimum and maximizes sound quality.

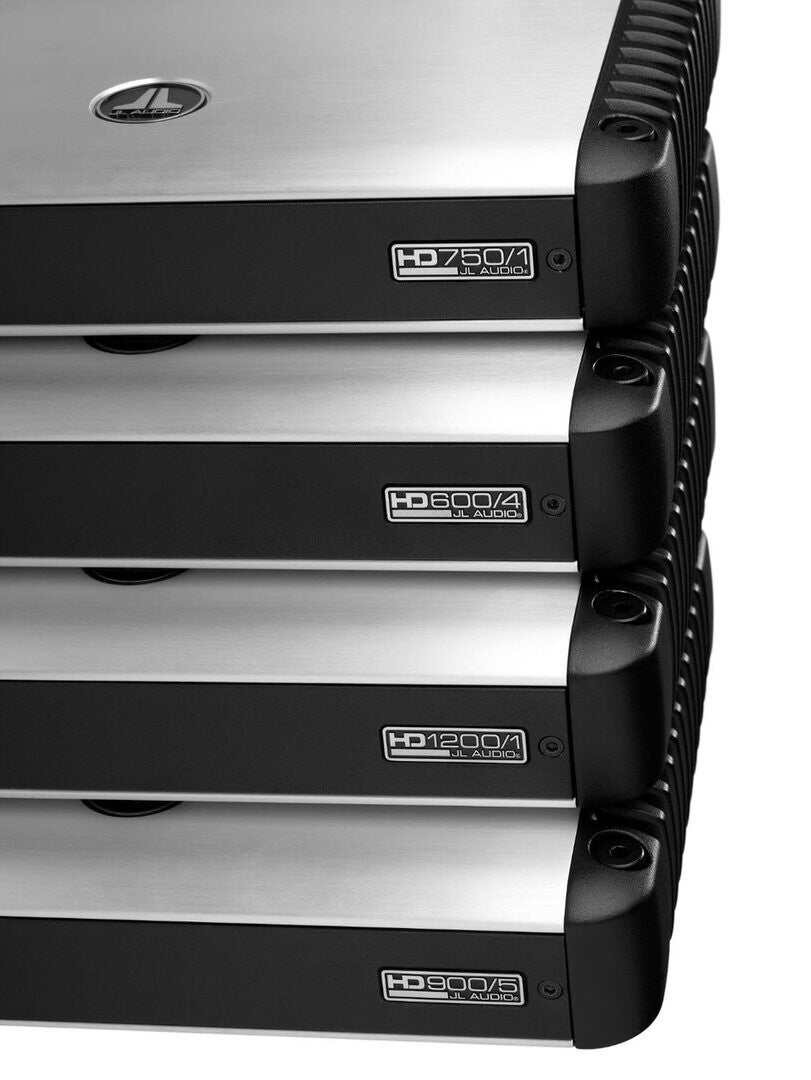

- If you use the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering enormous dynamics with unadulterated resolution.
- It can also be used on its own as a very powerful 3-channel system amplifier with 150 W x 2 for the satellites and 300 W x 1 for a subwoofer system.

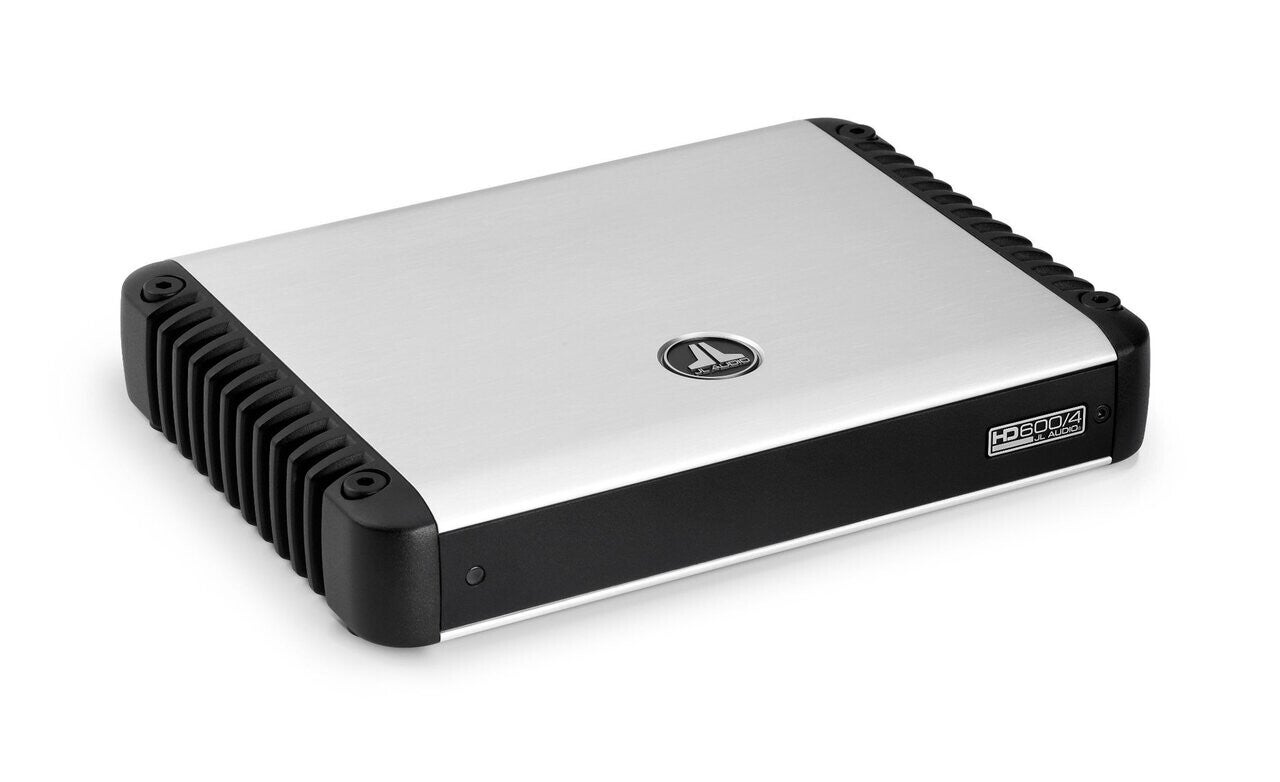

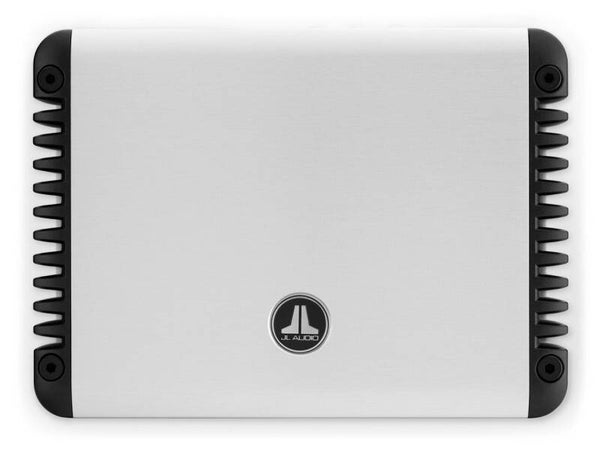

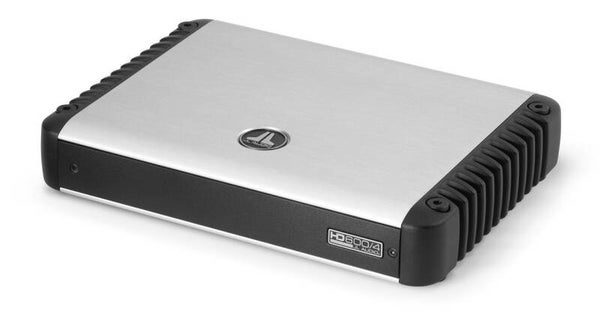

- This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and a bottom plate. A black powder-coated, sealed cover is also provided to protect the controls.
Rated continuous power (RMS) at 14.4 V
- @ 4 Ω : 150 W RMS x 4
- @ 3 Ω : 150 W RMS x 4
- @ 2 Ω : 150 W RMS x 4
- @ 1.5 Ω : 150 W RMS x 4
- Bridged @ 8 Ω : 300 W RMS x 2
- Bridged @ 4 Ω : 300 W RMS x 2
Rated continuous power (RMS) at 12.5 V
- @ 4 Ω : 150 W RMS x 4
- @ 3 Ω : 150 W RMS x 4
- @ 2 Ω : 150 W RMS x 4
- @ 1.5 Ω : 150 W RMS x 4
- Bridged @ 8 Ω : 300 W RMS x 2
- Bridged @ 4 Ω : 300 W RMS x 2
General specifications
- Frequency response : 6 Hz - 30 kHz (+0, -1dB)
- S/N ratio, relative to the highest rated power : >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Attenuation factor @ 4 Ω : >300 / 50 Hz
- Attenuation factor @ 2 Ω : >150 / 50 Hz
- THD+N @ Nennleistung : <0,03% @ 4 Ω pro Ch.

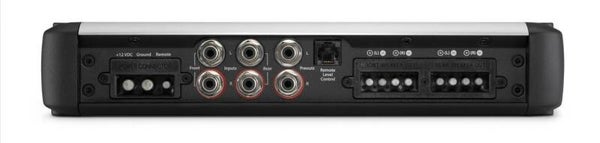

- Input voltage range @ RCA inputs : switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
- Minimum cable diameter for copper power/earthing wire : 25mm²
- Fuse rating : 50 A (AFS, AGU or MaxiFuse™)

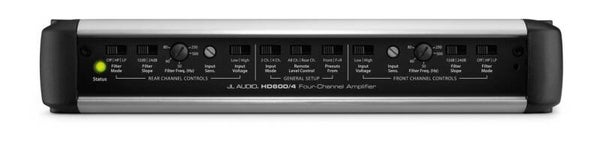

Signal processing
- Filter operating mode(s) : Low-pass or high-pass
- Filter slope(s) : 12/24 dB/octave
- Filter frequency range : 50 Hz - 500 Hz
- Calibrated filter freq. potentiometer : Yes
- Filter defeat function : Yes
- Remote control : Optional (HD-RLC)
- Channel input mode switch : Yes (2/4 channel)
- Pass-through preamplifier output : buffered
- Selection of the source channel for PreOuts : Yes
Dimensions
- Height (H) : 1.93 in / 49 mm
- Width (W) : 273 mm (10.74 inches)
- Depth (D) : 211 mm (8.29 inches)
