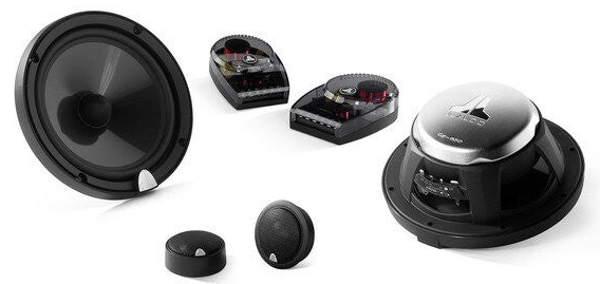

JL Audio C3-650 6.5-inch (165 mm) convertible component/coaxial system

JL Audio C3-650 6.5-inch (165 mm) convertible component/coaxial system
€549.00

JL Audio C3-650



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

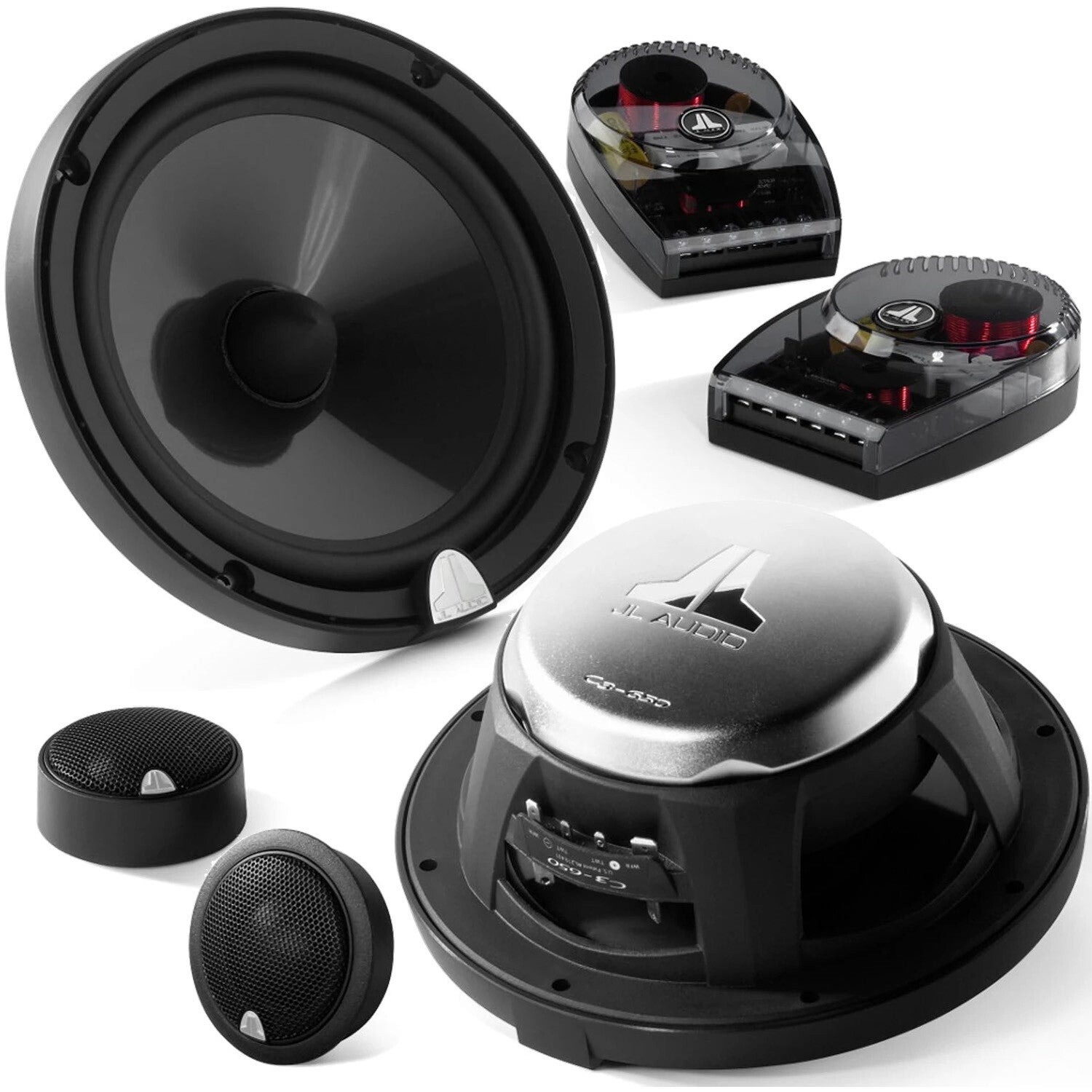

  • 2-way convertible component/coaxial system consisting of 6.5-inch (165 mm) bass/midrange driver and 1-inch (25 mm) silk dome tweeter

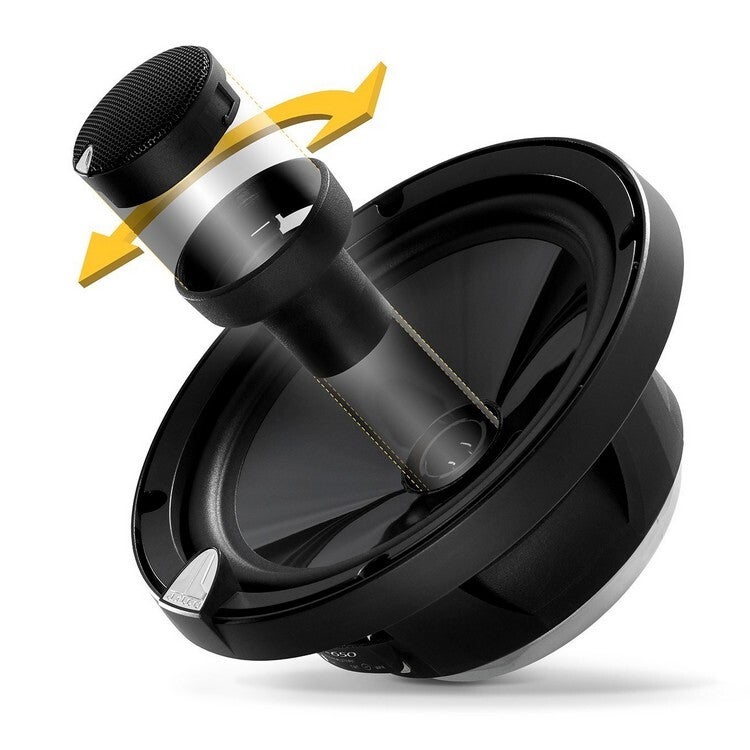

  • There are times when an installation requires a separate woofer and tweeter, and others when a coaxial speaker is the better solution. With the Evolution® C3 Convertible Component systems, the same product can be used in both configurations and deliver outstanding audio performance and quality in any application.

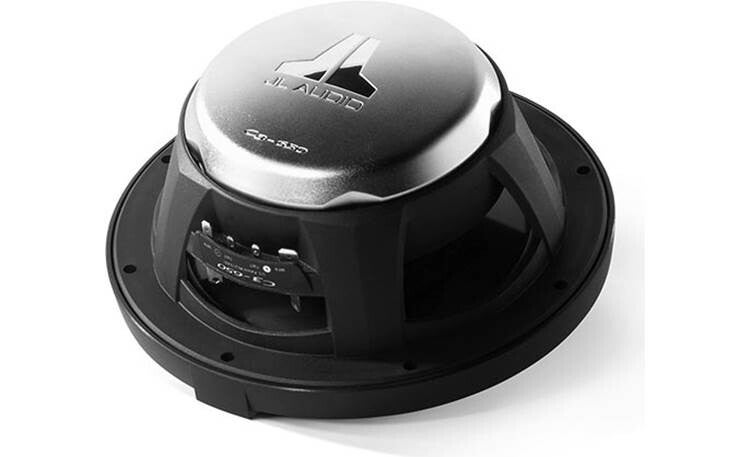

  • The C3-650 system includes 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.
  • The C3 tweeters are built with 1-inch silk dome cones that deliver a powerful, extended on- and off-axis response.
  • In-wall and on-wall mounting hardware is included to accommodate a variety of installation requirements.
  • The C3 crossovers are compact and made from high quality components, including Mylar® capacitors and segmented air core coils. Four levels of tweeter damping and three levels of midrange presence adjustment are available for twelve possible combinations!
  • Woofer grilles are included, each consisting of a black grille surround and a black steel grille with an electroformed JL Audio logo.
  • Sonic character: Clean and powerful
  • Sold as a pair.

    General specifications

    • Continuous power handling (RMS) : 75 W
    • Recommended amplifier power (RMS) : 25 - 150 W / Ch.
    • System efficiency : 90.0 dB at 1 W / 1 m
    • Nominal system impedance : 4 Ω
    • System frequency response : 48 Hz - 25 KHz ± 3 dB

    Dimensions of the bass-midrange drivers

    • Frame outer diameter (A) : 6.50 inch / 165 mm
    • Outer diameter of the grille channel (B): 171 mm / 6.74 inches
    • Motor outer diameter (C): 104 mm (4.08 inches)
    • Front coaxial tweeter projection (D) : 19 mm / 0.75 inch
    • Front grille projection (E) : 1.03 inch / 26 mm
    • Mounting hole diameter (F) : 141 mm / 5.56 inches
    • Installation depth (G): 65 mm (2.55 inches)

    Dimensions of the tweeters

    • Diameter of the flush-mounted bracket (A1): 54 mm / 2.12 inches
    • Diameter of the surface-mounted bracket (A2): 49 mm / 1.93 inches
    • Diameter of the hole for flush mounting (B) : 1.875 inch / 48 mm
    • Installation depth (C) for flush mount fixture : 18 mm / 0.71 inch
    • Flush mount tweeter Frontal projection (D1) : 8 mm / 0.32 inch
    • Surface mount tweeter front projection (D2) : 24 mm / 0.95 inch

    Physical specifications of the crossover

    • Width (W): 85 mm (3.36 inches)
    • Height (H) : 1.44 inch / 37 mm
    • Depth (D): 120 mm (4.72 inches)
