JL Audio VX600/2I 2 channel / mono DSP amplifier
€1,399.00
JL Audio VX600/2I
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- 2-channel full-range Class D amplifier with integrated DSP, 300 W x 2 @ 2 Ω / 180 W x 2 @ 4 Ω - 14.4V
- Designed to simplify great audio reproduction, each VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
- With JL's second-generation NexD2™ technology, the VX600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms or 300 watts into 2 ohms. It can also be bridged at 4 ohms to generate 600 W x 1.

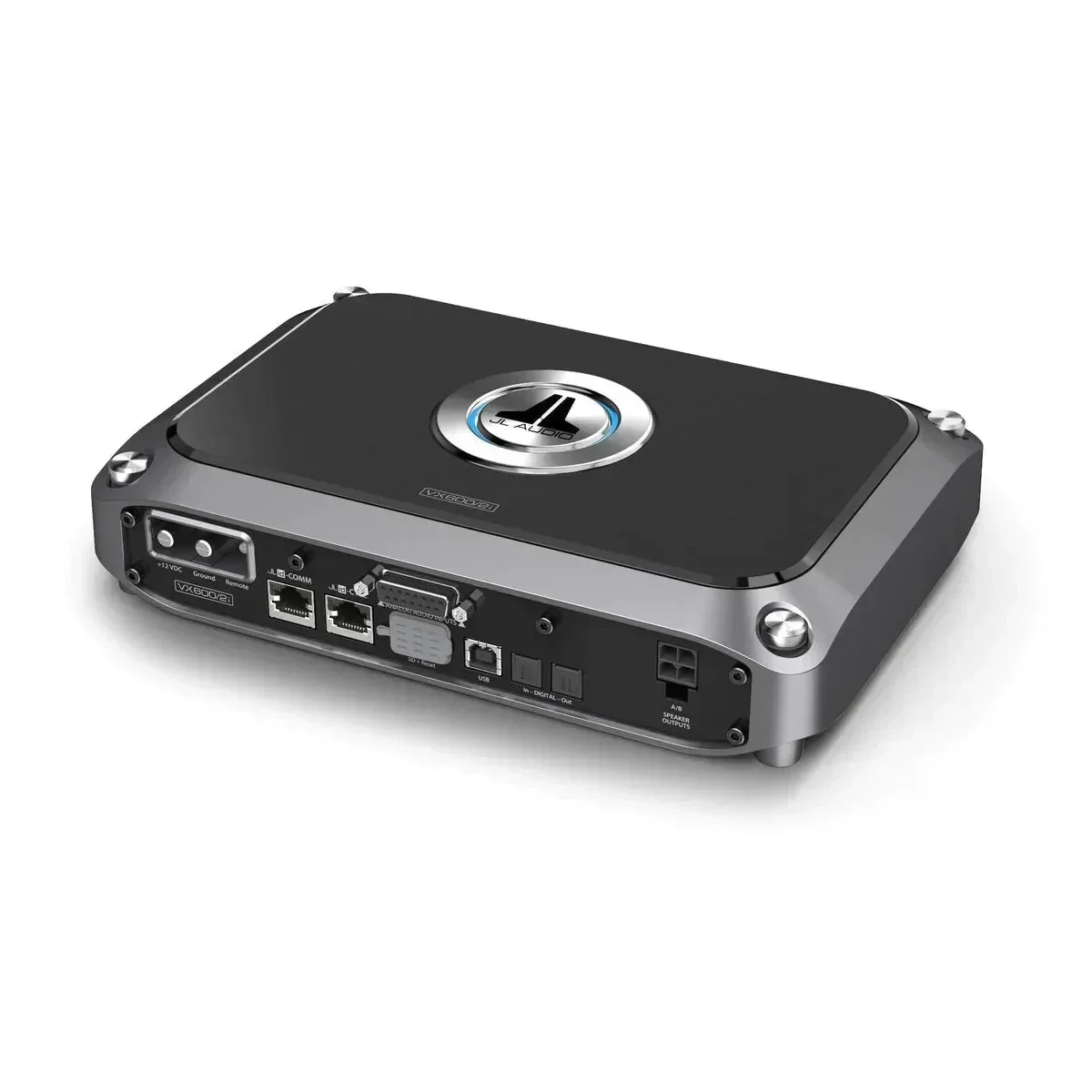

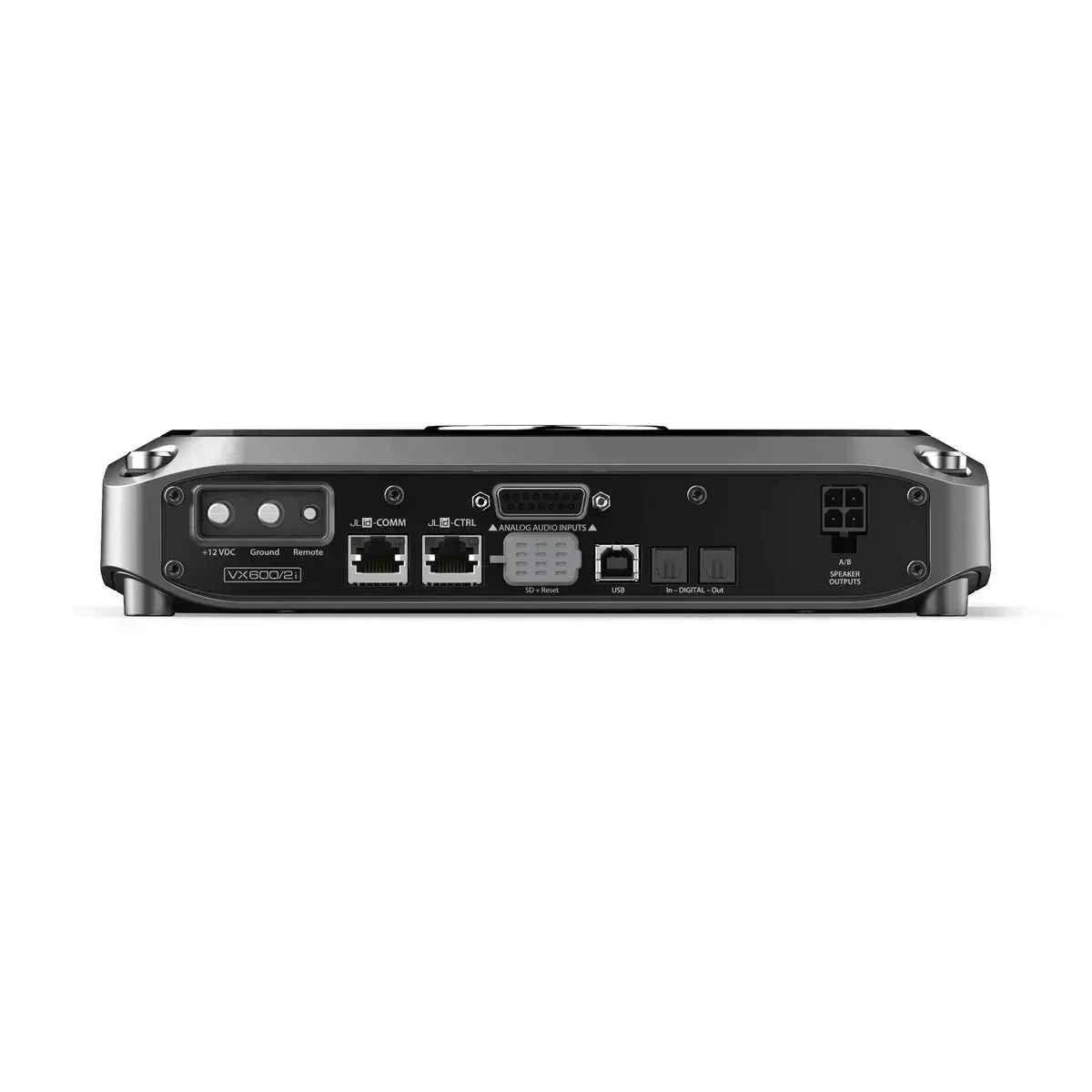

- The NexD2™ full-range technology in this amplifier is DSP-driven and features a reduced loop area design that utilizes DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, making installation in tight spaces much easier.
- Instead of the traditional control knobs and switches, all amplifier settings and DSP functions are configured via a compatible external device (PC, tablet or smartphone) with the appropriate JL Audio TüN™ software application installed.
- Amplifier included: power connection (for 25mm²), analog input/pre-output wiring harness, speaker output wiring harness, 1.8m A/B USB cable
Continuous rated power (RMS) at 14.4 V
- @ 4 Ω : 180 W RMS x 2
- @ 2 Ω : 300 W RMS x 2
- Bridged @ 4Ω : 600 W RMS x 1
Continuous rated power (RMS) at 12.5 V
- @ 4 Ω : 140 W RMS x 2
- @ 2 Ω : 225 W RMS x 2
- Bridged @ 4Ω : 450 W RMS x 1
General specifications
- Frequency response : 12 Hz - 24 kHz (+0, -1dB)
- S/N ratio, related to the highest rated power
(digital inputs) : 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) - Attenuation factor @ 4 Ω : >100 / 50 Hz
- Attenuation factor @ 2 Ω : >50 / 50 Hz
- THD+N @ Nennleistung : <1% @ 2 Ω pro Ch.
- Input voltage range @ RCA inputs : 200 mV - 16 V RMS
- Minimum cable diameter : 25mm²
- Fuse rating : 50 A (AFS, AGU or MaxiFuse™)
Dimensions
- Height (H): 54 mm (2.12 inches)
- Width (W): 250 mm (9.81 inches)
- Depth (D) : 6.62 in / 168 mm
