JL Audio VX1000/1I Monoblock DSP amplifier
€1,449.00
JL Audio VX1000/1I
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- Class D monoblock subwoofer amplifier with integrated DSP, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V
- Designed to simplify great sound, each VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
- The VX1000/1i monoblock subwoofer amplifier delivers up to 600 watts into 4 ohms or 1000 watts into 2 ohms.
- A specialized low-frequency version of JL's NexD2™ amplifier technology delivers bass performance and fidelity with outstanding efficiency.

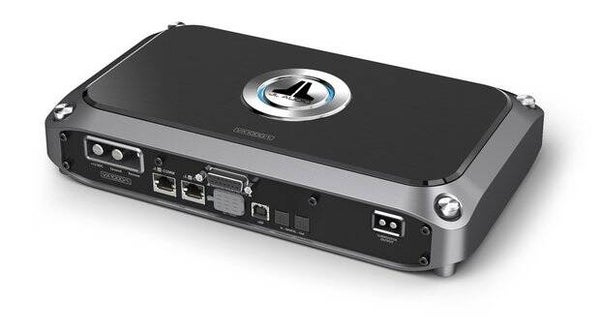

- The compact dimensions, with all connections arranged on one side via mating connectors, considerably simplify installation in confined spaces.
- Instead of traditional knobs and switches, all amplifier settings and DSP functions are configured via a compatible external device (PC, tablet or smartphone) with the appropriate JL Audio TüN™ software application installed.
- Amplifier included: power connection (for 35mm²), analog input/pre-output wiring harness, subwoofer output connection, 1.8m A/B USB cable
Continuous rated power (RMS) at 14.4 V
- @ 4 Ω : 600 W RMS x 1
- @ 3 Ω : 800 W RMS x 1
- @ 2 Ω : 1000 W RMS x 1
Continuous rated power (RMS) at 12.5 V
- @ 4 Ω : 500 W RMS x 1
- @ 3 Ω : 650 W RMS x 1
- @ 2 Ω : 800 W RMS x 1
General specifications
- Frequency response : 12 Hz - 500 Hz (+0, -1dB)
S/N ratio, relative to the highest rated power (analog inputs) : 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) - Attenuation factor @ 4 Ω : >400 / 50 Hz
- Attenuation factor @ 2 Ω : >300 / 50 Hz
- THD+N @ Nennleistung : <1% @ 2 Ω pro Ch.
- Input voltage range @ RCA inputs : 200 mV - 16 V RMS
- Minimum cable diameter : 35mm²
- Fuse rating : 80 A (AFS, AGU or MaxiFuse™)
Dimensions
- Height (H): 54 mm (2.12 inches)
- Width (W): 287 mm (11.32 inches)
- Depth (D) : 6.62 in / 168 mm
