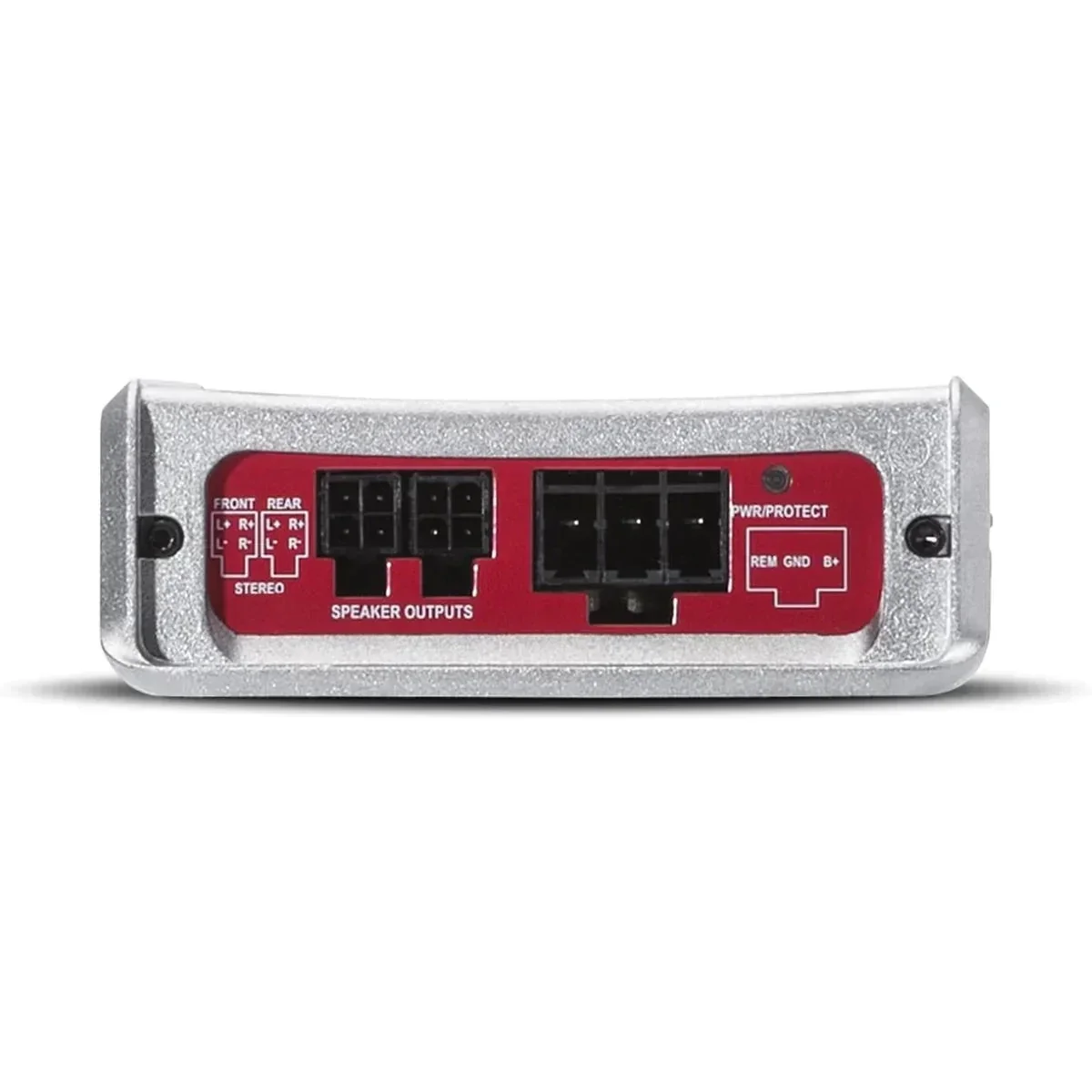

Rockford Fosgate Punch PBR400x4D Mini 4 channel amplifier
€339.00
Rockford Fosgate Punch PBR400x4D
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- Full range Class-D
- Differential inputs with automatic switch-on function for high levels
- 8mm² current/ground connection
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Remote out function when using high level inputs
- Real-time output and power supply thermal monitoring
- Extruded aluminum heat sink
- Selectable fixed 12dB/octave Butterworth crossovers
- Damped power up
- Rockford Fosgate proprietary protection
- Discrete surface mount technology
- Compact design for unobtrusive installations
Specifications:
- 4-channel amplifier
- RMS power:
- 50 Watt x 4 @ 4-Ohm
- 100 Watt x 4 @ 2-Ohm
- 200 Watt x 2 @ 4-Ohm bridged
- Dynamic power
- 75 Watt x 4 @ 4-Ohm
- 130 Watt x 4 @ 2-Ohm
- 270 Watt x 2 @ 4-Ohm bridged
- Bridgeable : Yes
- Frequency response : 20Hz - 20kHz +/- 1dB
- Input sensitivity : 150 mV to 12 V
- Circuit topology class : Class D
- Efficiency (average) : > 75%
- Signal input : Input switch : 2-channel/4-channel input switch
- Hi-Level : Variable DC offset sensitivity
- High-Level: Wiring harness
- Low-Level: 2 pairs RCA
- High-pass: 60Hz or 80Hz @ 12dB/octave
- Low pass: 80Hz @ 12dB/octave
- Cable diameter : 8mm²
- Speaker cable diameter : 1,5mm²
- Loudspeaker output connector : Front: 4-pole harness
- Rear : 4-pole wire harness
- Cooling : Convection
- Operating voltage : 9 - 16 VDC
- Recommended fuse 60 A
- Average current consumption (13.8 V music) : 27 A
- Max. Current consumption (13.8 V sine) : 50 A
- Dimensions (H x W x D) : 3.9 x 10.79 x 17.16 cm
