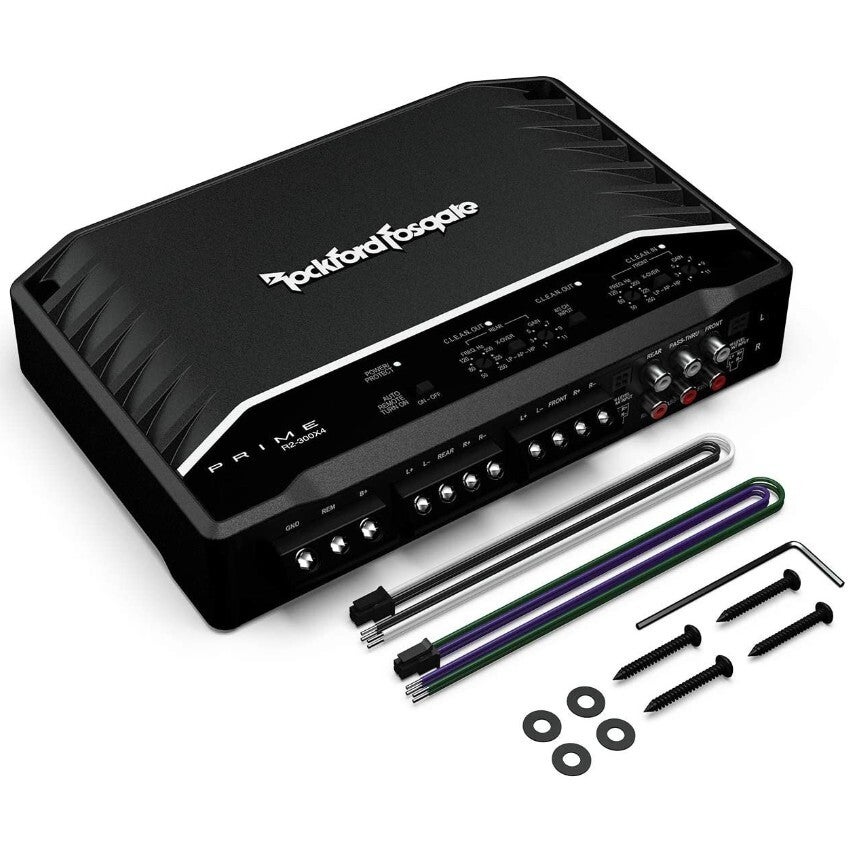

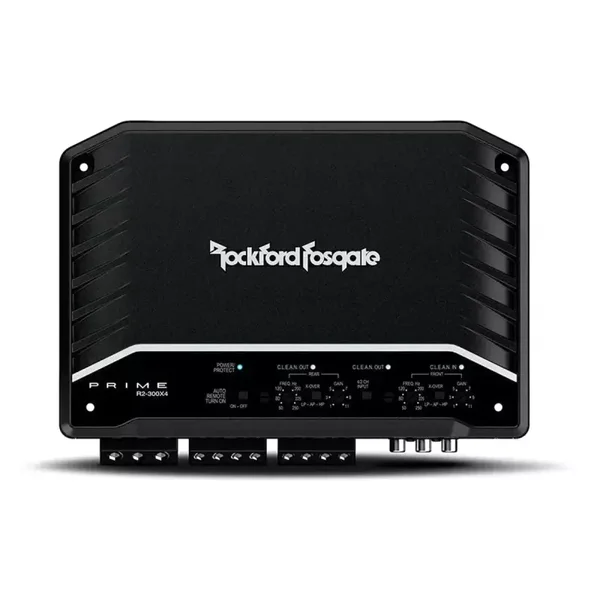

Rockford Fosgate Prime R2-300X4 4 channel amplifier
€299.00
Rockford Fosgate Prime R2-300X4
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- Balanced differential inputs with RCA pass-through outputs.
- High level input suitable
- Auto-sense bypass switch for vehicles with RAP (Retained Accessory Power)
- 2/4 channel input selector switch
- Features C.L.E.A.N. setting
- Variable input gain on front and rear panel
- Top mounted control panel
- Protection against short circuit and overcurrent
- CEA-2006 compliant & CE compliant
- Cast aluminum heat sink
- Full range Class-D
- Fully adjustable 12 dB/octave high-pass and low-pass Butterworth crossovers
Specifications:
- 4-channel amplifier
- RMS power:
- 50 Watt x 4 @ 4Ω
- 75 Watt x 4 @ 2Ω
- 150 Watt x 2 @ 4Ω Bridging/Mono
- Dynamic power
- 70 Watt x 4 @ 4Ω
- 115 Watt x 4 @ 2Ω
- 230 Watt x 2 @ 4Ω Bridging/Mono
- Bridgeable : Yes
- Frequency response : 20 Hz - 20 kHz
- Input sensitivity : Low level: 150 mV - 4 V
- High level : 450 mV - 12 V
- Circuit topology class : Class-D
- Signal input : Front low level: 4 RCA
- Front High-Level: 4-pin Molex
- Rear Low-Level: 4 RCA
- Rear side high level: 4-pin Molex
- Input switch: 2/4 input (works for RCA/Hi level inputs)
- Signal output: low level: 2 RCA (pass-thru active with RCA or Hi-Level-
- input)
- Front high pass: 50 Hz - 250 Hz @ 12dB/octave Butterworth
- Front low pass: 50 Hz - 250 Hz @ 12dB/octave Butterworth
- Rear high pass: 50 Hz - 250 Hz @ 12dB/octave Butterworth
- Rear low pass: 50 Hz - 250 Hz @ 12dB/octave Butterworth
- Remote controls : No
- Cable diameter : 20mm²
- Speaker cable diameter : 8mm²
- Cooling : convection
- Operating voltage : 9 - 16 VDC
- Recommended fuse : 60 A
- Max. Current consumption (13.8 V sine): 39 A
- Dimensions (H x W x D): 4.9 cm x 17.3 cm x 25.5 cm
