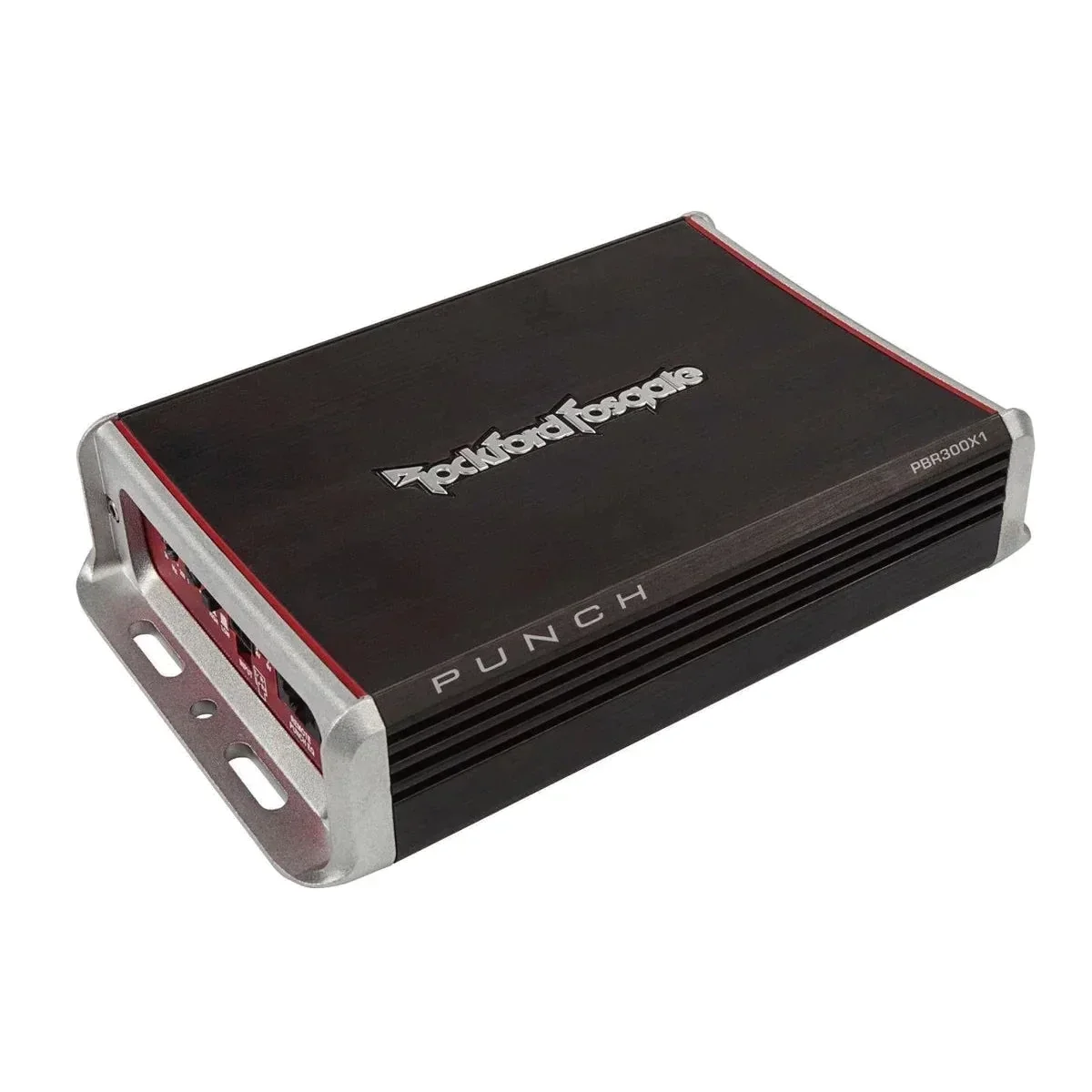

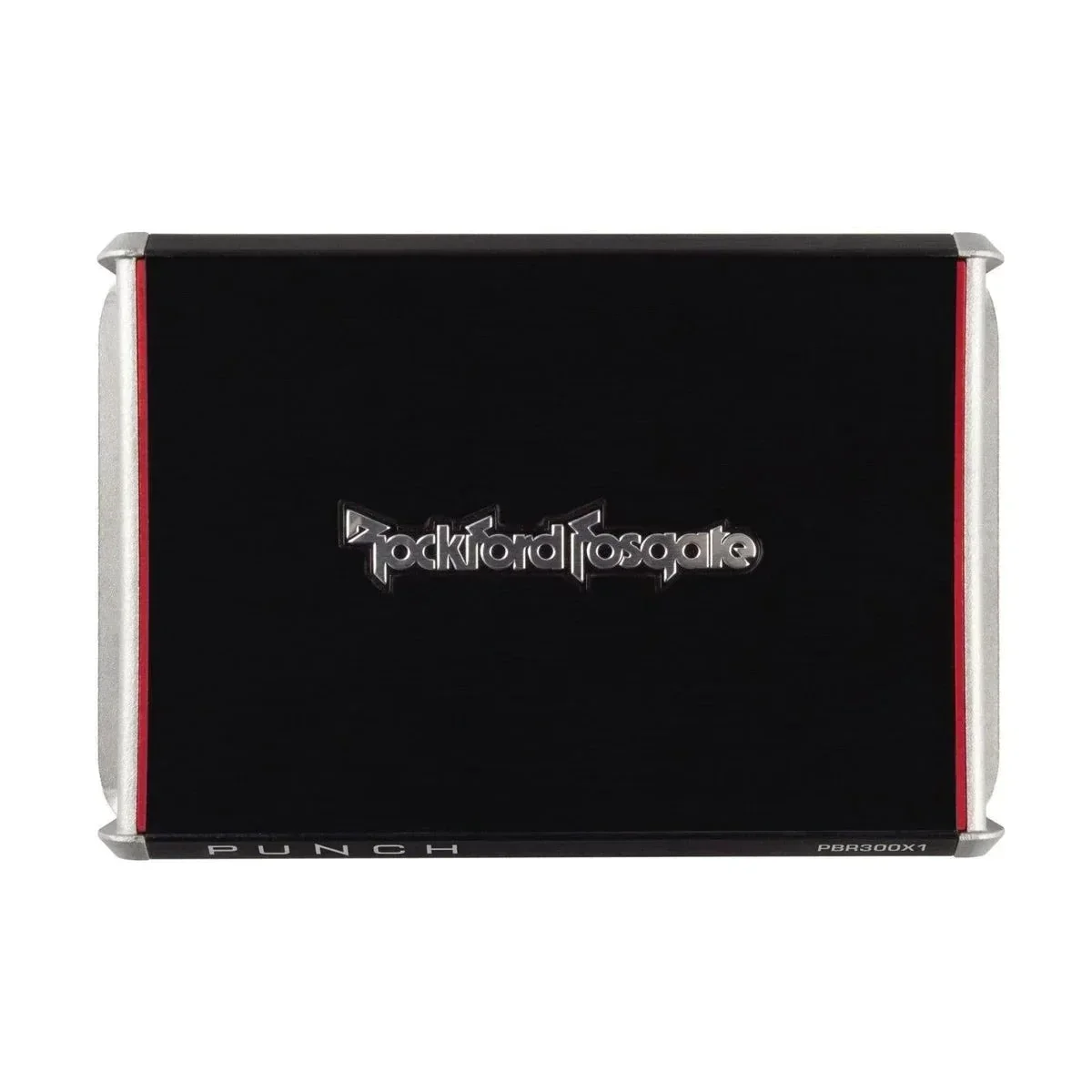

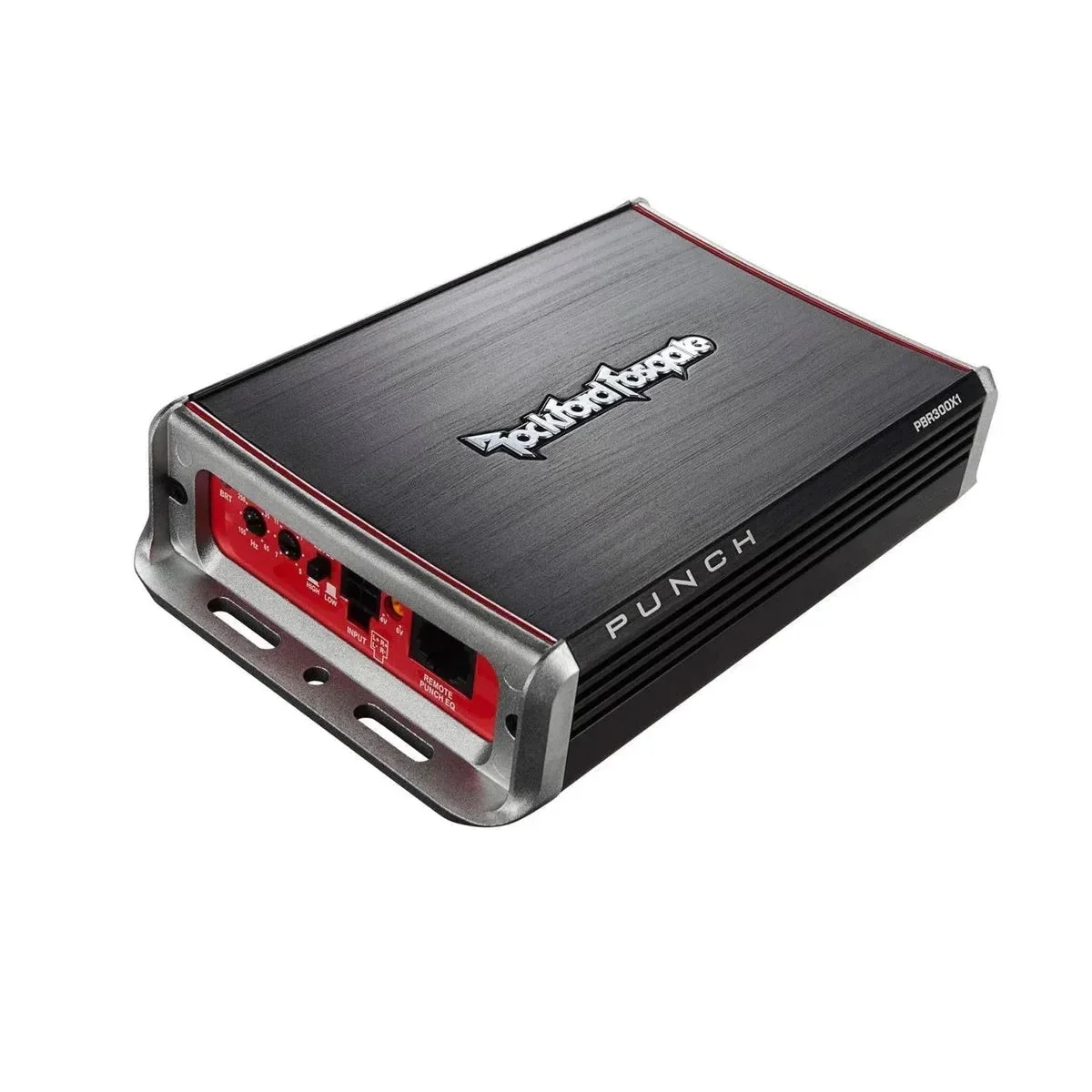

Rockford Fosgate Punch PBR300x1 Mini Monoblock

Rockford Fosgate Punch PBR300x1 Mini Monoblock
€279.00

Rockford Fosgate Punch PBR300X1



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • MOSFET output stage
  • High level inputs
  • Ultra compact housing
  • 12dB/octave Butterworth crossover
  • Variable 4-6 volt high level dc offset-
  • Input switch-on control

Specifications:

  • 1-channel amplifier
  • RMS power:
    • 75 Watt x 1 @ 4-Ohm
    • 150 Watt x 1 @ 2-Ohm
    • 300 Watt x 1 @ 1-Ohm
  • Dynamic power
    • 96 Watt x 1 @ 4-Ohm
    • 189 Watt x 1 @ 2-Ohm
    • 326 Watt x 1 @ 1-Ohm
  • Frequency response: 20 Hz - 250 Hz +/-3 dB
  • Input sensitivity : Low level: 150 mV - 4 V
  • High level : 400 mV - 11 V
  • Circuit topology class : BR class
  • Efficiency (average) : 75%
  • Signal input : High/Low input switch
  • High/low input : 4-pin harness
  • Hi-Level Sensitivity : Variable DC Offset Sensitivity
  • Tone control: External via optional Punch EQ
  • Lowpass: 35Hz - 250Hz @ 12dB/octave Butterworth
  • Remotes : Optional PEQ provides 0 dB to +18 dB at 45 Hz.
  • Visual Indicators : Power/Protection, BRT (Gain).
  • Cable diameter : 6mm²
  • Loudspeaker cable diameter : 1,5mm²

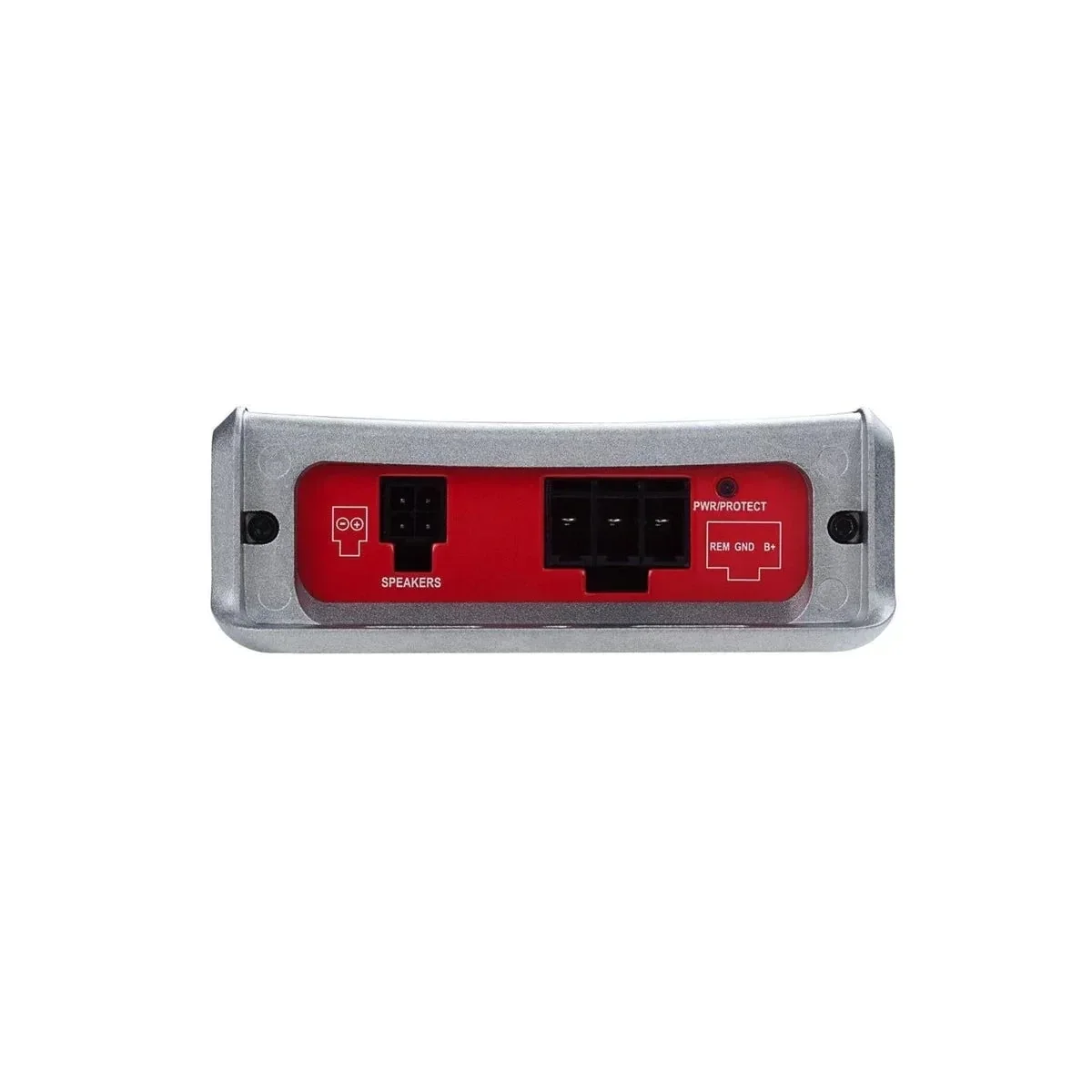

  • Speaker output connector : 4 pole harness
  • Cooling : Convection
  • Operating voltage : 9 - 16 VDC
  • Recommended fuse 30 A
  • Average current consumption (13.8 V music) : 15 A
  • Max. Current consumption (13.8 V sine) : 30 A
  • Dimensions (H x W x D) : 3.90 x 10.8 x 17.2 c
