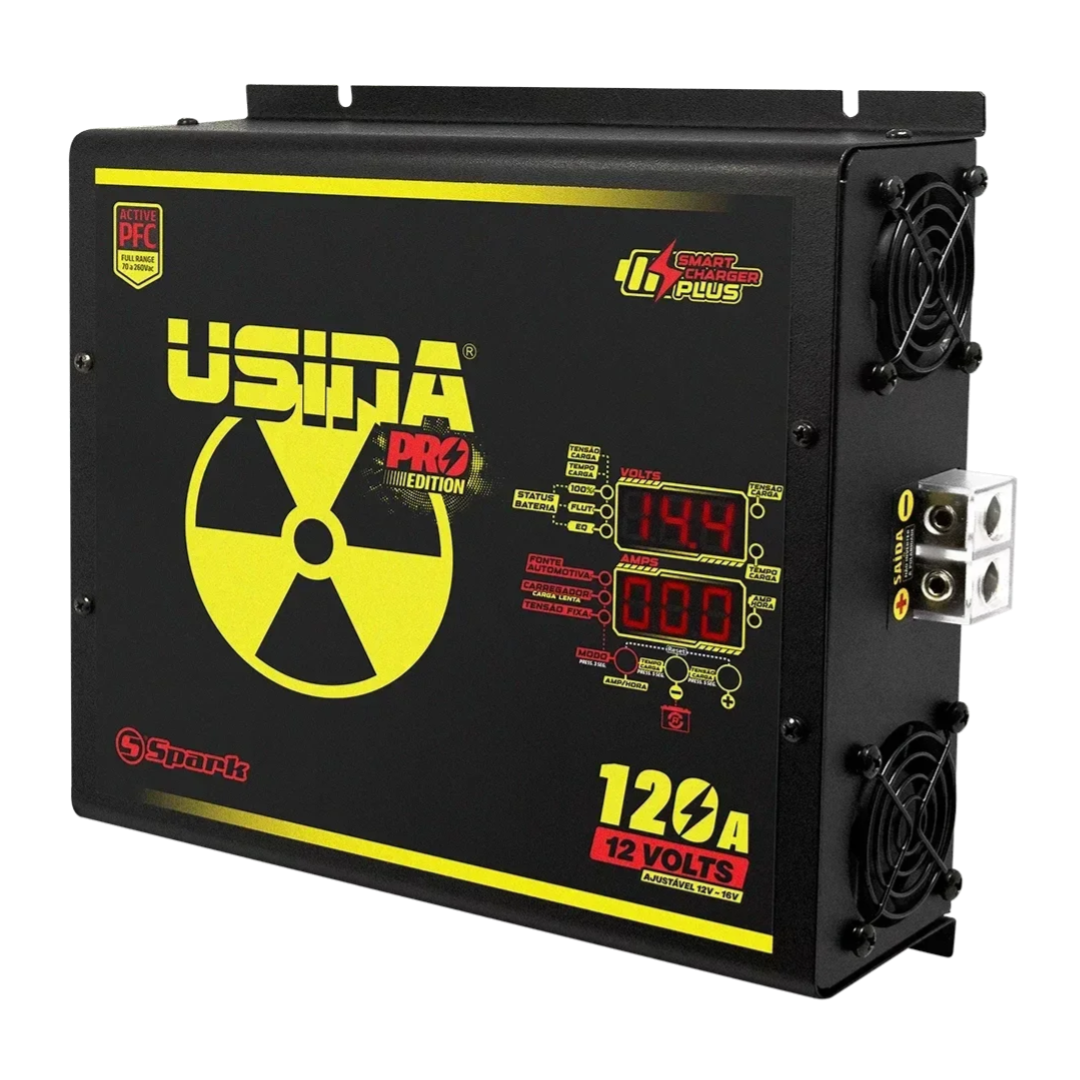

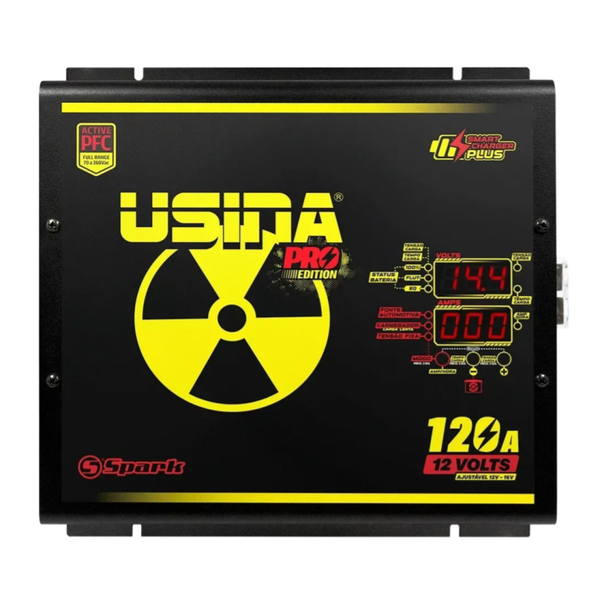

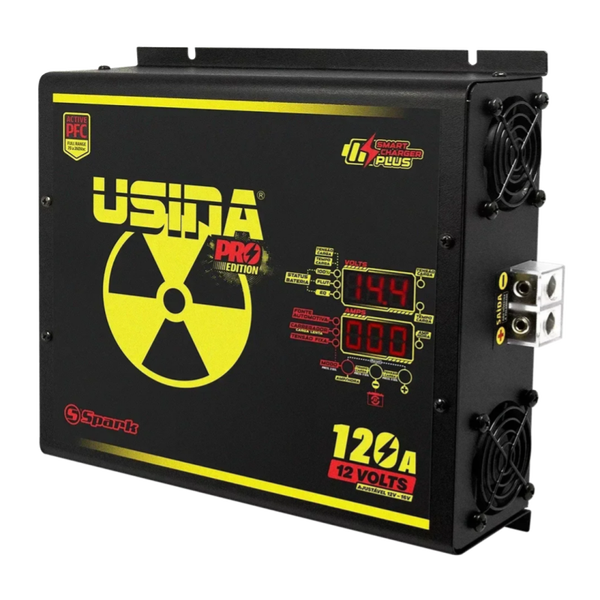

Usina - 120A Pro Edition DC Power Supply
€579.00
Usina - 120A Pro Edition
- Condition: New
- Sale type: BTW/21%
- Stock : 10-16 days extra delivery time
Productinfo
Works with: Yinlong LTO, LiFePO4 and AGM
- INPUT VOLTAGE: 70 @ 260Vac
- INPUT CURRENT(MAX): 20A
- INPUT POWER: 1800Watts (maximum)**
- POWER FACTOR: 0.95 @ 0.99
- OUTPUT VOLTAGE: 12 @ 16Vdc (+- 1%)
- OUTPUT CURRENT: 120A @ 13Vdc (+- 5%)*
- OUTPUT POWER: 1560 Watts (maximum)**
- EFFICIENCY: 82% @ 85%
- INPUT CABLE: 3x1.5mm² - 2P+T
- INPUT PROTECTION: 25A Circuit Breaker
- OUTPUT CABLE: 25mm²
- RECOMMENDED EXTENSION: 2.5mm² (max 30 meters)
- APPROXIMATE WEIGHT: 3,250Kg
- RECOMMENDED GENERATOR: 3Kva
- APPROXIMATE DIMENSIONS (LxWxH): 300mm x
- 253mm x 80mm***
- Current and power measured on resistive load
- Output power may vary according to the network voltage and conditions of use
- The measurements referring to the dimensions of the sources have a variation of approximately 2mm
- Only for professional use, comes with a separate plug that you have to assemble yourself !)
