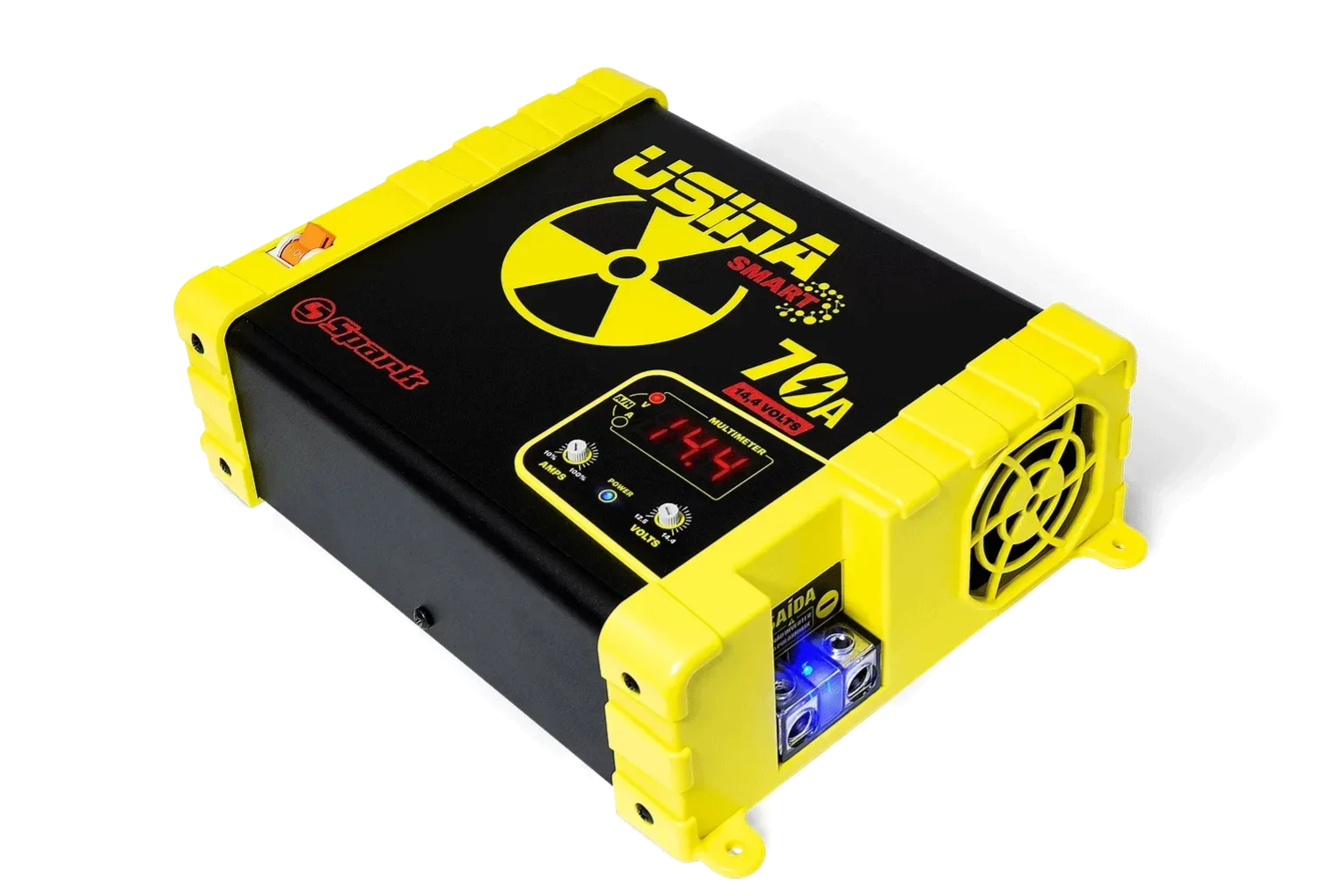

Usina Spark - 70A Smart DC Power Supply

Usina Spark - 70A Smart DC Power Supply
€279.00

Usina Spark - 70A



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 10-16 days extra delivery time

Productinfo

Works with: Yinlong LTO, LiFePO4 and AGM

  • Input Voltage: Automatic Bivolt
  • AC 127Vac: 100 @ 140Vac
  • AC 220Vac: 170 @ 250Vac
  • Consumption 127Vac: 15A (maximum)
  • Consumption 220Vac: 8A (maximum)
  • Output Voltage: 12.5V @ 14.4Vdc (+-1%)
  • Current Output Power: 70A @ 12.5Vdc (+-5%)*
  • Output Power: 875 Watts (maximum)**
  • Efficiency: 84%
  • Input Power: 1075 Watts (maximum)**
  • Input Cable: 3x1.5mm² - 2P +T
  • Input Protection: 16A Circuit Breaker
  • Output Cable: 16mm²
  • Recommended Extension: 2.5mm² (max 30 meters)
  • Weight: 1.770 Kg
  • Approximate Dimensions ( LxWxH ):
  • 258mmX186mmX75mm***
  • Observations:
  • Current and power measured in resistive load
  • The output power may vary according to the mains voltage and conditions of use
  • The measurements referring to the dimensions of the sources have a variation of approximately 2mm
