JL Audio C3-570 5x7'' convertible component/coaxial system

JL Audio C3-570 5x7'' convertible component/coaxial system
€549.00

JL Audio C3-570



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 2-way convertible component / coaxial system: 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers and 1-inch (25 mm) silk dome tweeters
  • There are times when an installation requires a separate woofer and tweeter, and other times when a coaxial speaker is the better solution. With the Evolution® C3 Convertible Component systems, the same product can be used in both configurations, delivering outstanding audio performance and quality in any application.
  • Many mistakenly believe that an oval speaker is not as powerful as a round one, resulting in many 5.25-inch speakers being installed in 5 x 7-inch openings. JL Audio has put a lot of time and effort into designing fantastic sounding speakers that fit into oval ports and are guaranteed to deliver the same performance as JL's round 6.5-inch (165mm) speaker systems. So don't make the mistake of losing out on cone area and efficiency by going for a smaller round speaker, these ovals are just as impressive as JL's round format systems.

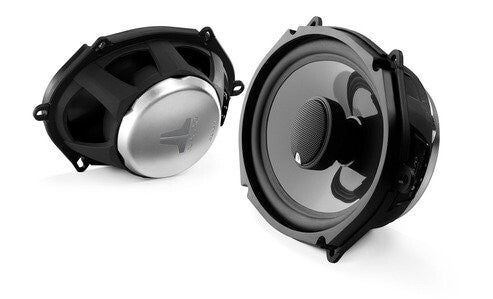

  • The C3-570 system consists of 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.

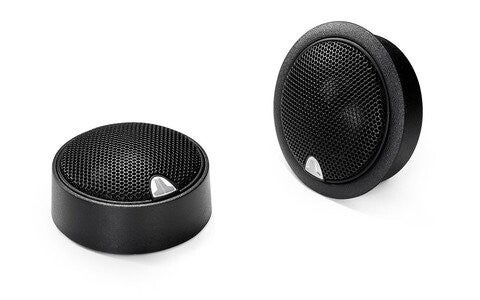

  • The C3 tweeters are built with 1-inch silk dome cones that deliver a powerful, extended on- and off-axis response.

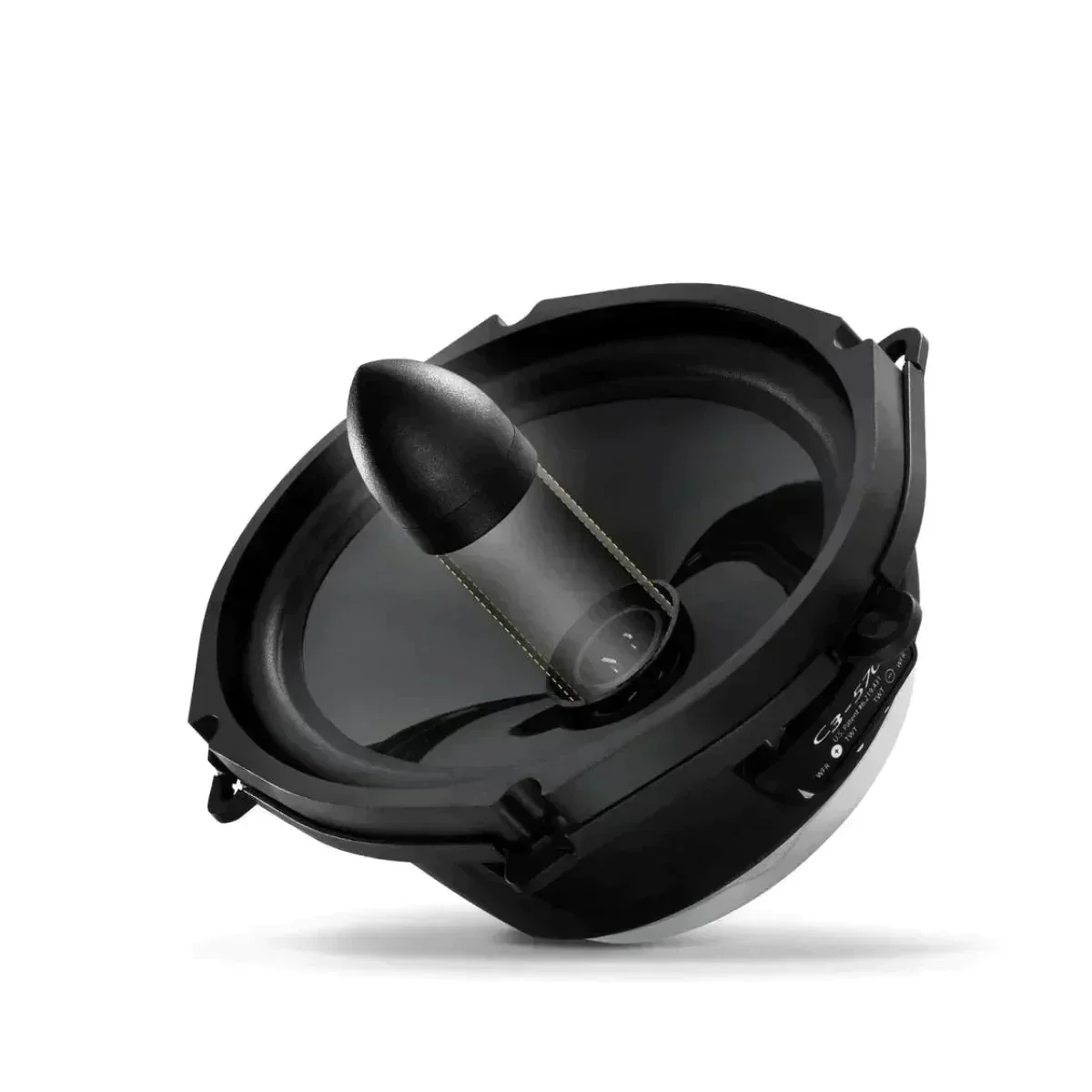

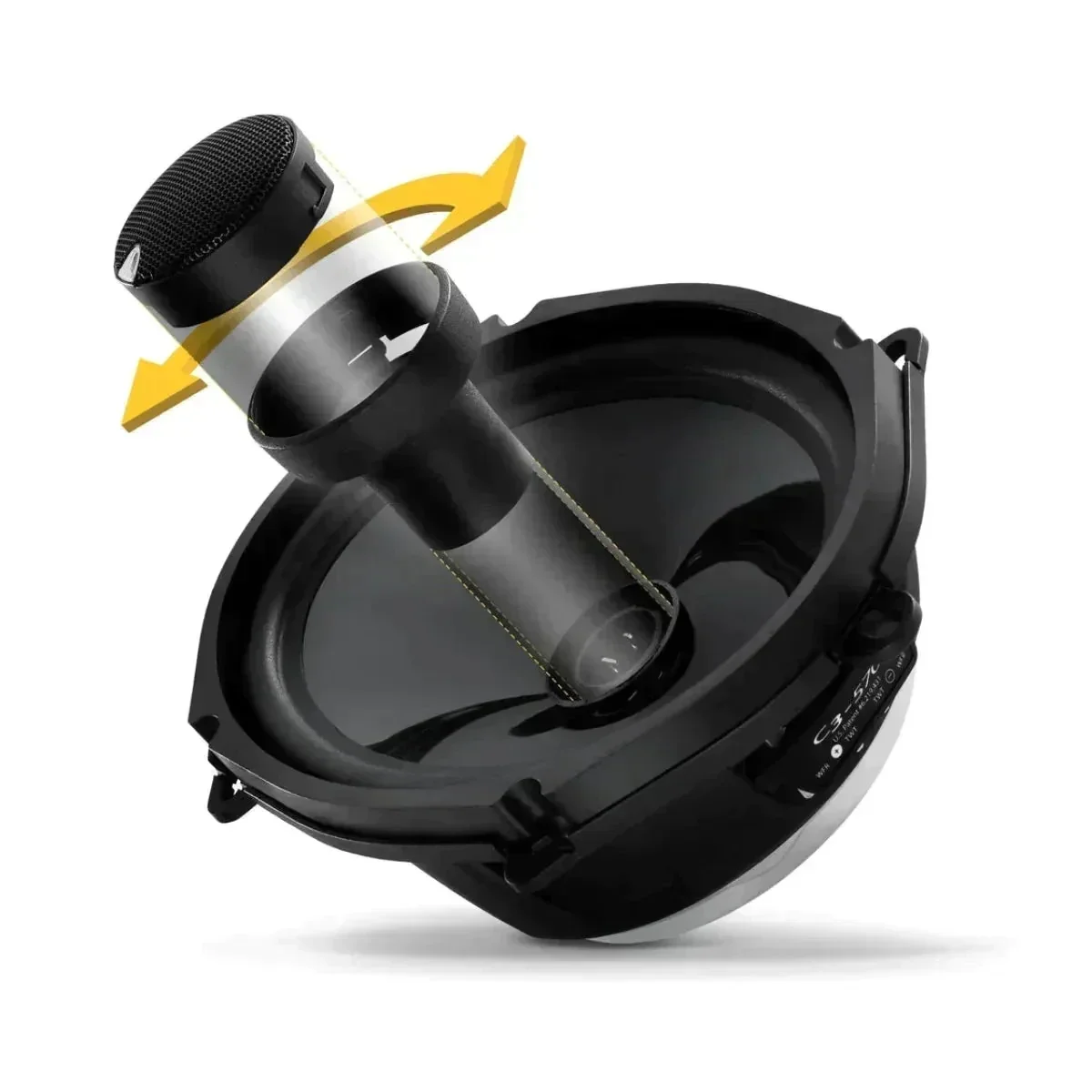

  • In-wall and "on-wall" mounting fixtures are included to accommodate a variety of installation requirements. They can also be mounted coaxially on the bass-midrange drivers using the brackets provided.
  • The C3 crossovers are compact and made from high quality components including Mylar® capacitors and segmented air core coils. Four levels of tweeter damping and three levels of midrange presence adjustment are available for twelve possible combinations!
  • Mid-bass grilles are not available for this product.
  • Sonic character: Clean and powerful
  • Sold as a pair.

General specifications

  • Continuous power handling (RMS) : 75 W
  • Recommended amplifier power (RMS) : 25 - 150 W / Ch.
  • System efficiency : 90.0 dB at 1 W / 1 m
  • Nominal system impedance : 4 Ω
  • System frequency response : 48 Hz - 25 KHz ± 3 dB

Physical specifications of the woofers

  • Frame outer diameter (A) : 5.52 x 7.68 inches / 140 x 195 mm
  • Outer diameter of the grille channel (B) : N/A
  • Motor outer diameter (C): 104 mm (4.08 inches)
  • Front coaxial tweeter projection (D) : 0.78 inch / 20 mm
  • Front grille projection (E) : N/A
  • Mounting hole diameter (F) : N/A
  • Mounting depth (G): 64 mm (2.52 inches)

Physical specifications of the tweeters

  • Diameter of the flush-mounted bracket (A1): 54 mm / 2.12 inches
  • Diameter of the surface mount bracket (A2): 49 mm / 1.93 inches
  • Diameter of the hole for flush mounting (B) : 1.875 inch / 48 mm
  • Installation depth (C) for flush mount fixture : 18 mm / 0.71 inch
  • Flush mount tweeter Frontal projection (D1) : 8 mm / 0.32 inch
  • Surface mount tweeter front projection (D2) : 24 mm / 0.95 inch

Physical specifications of the crossover

  • Width (W): 85 mm (3.36 inches)
  • Height (H) : 1.44 inch / 37 mm
  • Depth (D): 120 mm (4.72 inches)
