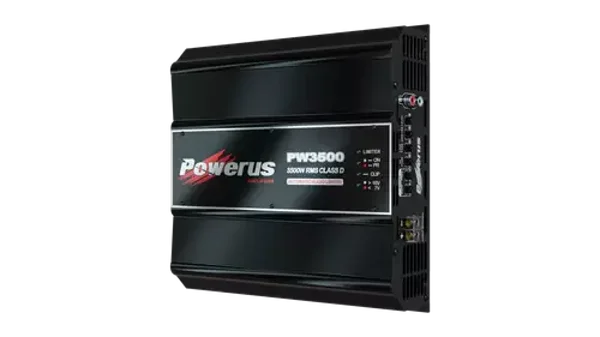

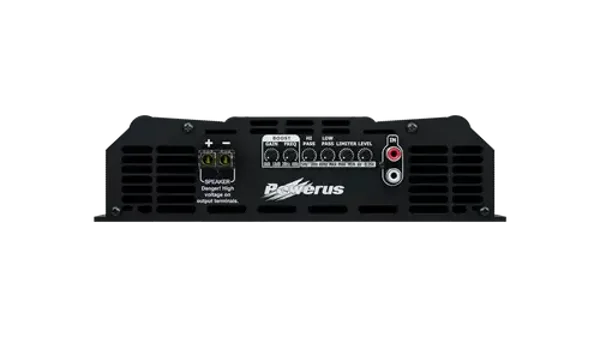

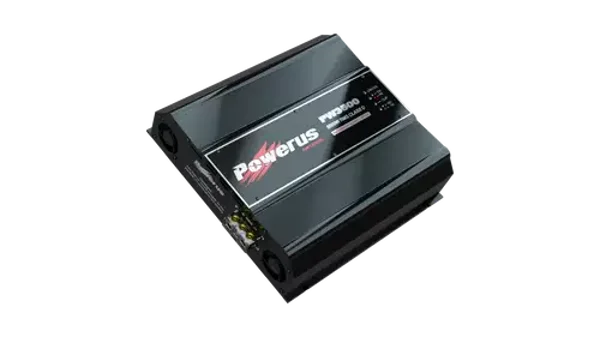

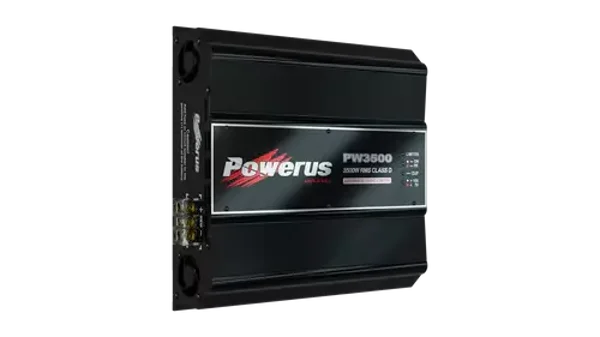

Powerus PW3500 Monoblock amplifier

Powerus PW3500

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : This product has a longer delivery time. Ask for the current delivery time

• This product can be ordered as a pre-order when sold out. Please take a long delivery time into account.

Product info:

• Supply Voltage / Power Supply 7Vdc ~ 16V dc
• Consumption at Rest / Consumption at Rest 1.5A
• Musical Consumption / Music Consumption 170A
• Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in
• Sinusoidal Signal 40Hz 388A
• Efficiency / Efficiency 75%
• Input Impedance / Input Impedance 22K Ohms
• Input Sensitivity / Input Sensitivity 0.25V ~ 6V
• Total Harmonic Distortion / THD 0.1%
• SNR> 90dB
• Damping Factor / Damping Factor 40Hz (12.6V 2 Ω)> 1000
• Frequency Response / Frequency Response 5Hz ~ 45KHz (- 3dB)
• 80Hz ~ 20KHz Low Pass Crossover
• Crossover High Pass 5Hz ~ 200Hz
• Boost Gain / Boost Gain 0dB ~ 18dB
• Variable Boost Frequency / Frequency of Variable
• Reinforcement. 28Hz ~ 400Hz
• Variable Threshold Limiter / Variable Threshold Limiter Exclusivvo
• Dimensions / Dimensions (DxWxH) mm 70x280x260

Powerus PW3500 - 1Ω

• Power @ 12.6V @ 1Ω: 1 X 3670 WRMS
• Power @ 12.6V @ 2Ω: 1 X 2540 WRMS
• Power @ 14,4V @ 1Ω: 1 X 4740 WRMS
• Power @ 14,4V @ 2Ω: 1 X 3310 WRMS

Powerus PW3500 - 2Ω

• Power @ 12.6V @ 2Ω: 1 X 3670 WRMS
• Power @ 12.6V @ 4Ω: 1 X 2540 WRMS
• Power @ 14,4V @ 2Ω: 1 X 4740 WRMS
• Power @ 14,4V @ 4Ω: 1 X 3310 WRMS

Installation note:

• Use cables with a cross-section of 35mm² or more for power supply installation. The positive cable must come directly from the battery, with a fuse or circuit breaker 30cm away from the battery. The negative cable must have the same cross-section as the positive cable.
