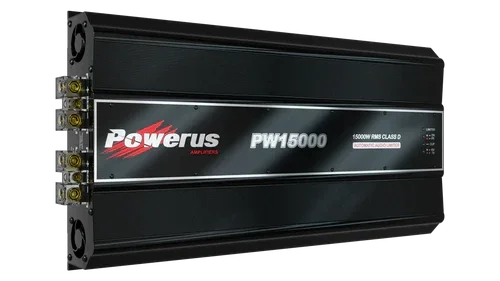

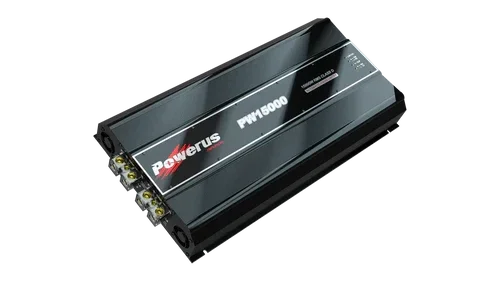

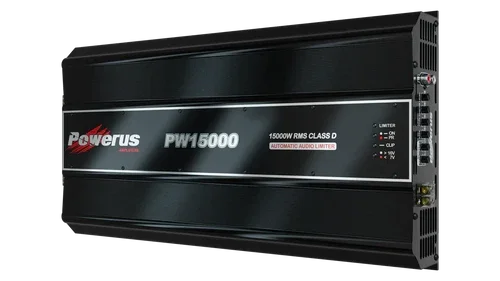

Powerus PW15000 Monoblock amplifier

Powerus PW15000

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : This product has a longer delivery time. Ask for the current delivery time

• This product can be ordered as a pre-order when sold out. Please take a long delivery time into account.

Product info:

• Supply Voltage / Power Supply 7Vdc ~ 16V dc

• Resting Consumption / Consumption at Rest 4,5A

• Musical Consumption / Music Consumption 700A

• Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in
• Sinusoidal Signal 40Hz 1630A

• Efficiency / Efficiency 75%

• Input Impedance / Input Impedance 22K Ohms

• Input Sensitivity / Input Sensitivity 0.25V ~ 6V

• Total Harmonic Distortion / THD 0.1%

• SNR> 90dB

• Damping Factor / Damping Factor 40Hz (12.6V 2 Ω)> 1000

• Frequency Response / Frequency Response 5Hz ~ 15KHz (- 3dB)

• 80Hz ~ 20KHz Low Pass Crossover

• Crossover High Pass 5Hz ~ 200Hz

• Boost Gain / Boost Gain 0dB ~ 18dB

• Variable Boost Frequency / Frequency of Variable
• Reinforcement. 28Hz ~ 400Hz

• Variable Threshold Limiter / Variable Threshold Limiter Exclusivvo

• Dimensions / Dimensions (AxHxL) mm 70x280x580

Powerus PW15000 - .5Ω

• Power @ 12.6V @ .5Ω: 1 X 15400 WRMS

• Power @ 12.6V @ 1Ω: 1 X 11200 WRMS

• Power @ 14,4V @ .5Ω: 1 X 17808 WRMS
• Power @ 14,4V @ 1Ω: 1 X 12810 WRMS

Powerus PW15000 - 1Ω

• Power @ 12.6V @ 1Ω: 1 X 15400 WRMS

• Power @ 12.6V @ 2Ω: 1 X 11200 WRMS

• Power @ 14,4V @ 1Ω: 1 X 17808 WRMS
• Power @ 14,4V @ 2Ω: 1 X 12810 WRMS

Installation note:

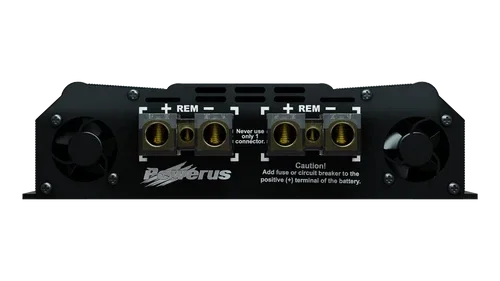

• For the installation of the power supply, use cables with a cross-section of 50-70mm² or more, as well as 2 pairs of 50mm²/70mm² to 2x50mm²/70mm² terminal adapters, which you can find separately in our store. The positive cable must come directly from the battery, with a fuse or circuit breaker 30cm away from the battery. The negative cable must have the same cross-section as the positive cable.
