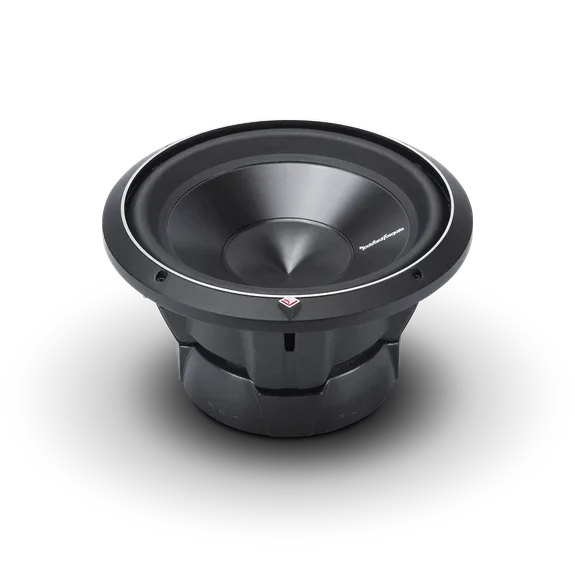

Rockford Fosgate Punch P3D2-12 / P3D4-12 12 inch subwoofer

Rockford Fosgate Punch P3D2-12 / P3D4-12

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 2 -4 days extra delivery time

Productinfo:

• Custom 4mm² nickel plated compression fittings.
• Rubberized overmold for better grip
• Extended pole shoe and swaged, vented back plate
• Anodized aluminum cone and dust cap
• High temperature voice coil with spun Nomex®-
• Reinforcing collar
• Protective, textured PVC magnet cover
• Diamond cut cast aluminum trim ring with optional grille
• StampCast basket with integrated spider ventilation

Specifications:

• 12" (30cm) subwoofer
• Power handling RMS 600 watts
• Power handling Max 1200 Watt
• Installation depth : 169.3 mm
• Voice coil diameter : 65.5 mm
• Woofer displacement : 3.0 liters
• Shipping weight : 9.5 kg
• Magnet weight : 2.73 kg
• Cutout diameter : 285 mm
• Available in D2 and D4 impedance
• D2 (2x2 Ohm) variant:
  • Nominal impedance : Dual 2-Ohm
  • Voice coil type : Dual voice coil
  • Re (Ohm) : 3.20
  • SPL (dB @ 1w/1m) : 85
  • Fs (Hz) : 26.5
  • Qts : 0.49
  • Qes : 0.53
  • Qms : 6.70
  • Le (mH) : 4.25
  • Vas (liter) : 57.7
  • Xmax (mm) : 15.2
  • Sd (cm2) : 570
  • Closed case volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 liters
• D4 (2x4 Ohm) variant:
  • Nominal impedance : Dual 4-Ohm
  • Voice coil type : Dual voice coil
  • SPL (dB @ 1w/1m) 85
  • Fs (Hz) 27.7
  • Qes 0.57
  • Qms 5.60
  • Xmax (mm) 15.9
  • Le (mH) 6.94
  • Qts 0.52
  • Vas (liter) 57.7
  • Re (Ohm) 6.40
  • Sd (cm2) 570
  • Closed case volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 liters
