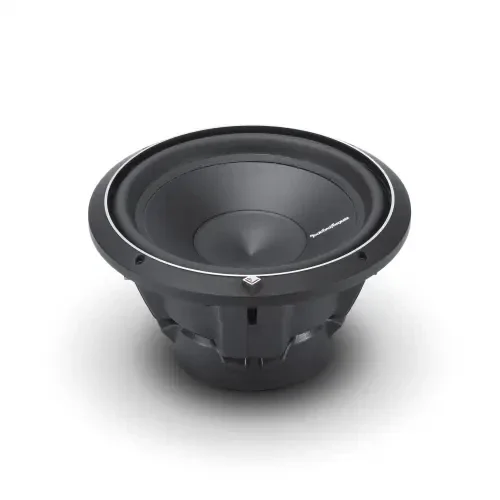

Rockford Fosgate Punch P2D2-12/P2D4-12 12 inch subwoofer

Rockford Fosgate Punch P2D2-12/P2D4-12

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 2 -4 days extra delivery time

Productinfo:

• Dual linear spider with embedded 16 AWG fin leads.
• Custom 4mm² nickel plated push terminals
• High temperature voice coil with spun Nomex®-
• Reinforcing collar
• Extended pole piece and compressed, vented back plate
• Protective textured PVC magnetic cover
• Kevlar fiber reinforced paper cone

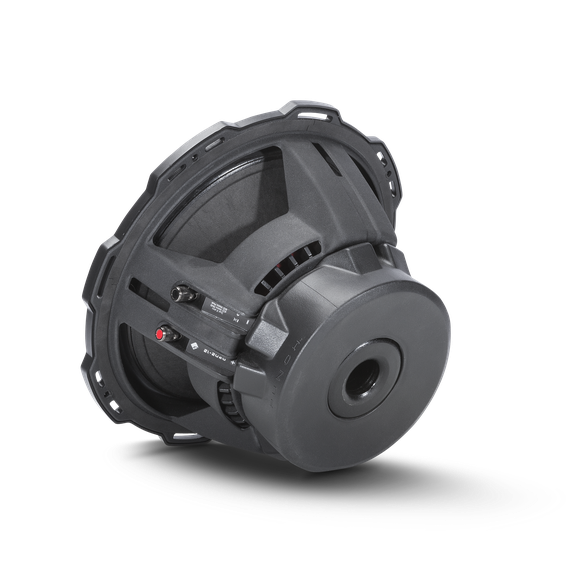

• StampCast basket with integrated spider ventilation
• Diamond-cut cast aluminum ring with optional grille

Specifications:

• 12" (30cm) subwoofer
• Power RMS : 400 watts
• Power Max : 800 Watt
• Installation depth : 162 mm
• Voice coil diameter : 57.15 mm
• Magnet weight : 2.06 kg
• Woofer displacement : 2.4 liters
• Shipping weight : 7.07 kg
• Cutout diameter : 285 mm
• Available in D2 and D4 impedance
• D2 (2x2 Ohm) variant:
  • Nominal impedance : Dual 2-Ohm
  • Voice coil type : Dual voice coil
  • SPL (dB @ 1w/1m) : 86
  • Fs (Hz) : 26
  • Xmax (mm) : 13.3
  • Le (mH) : 3.7
  • Size : 12"
  • Qts : 0.52
  • Qes : 0.56
  • Qms : 6.50
  • Re (Ohm) : 3.30
  • Vas (Liter) : 81.5
  • Sd (cm2) : 570
  • Closed case volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 liters
• D4 (2x4 Ohm) variant:
  • Nominal impedance : Dual 4-Ohm
  • Voice coil type : Dual voice coil
  • Qes 0.59
  • Qms 6.30
  • Re (Ohm) 6.40
  • SPL (dB @ 1w/1m) 86
  • Fs (Hz) 27.2
  • Qts 0.54
  • Vas (liters) 81.5
  • Xmax (mm) 13.3
  • Le (mH) 5.5
  • Sd (cm2) 570
  • Closed case volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 liters
