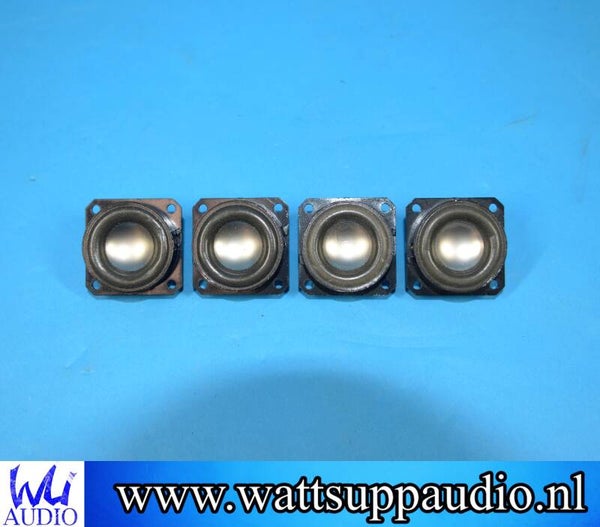

AuraSound Cougar NSW1-205-8A 1'' Woofer ( 4 pack )

AuraSound Cougar NSW1-205-8A Woofer ( 4 pack )

Sale info

• Condition: used( tested / inspected )
• sale type: margin
• Stock : shipped within 24 hours

Productinfo

• Woofer Type
  Extended Range Driver
  Nominal Diameter
  1''
  Power Handling (RMS)
  5 Watts
  Power Handling (max)
  20 Watts
  Impedance (Z)
  8 Ohms
  Sensitivity (SPL at 1m / 2.83V)
  78 dB
  Frequency Response
  220-20,000 Hz
  Voice Coil Diameter
  7/8''
  DC Resistance (Re)
  6.3 Ohms
  Resonant Frequency (Fs)
  220 Hz
  Mechanical Q (Qms)
  2.1
  Electromagnetic Q (Qes)
  1.1
  Total Q (Qts)
  0.70
  Diaphragm Mass Inc. Airload (Mms)
  0.5 g
  Mechanical Compliance of Suspension (Cms)
  1.155 mm/N
  Surface Area of Cone (Sd)
  5.31 cm²
  BL Product (BL)
  1.9 Tm
  Compliance Equivalent Volume (Vas)
  0.04 L
  Maximum Linear Excursion (Xmax)
  2.25 mm
  Cone / Diaphragm Material
  Titanium
  Surround Material
  Foam
  Voice Coil Wire Material
  CCAW
  Basket / Frame Material
  Polymer
  Magnet Material
  Neodymium
  Overall Outside Diameter
  39 x 39 mm
  Baffle Cutout Diameter
  36 mm
  Bolt Circle Diameter
  43 mm
  # Mounting Holes
  4
  Mounting Hole Diameter
  3.4 mm

The price is for all 4 together
