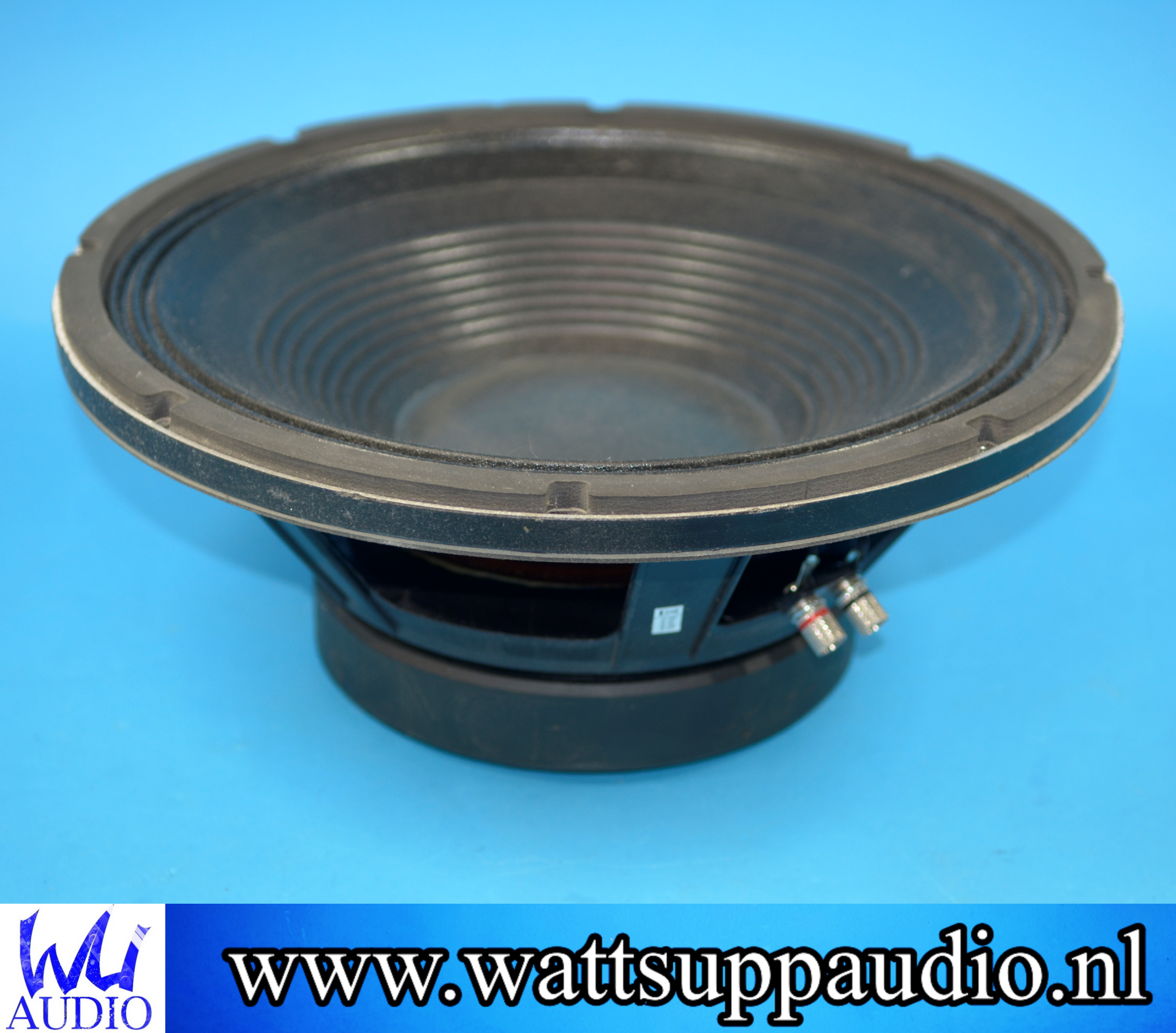

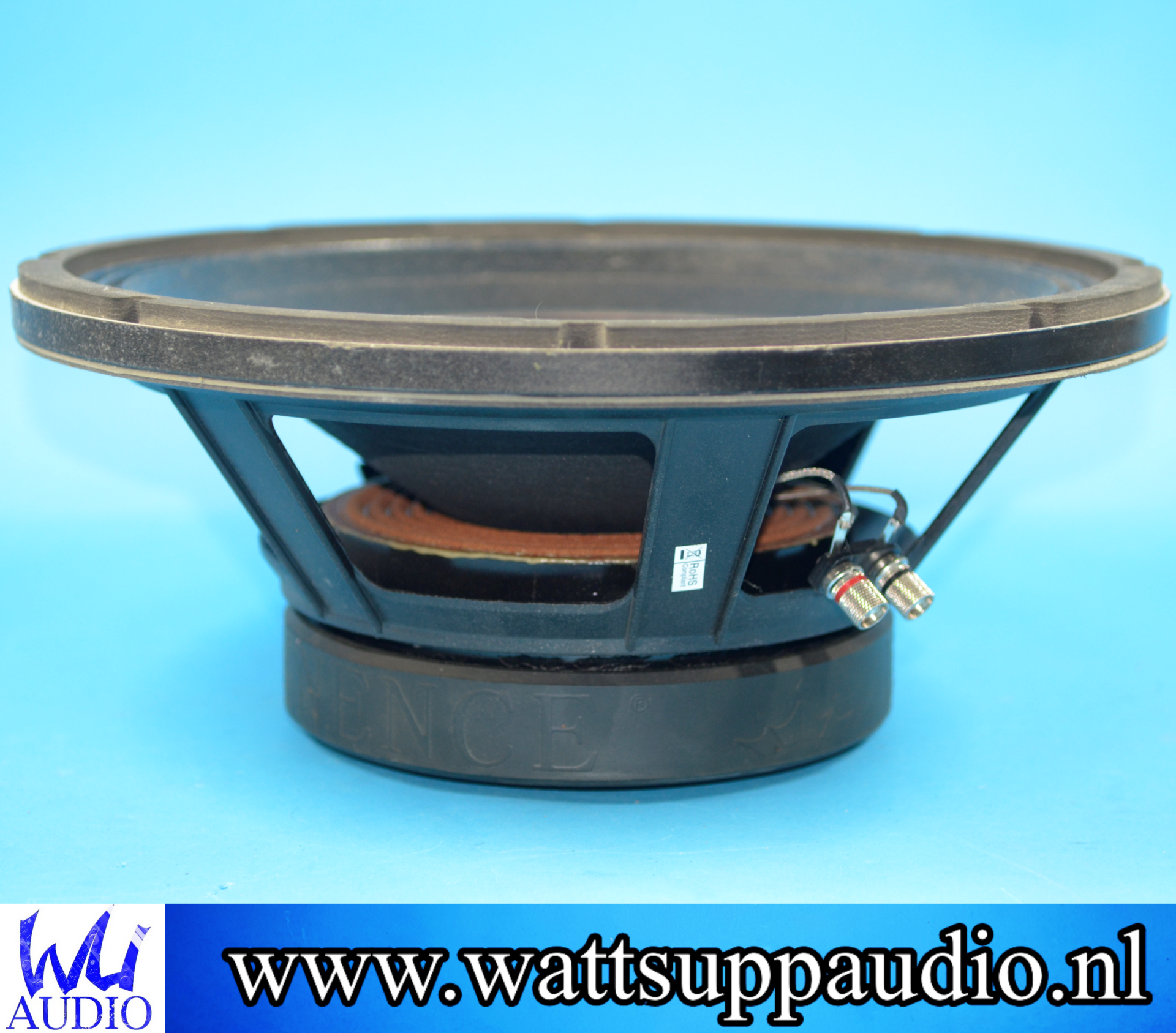

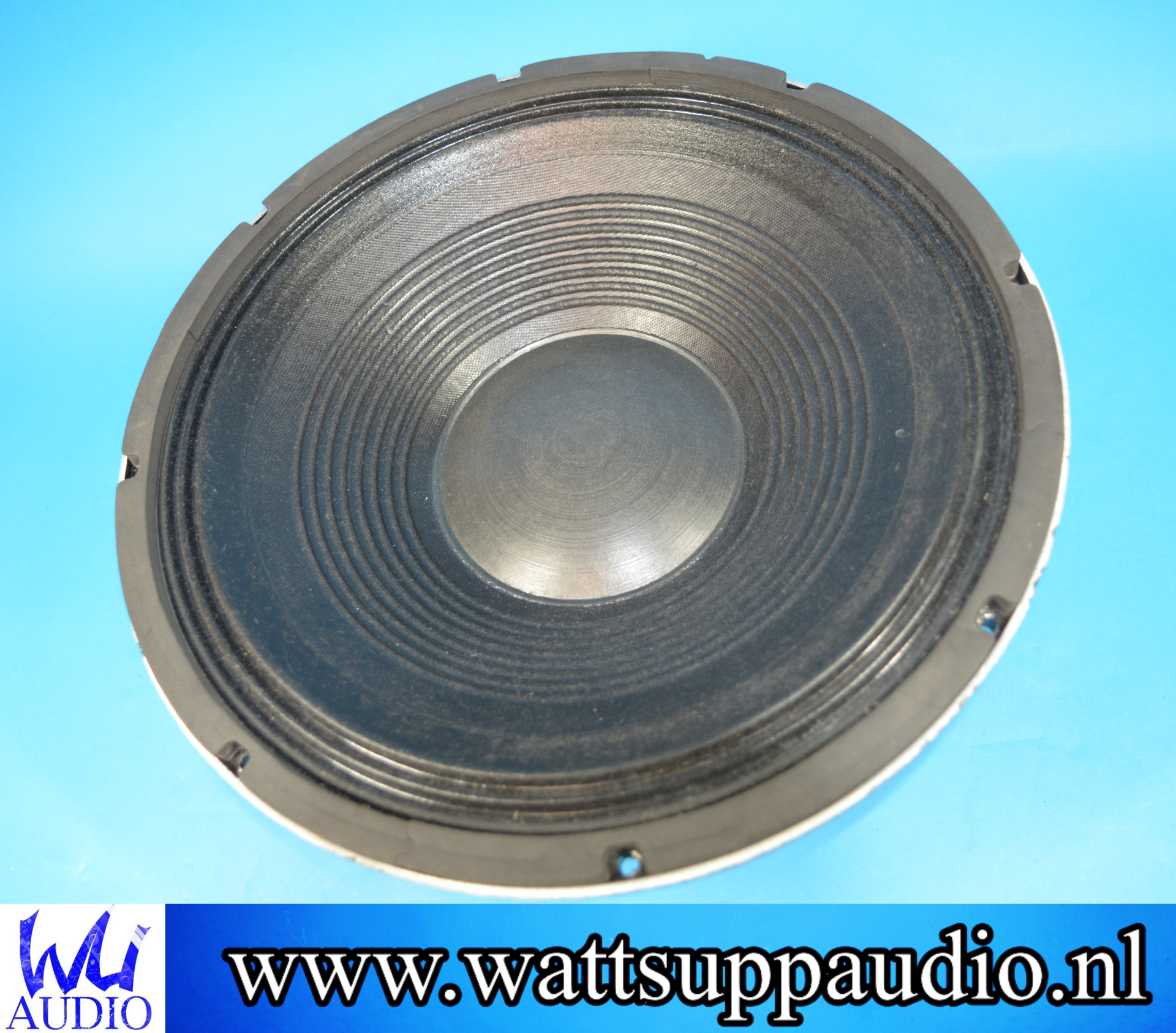

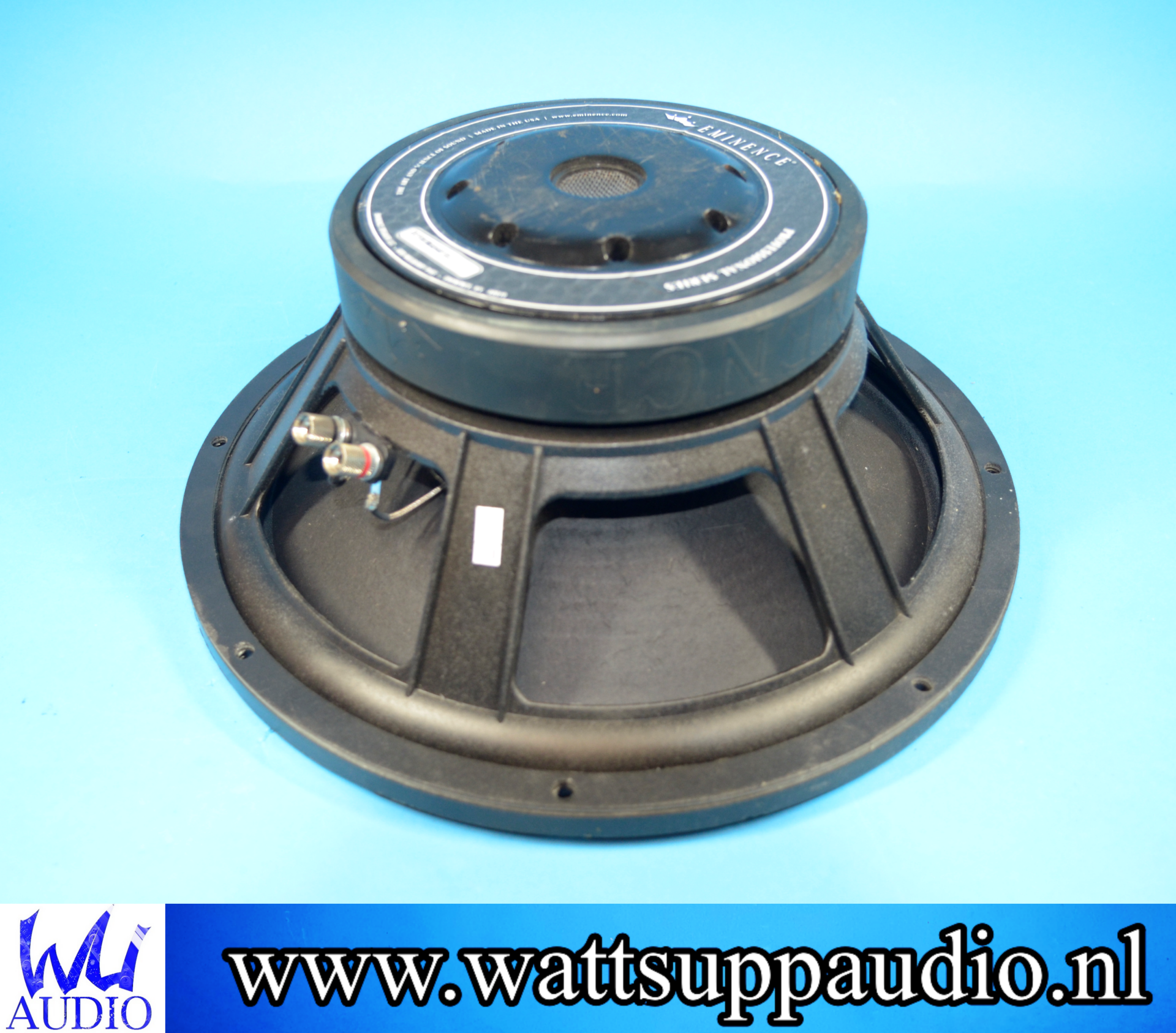

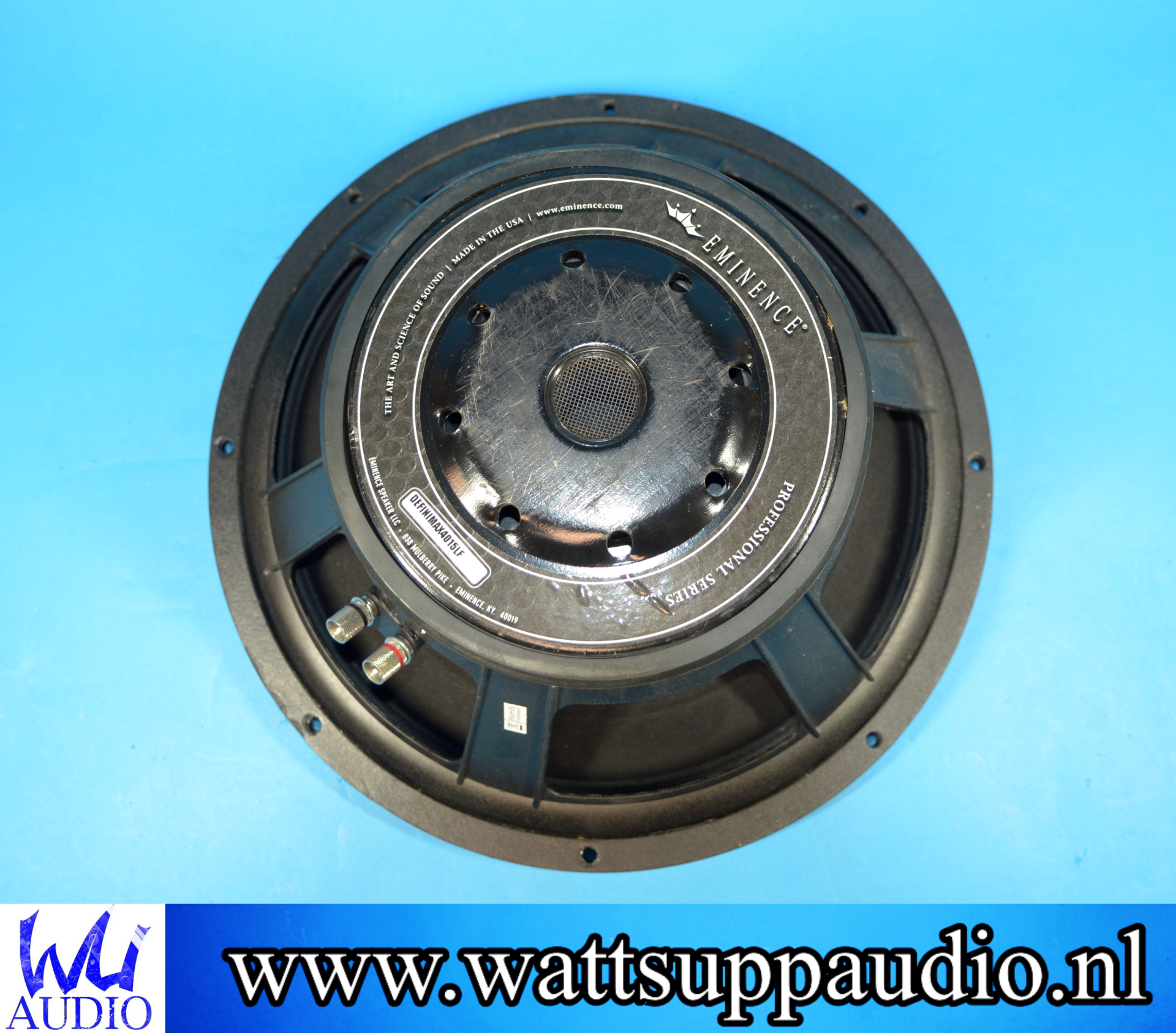

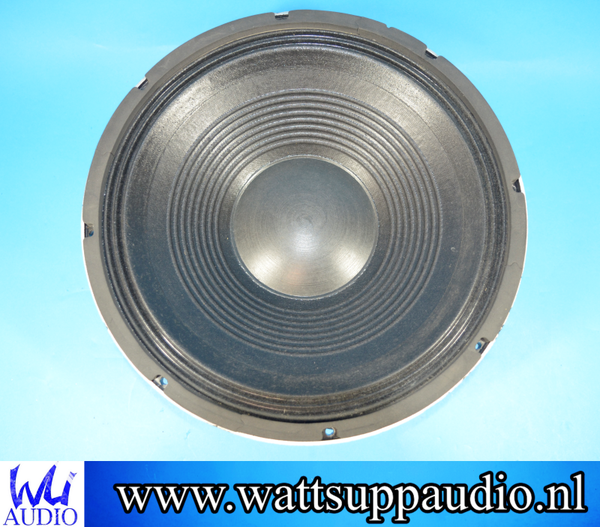

Eminence Definimax 4015 LF 15 inch woofer/speaker
€149.00
Eminence Definimax 4015LF ( 1 x )
- Condition: used ( tested / inspected )
- sale type: TAX/BTW 21%
- Stock : shipped within 24 hours
Info
- Type: PA 4015 LF
- Nominal Diameter: 15''
- Nominal Diameter: 381 mm
- Voice Coil: 4''
- Voice Coil: 101.6 mm
- Overall diameter: 386.3 mm
- Pitch Circle Diameter: 369.8 mm
- Section Diameter: 355.6 mm
- Diameter of fixing holes: 7 mm
- Depth: 166.7 mm
- Nominal Impedance: 8 Ohm(s)
- Nominal Load Capacity: 1200 W
- Maximum rated load: 2400 W
- Sensitivity (1 W / 1 m): 96 dB
- Frequency response: 35 - 1200 Hz
- Voice Coil Material: copper
- Magnet: Ferrite
- Depth of the magnetic gap: 9.53 mm
Thiele & Small Parameter
- Fs (Resonance Frequency): 42 Hz
- Re (DC resistance): 5.04 Ohm(s)
- Qms (mechanical quality): 6.73
- Le (inductance of the voice coil): 1.49 mH
- Qes (electrical quality): 0.54
- Qts (overall quality): 0.5
- Vas (equivalent volume): 115.5
- Mms (moving mass): 139 g
- BL (power factor): 18.4 T/m
- Xmax (maximum displacement): 9 mm
- Cms (elasticity of the suspension): 0.11 mm/N
- Sd (membrane area): 872.9 cm²
- Weight: 11.79 kg
- USA Made
- Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)
