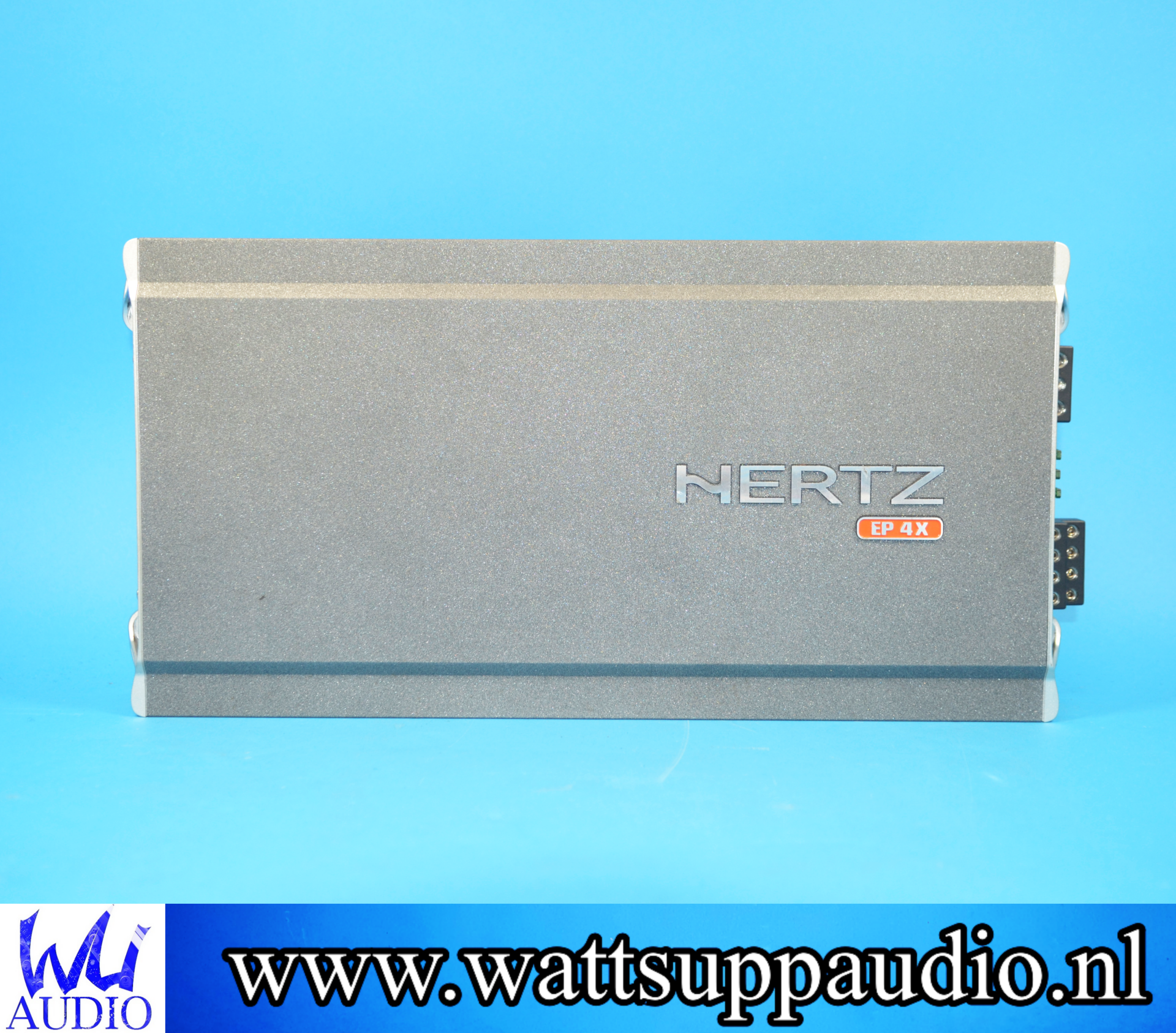

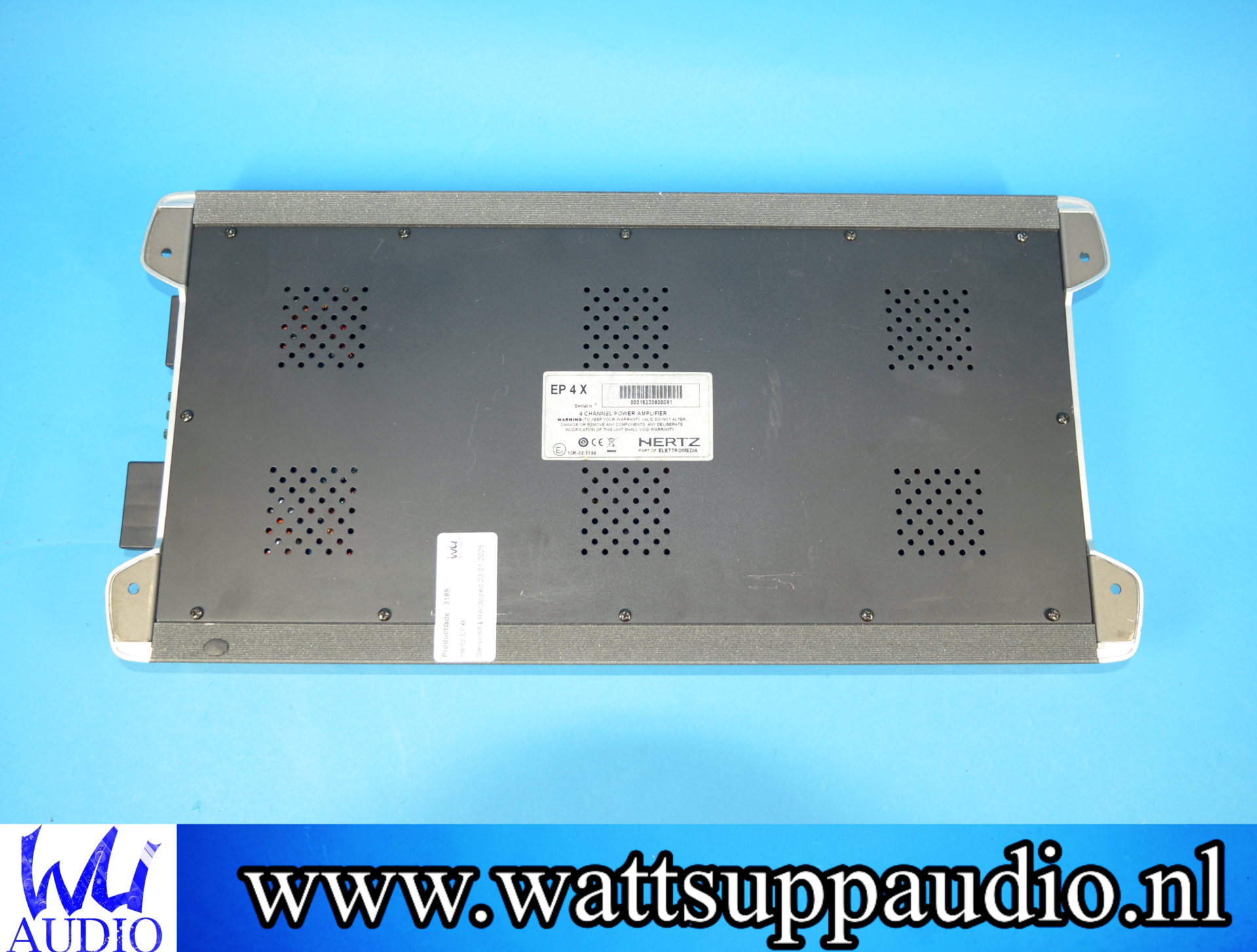

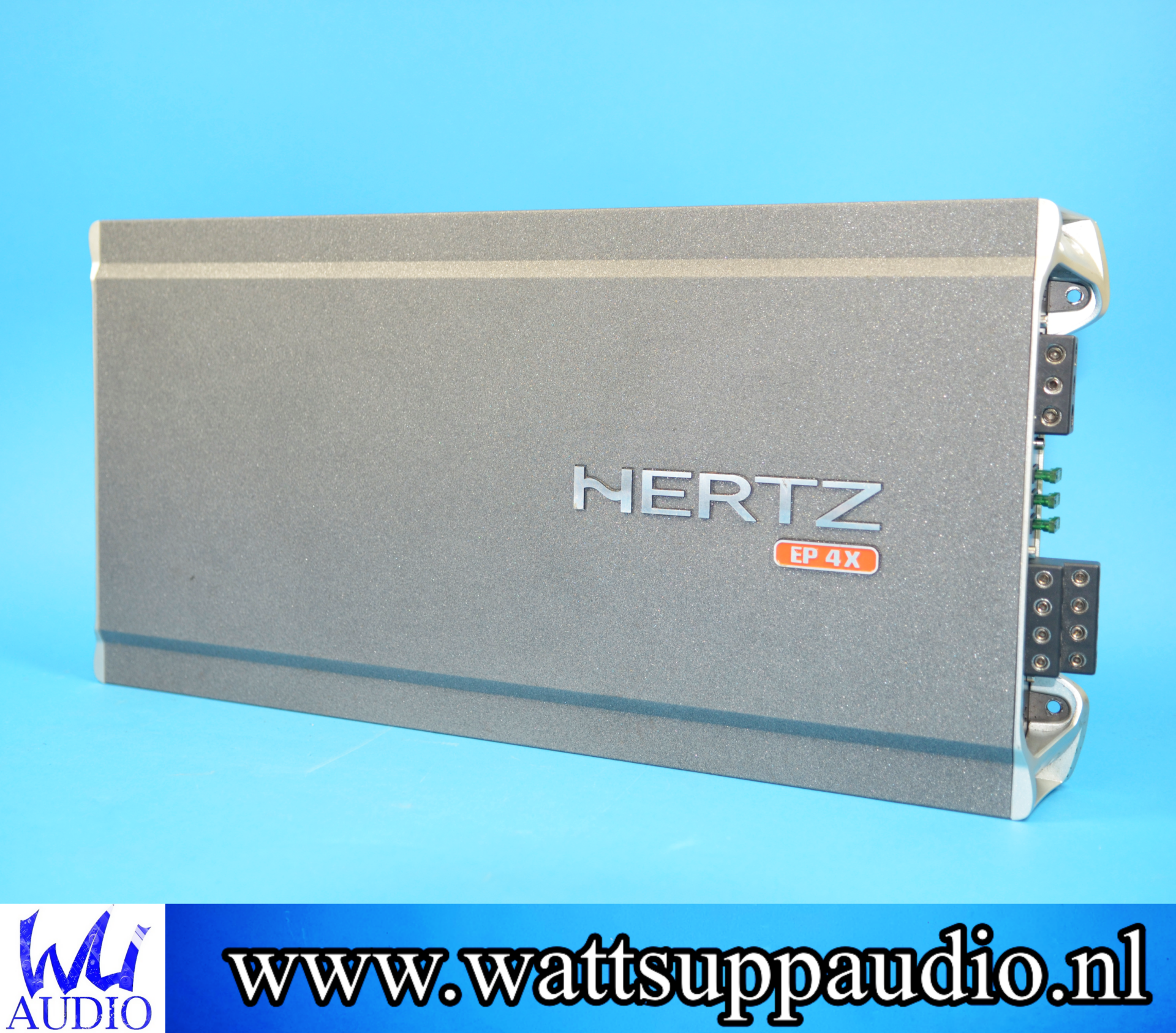

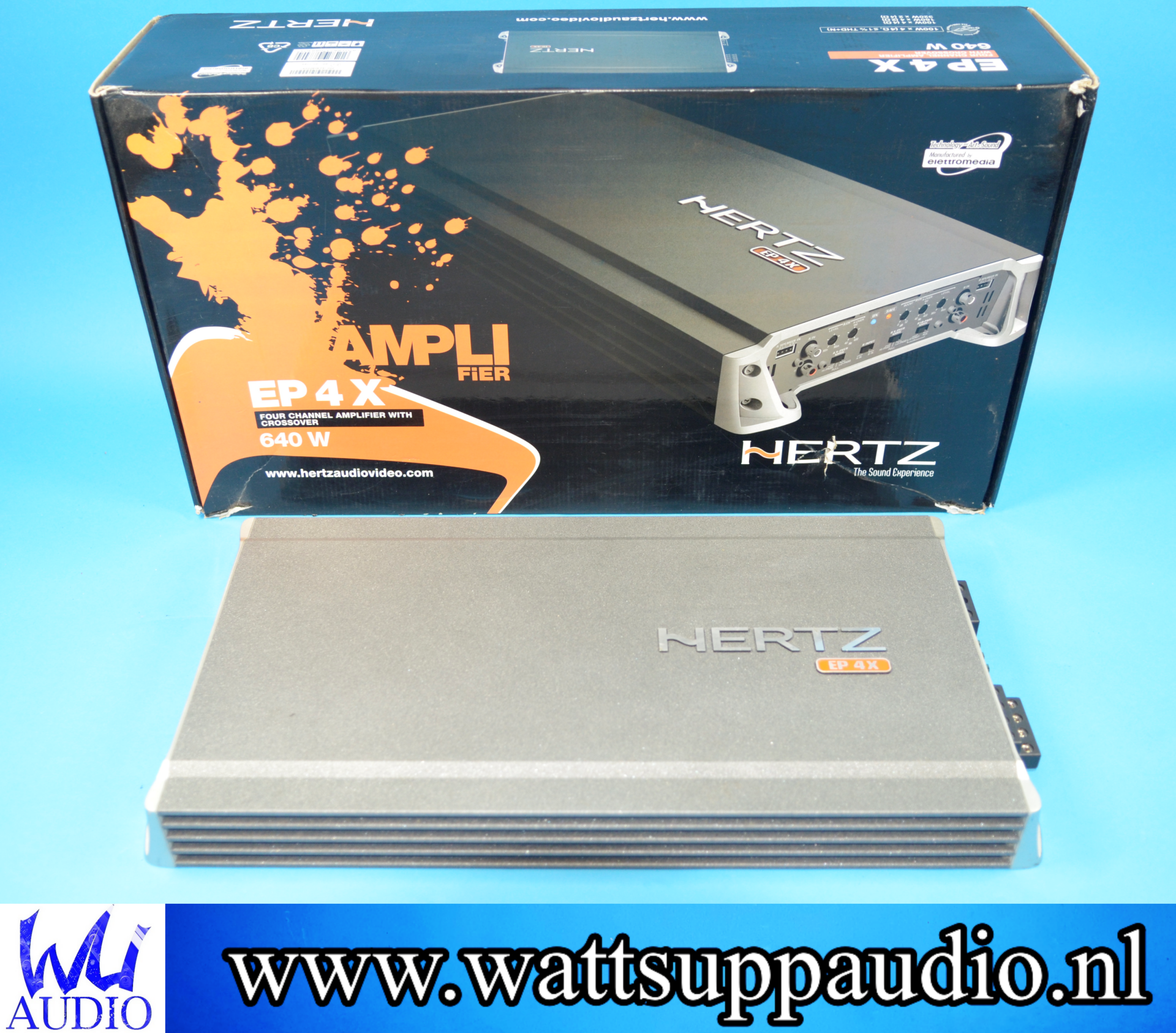

Hertz EP4X 4 channel amplifier

Hertz EP4X 4 channel amplifier
€179.00

Hertz EP4X



Sale info

  • Condition: Serviced ( recapped / tested / inspected )
  • sale type: margin
  • Stock : shipped within 24 hours

Product info:

  • RMS Power 4 Ch 100 W x 4 (4Ω)
  • RMS Power 4 Ch 160 W x 4 (2Ω)
  • 3 Ch 100 W x 2 (4Ω) + 320 W x 1 (4Ω)
  • 3 Ch 160 W x 2 (2Ω) + 320 W x 1 (4Ω)
  • 2 Ch 320 W x 2 (4Ω)
  • Distorsion - THD ( 1kHz @ 4 Ω): 0.08%
  • Bandwidth (-3 dB): 7 / 60k Hz
  • S/N Ratio (A weighted @ 1 V): 98 dB
  • Damping factor (1kHz @ 4 Ω): 130

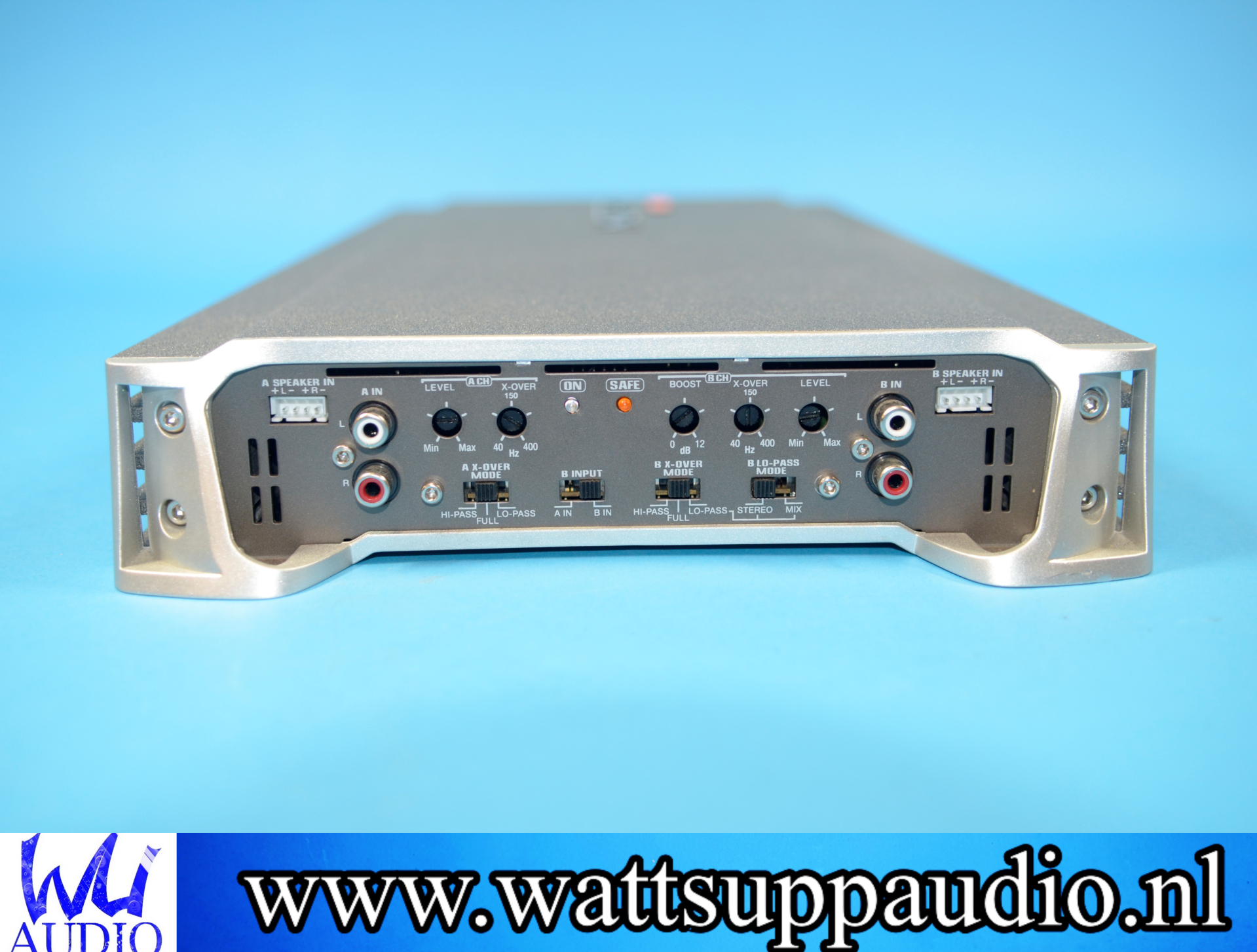

  • Pre-In sensitivity: 0.3 / 5V
  • Pre-In impedance: 15 kΩ
  • Speaker-In sensitivity: 1.4 / 24V
  • Speaker-In impedance: 470Ω
  • Remote In: 6 � 15 VDC - 1 mA
  • Remote Out : 12 VDC - 15 mA
  • ARTTM: Automatic Remote Turn-On/Off
  • with Speaker-In

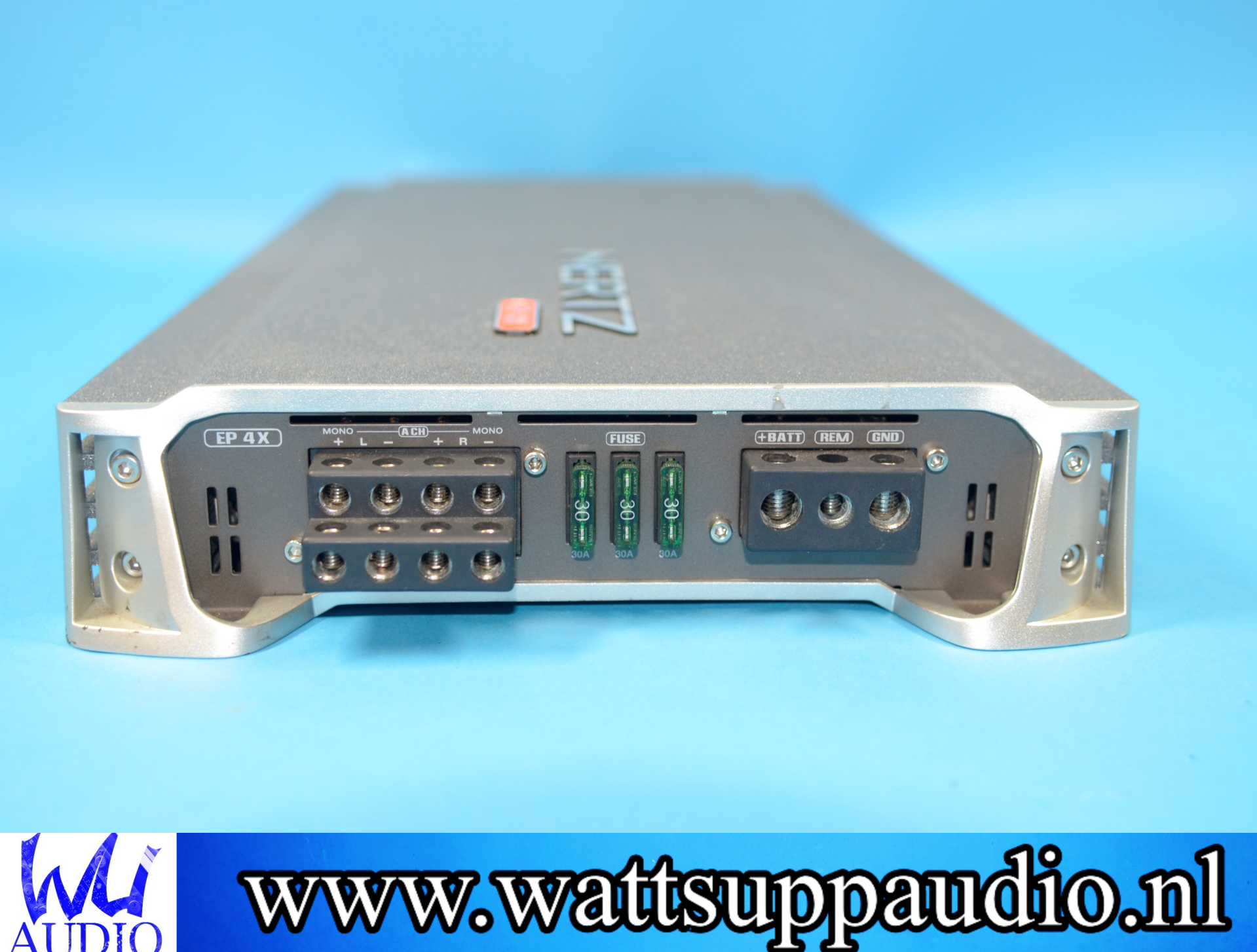

  • Fuse: 3 x 30 A
  • Max size (mm/inches): 240 x 500 x 54 / 9� 15/32 x 19� 31/32 x 2� 5/32

Service info:

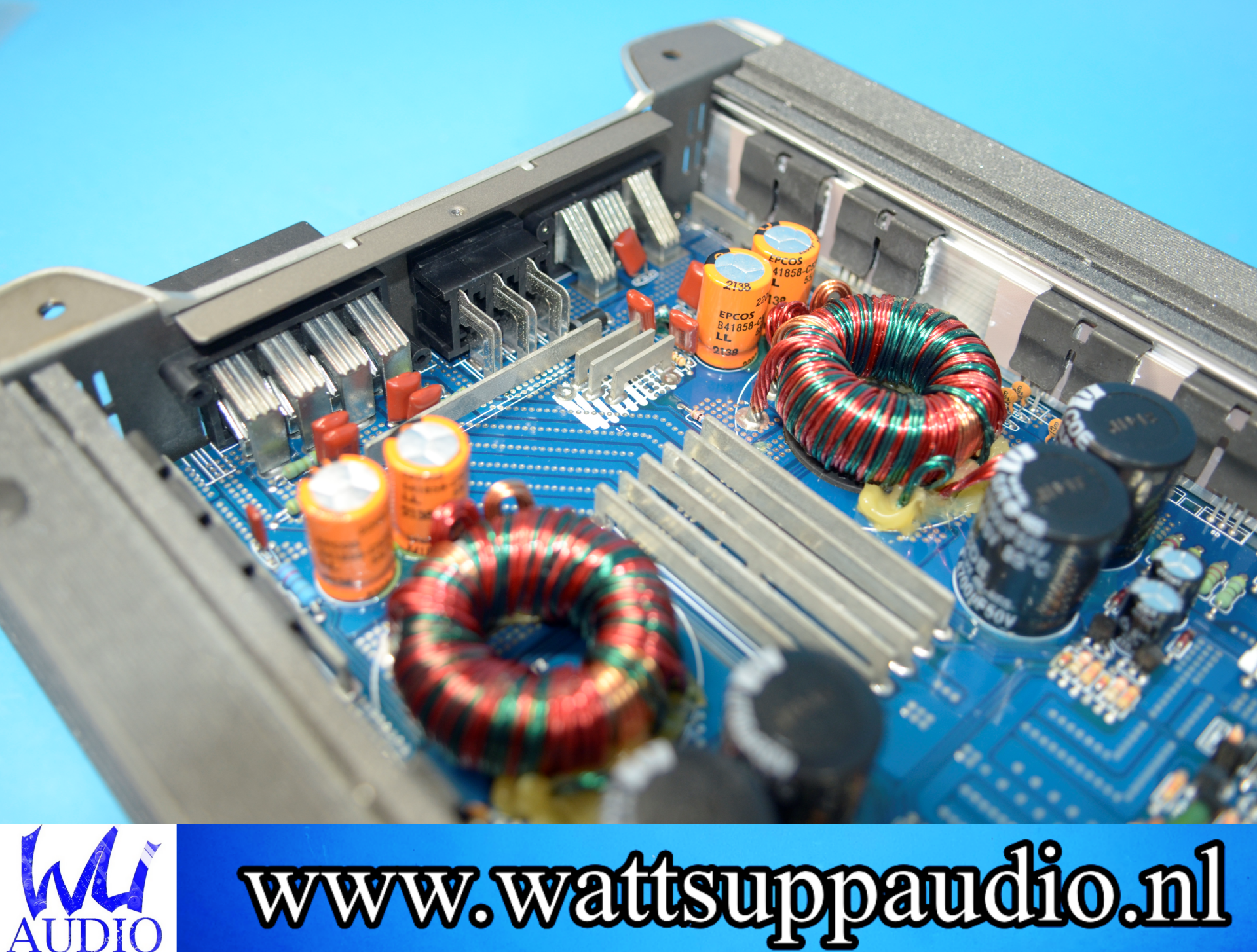

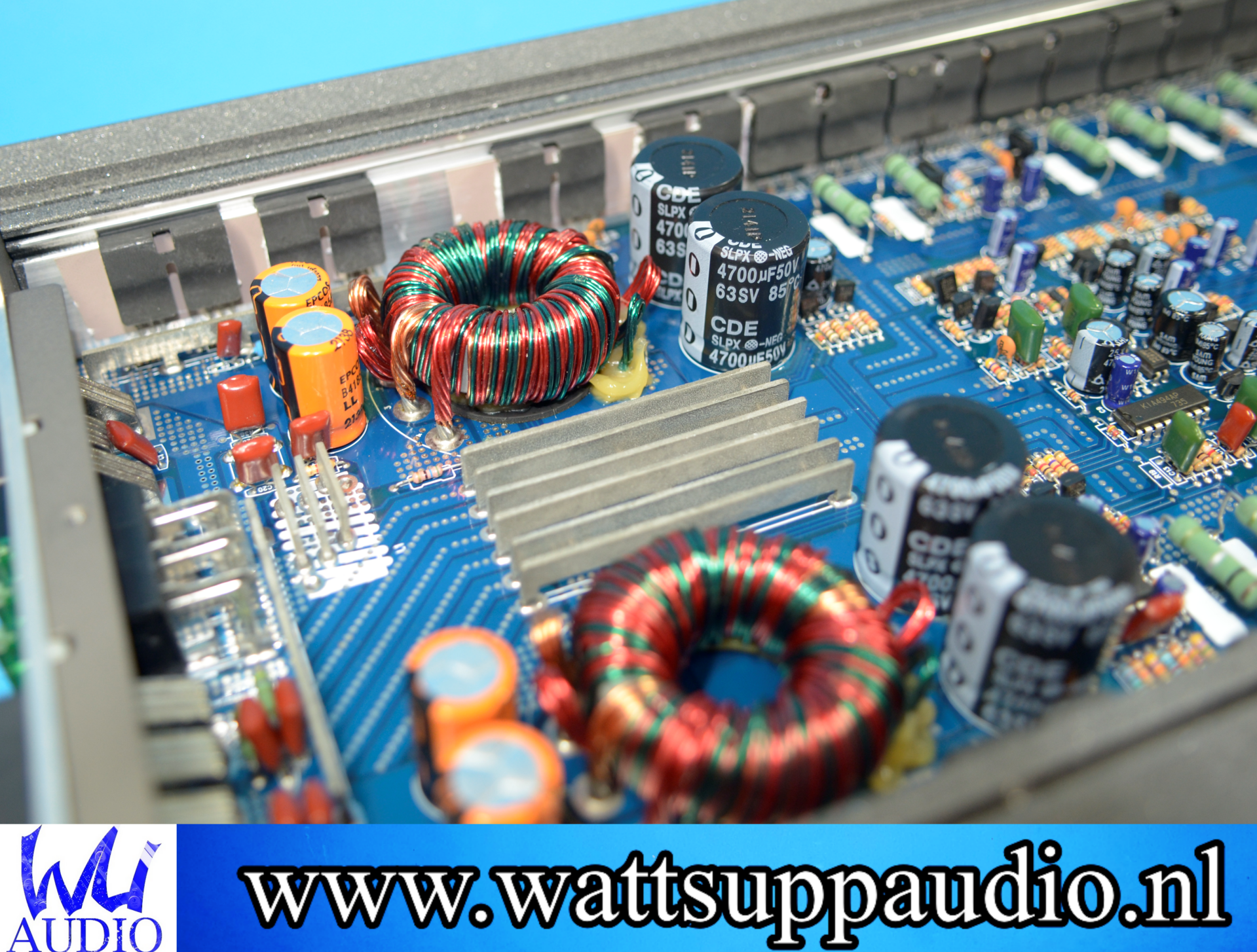

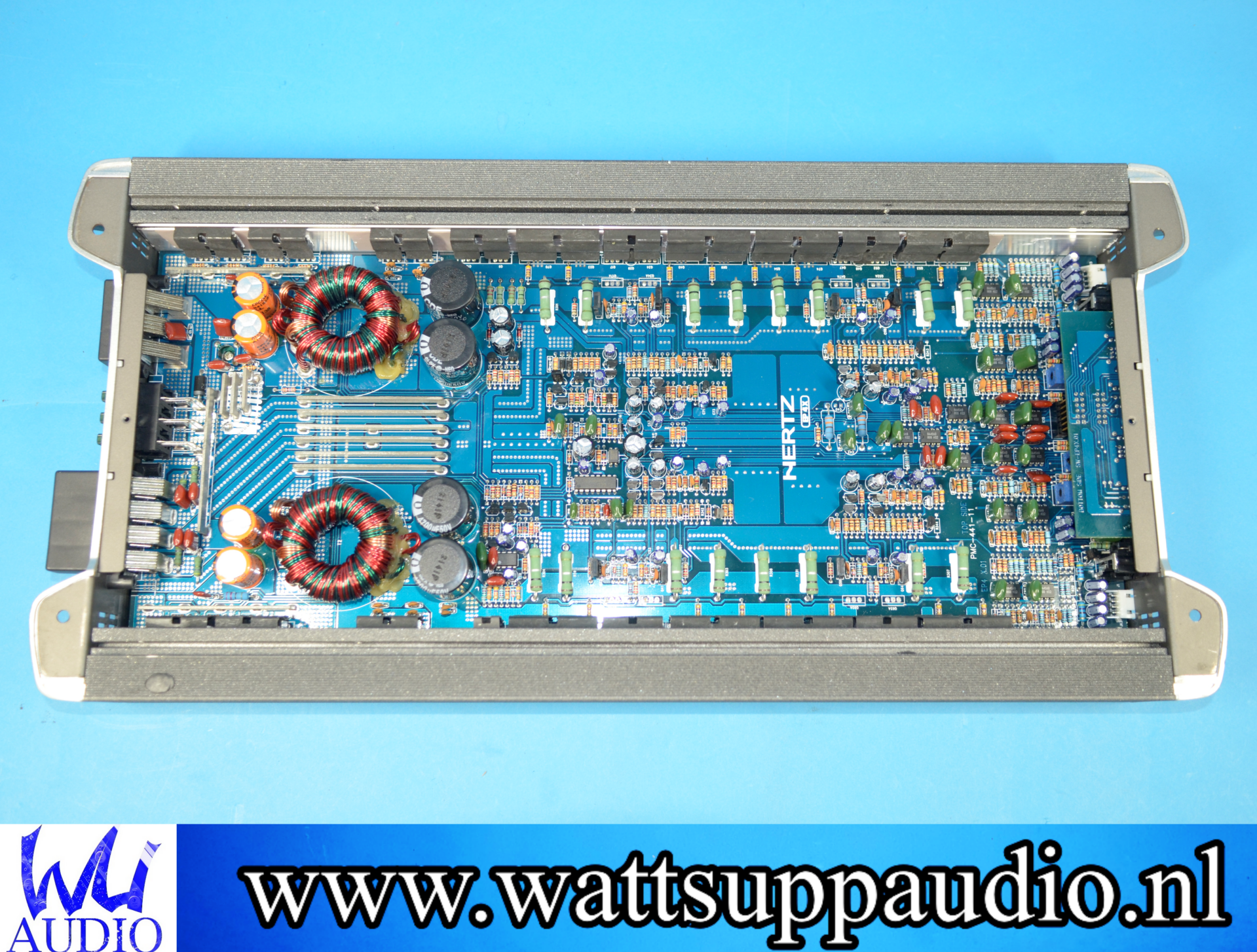

  • Recapped
  • General service procedure



  1. Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)
  2. Do you have questions ? use the whatsapp chatbox for your audio advice  or send e-mail (Contact info page)
  3. Info page > Shipping /  Payment / Warranty<
