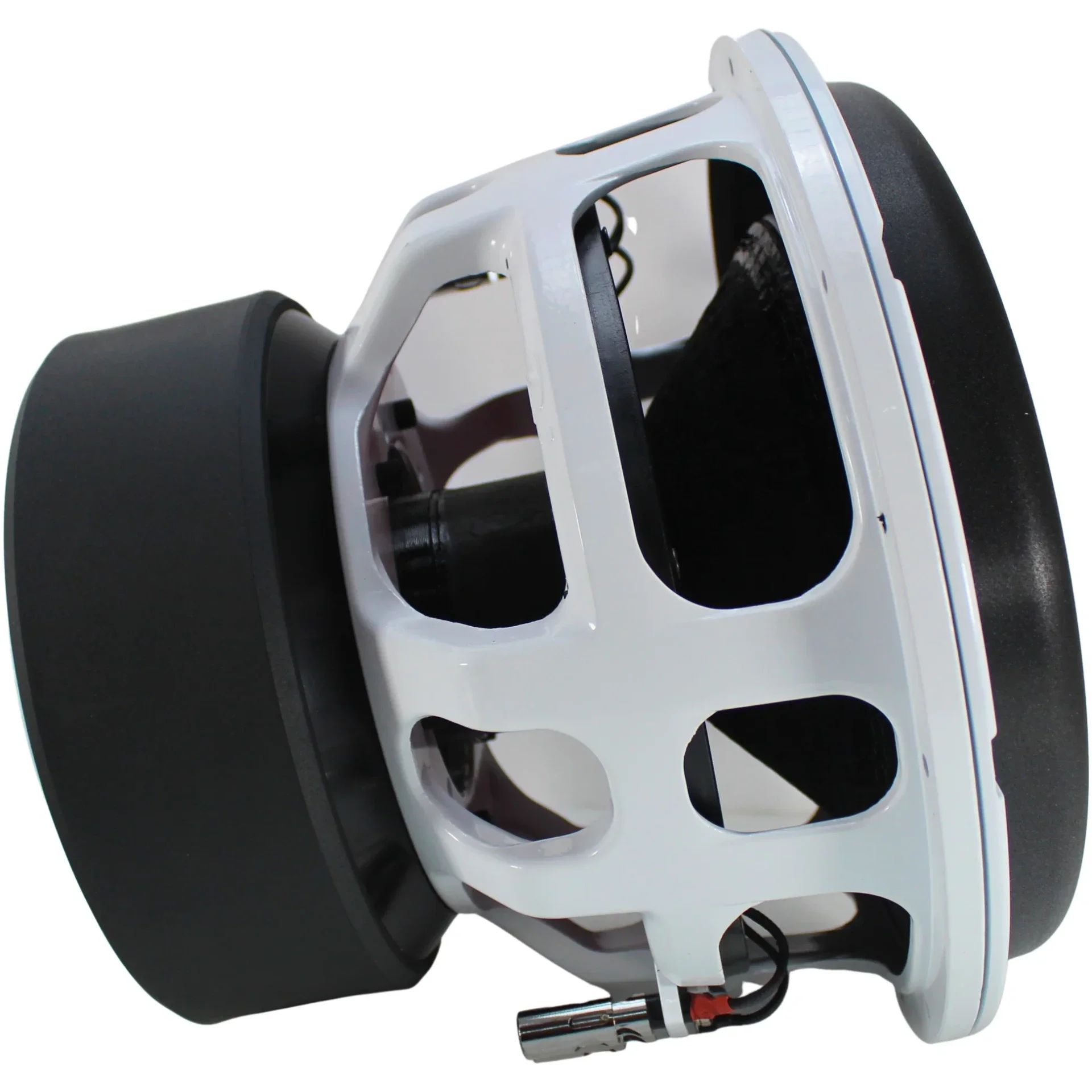

B2 Audio Rage 12 V4 12 inch subwoofer 2000W RMS

B2 Audio Rage 12 V4

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 4-7 days extra delivery time

Productinfo:

• RMS Power Handling: 2000 Watts
• Max Power Handling: 4000 Watts
• Push Terminal Wire Gauge: 4 Ga
• Nominal Impedance: Dual 2 Ohm
• Voice Coil Diameter: 3"
• Frequency Response: 10 Hz ~ 500 Hz
• Sensitivity: 88 dB
• Magnet Weight: 630 Oz
• Displacement Volume: 7.4 L / 0.26 cu.ft
• Displacement Volume: 7.4 L / 0.26 cu.ft
• Dual 2 ohm or Dual 1 ohm

Thiele & Small Parameters

• Free Air Resonance (Fs): 28.1 Hz
• Resistance (Re): 1.9 Ohm
• Mechanical Factor (Qms): 5.4
• Electrical Factor (Qes): 0.39
• Total Factor (Qts): 0.36
• Equivalent Volume (Vas): 28.9 L
• Compliance (Cms): 80 um/N
• BL Factor (BL): 183.4
• Moving Mass (Mms): 384.7 g
• Excursion Max (Xmax): 20 mm

Measurements:

• Overall Diameter: 12.24" / 311 mm
• Mounting Diameter: 11.11" / 282 mm
• Bolt Pattern Diameter:  11.57" / 294 mm
• Mounting Depth: 8.85" / 225 mm
• Overall Depth: 10.21" / 259 mm
