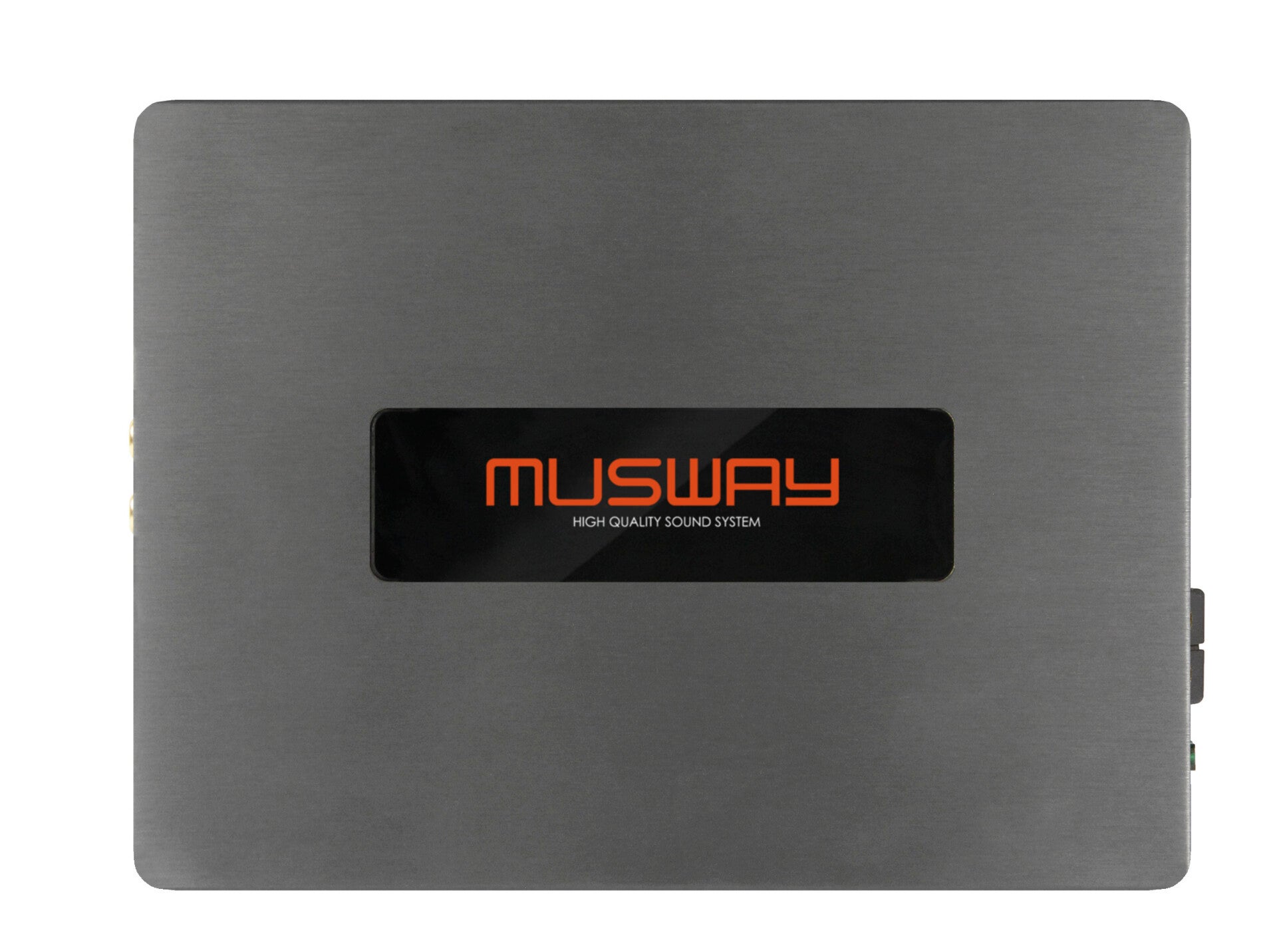

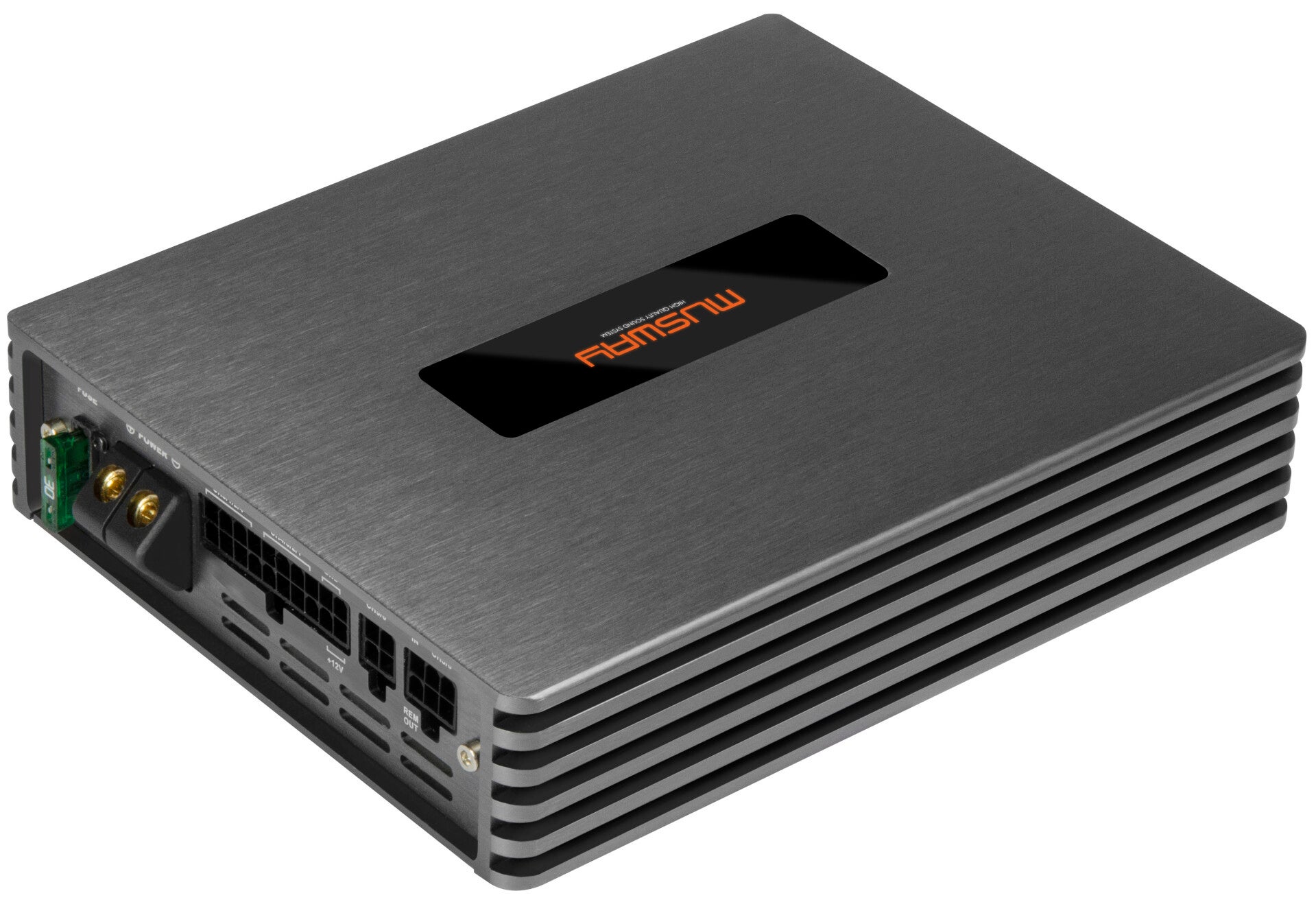

Musway M6v3 6 channel Amplifier With 8 channel DSP

Musway M6v3

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Specifications:

• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On

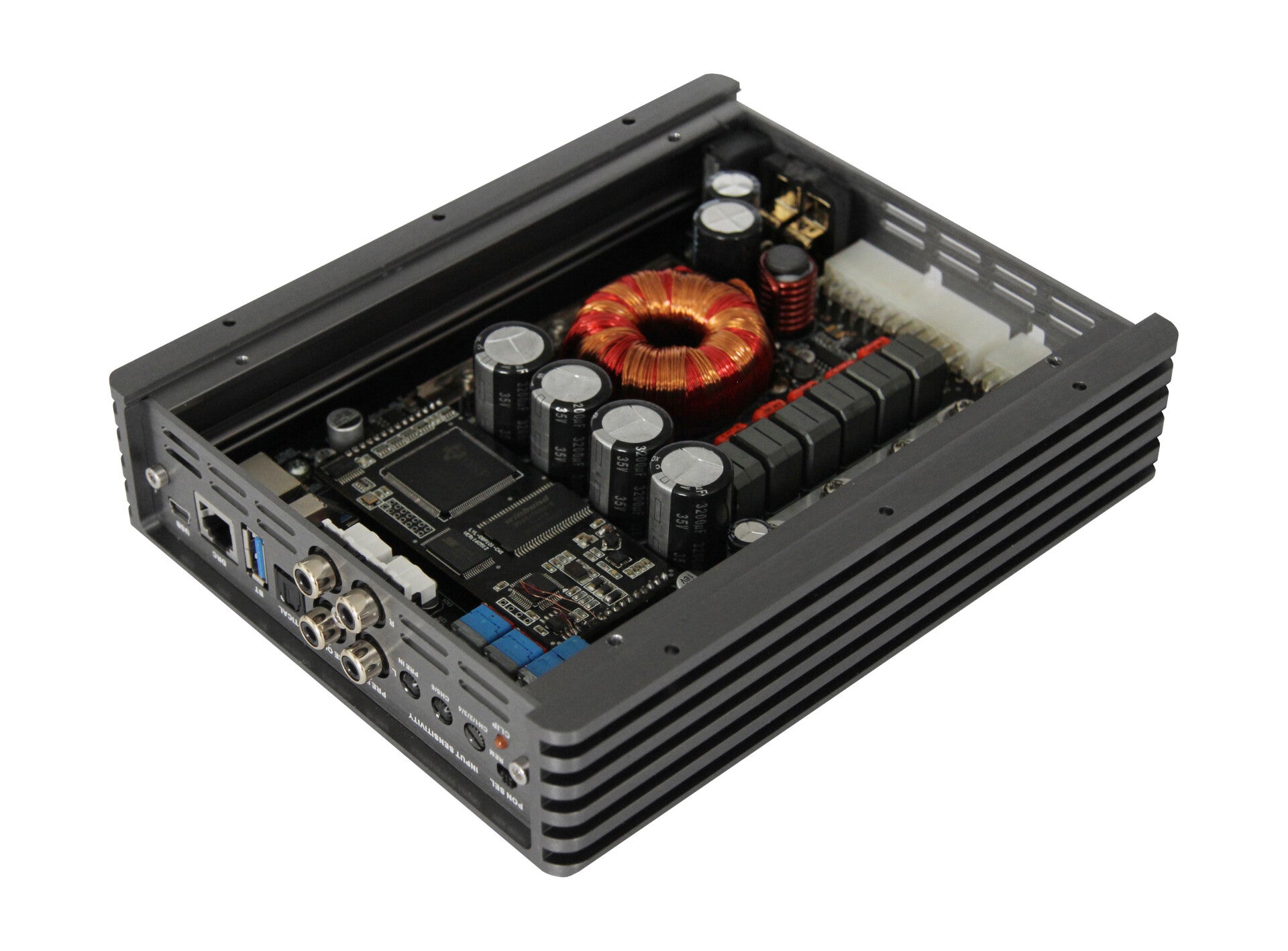

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• Quick Connect Terminal to connect MUSWAY Subwoofer Systems

Specifications:

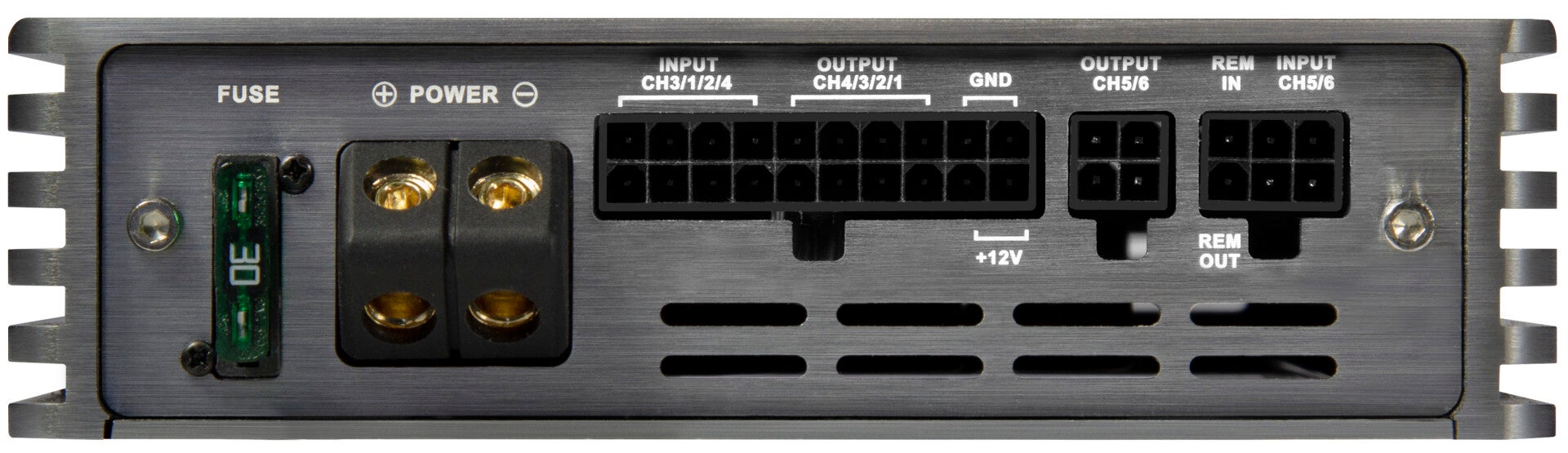

• 6 x 70/105 Watts RMS @ 4/2 Ohms or
• 3 x 210 Watts RMS @ 4 Ohms bridged
• 6 x High Level Input 4,8 – 20 V/RMS
• 6 x RCA Low Level Input* (RCA) 2 – 6 V/RMS
• 1 x AUX Input/Stereo (RCA) 2 – 6 V/RMS
• 1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
• 6 x Loudspeaker Output amplified
• 2 x Pre-Amplifier Output (RCA) 4 V/RMS (configurable via DSP)
• Dimensions: 150 x 44 x 220 mm
• only with optional MPK-RCA6/MPK-RCA6-PP cable set

Owner's Manual

DSP Software
