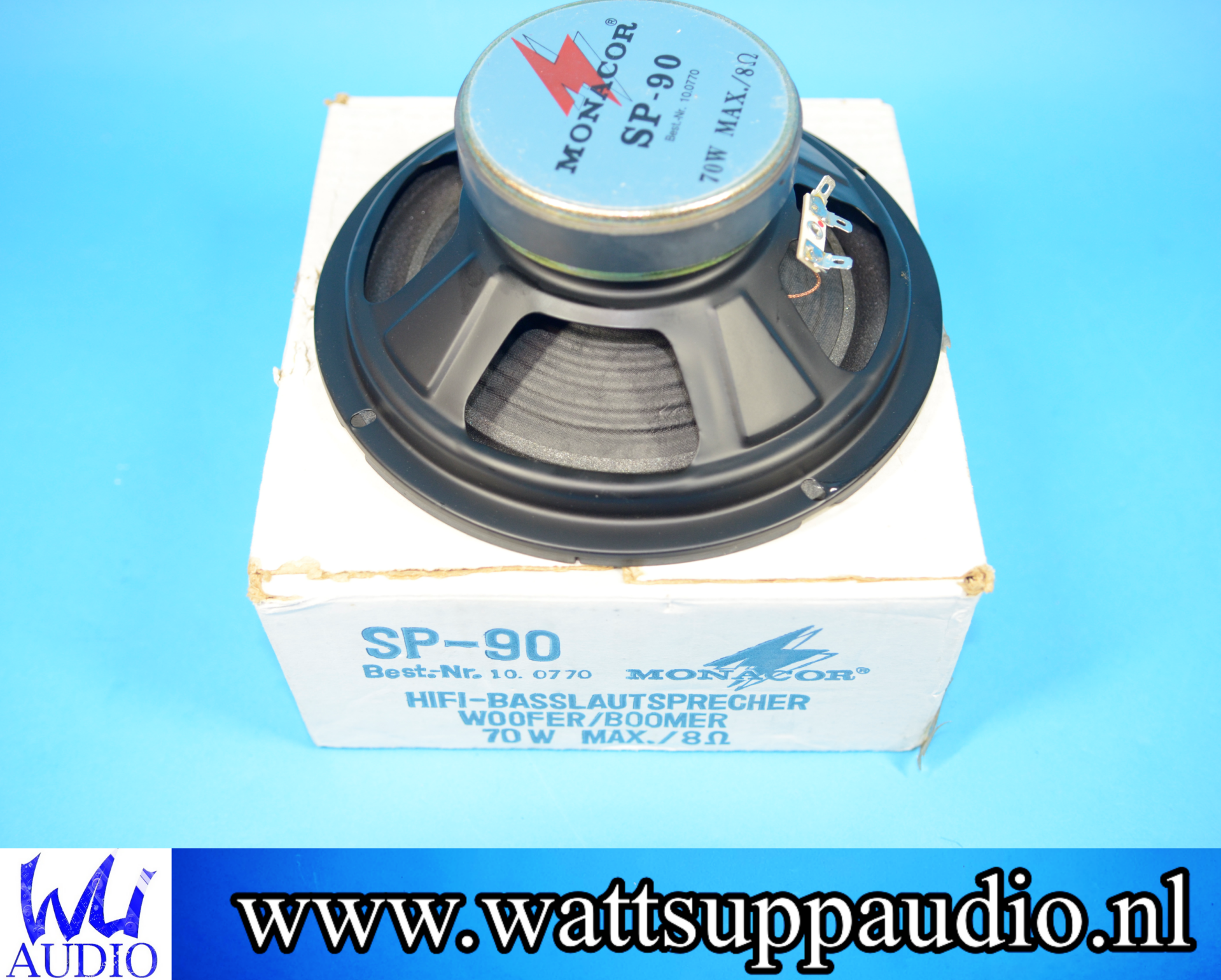

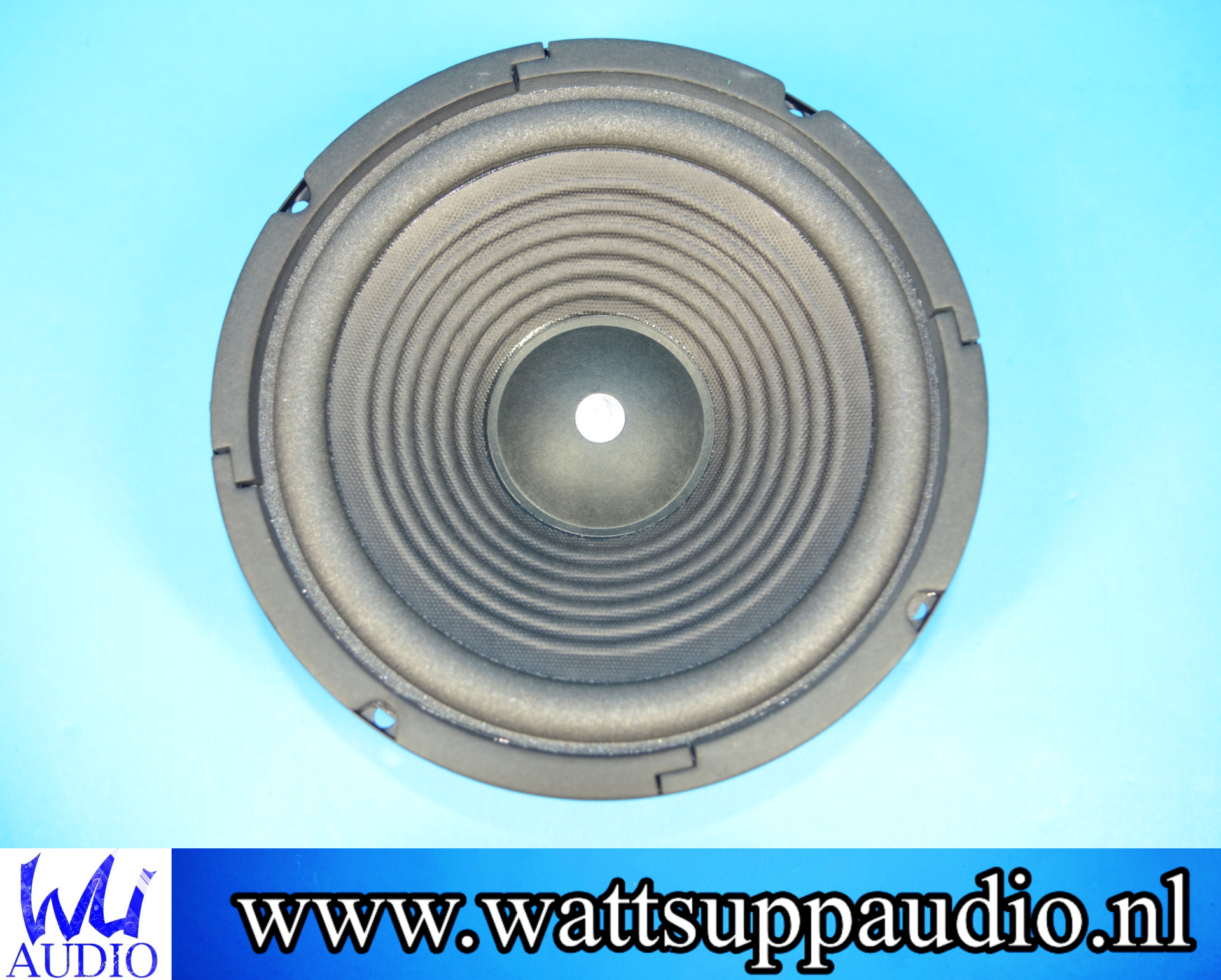

Monacor SP-90 8 inch woofer / speaker

Monacor SP-90 ( 1 x )

Sale info

• Condition: used ( inspected / tested )
• sale type: margin
• Stock: shipped within 24 hours

InfoM

• Impedance (Z) 8 Ω
• Transmission technology cable
• Frequency range f3-8,000 Hz
• Resonant frequency (fs) 45 Hz
• Power rating (RMS) 35 W
• Peak music power output (MAX) 70 W
• SPL 92 dB/W/m
• Suspension compl. (Cms) 0.8 mm/N
• Moving mass (Mms) 17 g
• Mech. Q factor (Qms) 3.36
• Electr. Q factor (Qes) 0.68
• Total Q factor (Qts) 0.57
• Equivalent volume (Vas) 42 l
• DC resistance (Re) 6.5 Ω
• Voice coil induct. (Le) 0.5 mH
• Voice coil diameter Ø 25 mm
• Voice coil former aluminium
• Linear excursion (XMAX) ± 2 mm
• Eff. cone area (Sd) 210 cm2
• Magnet weight 380 g
• Magnet diameter Ø 100 mm
• Mounting cutout Ø 185 mm
• Mounting depth 81 mm
• Mounting hole diameter Ø 192 mm
• Hole spacing X-axis 135 mm
• Hole spacing Y-axis 135 mm
• Dimensions Ø 205 mm x 90 mm
• Outside diameter Ø 205 mm
• Width Ø 205 mm
• Height Ø 205 mm
• Depth 90 mm
• Colour black
• Admiss. ambient temp. 0-40 °C
• Weight 1.223 kg
• Packing unit 1
• Type of speaker 8"
• Packaging dimensions (W x H x L) 0.21 x 0.1 x 0.21 m
• Gross weight 1.388 kg
• Net weight 1.223 kg

1. Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)

2. Do you have questions ? use the whatsapp chatbox for your audio advice  or send e-mail (Contact info page)
3. Info page > Shipping /  Payment / Warranty<
