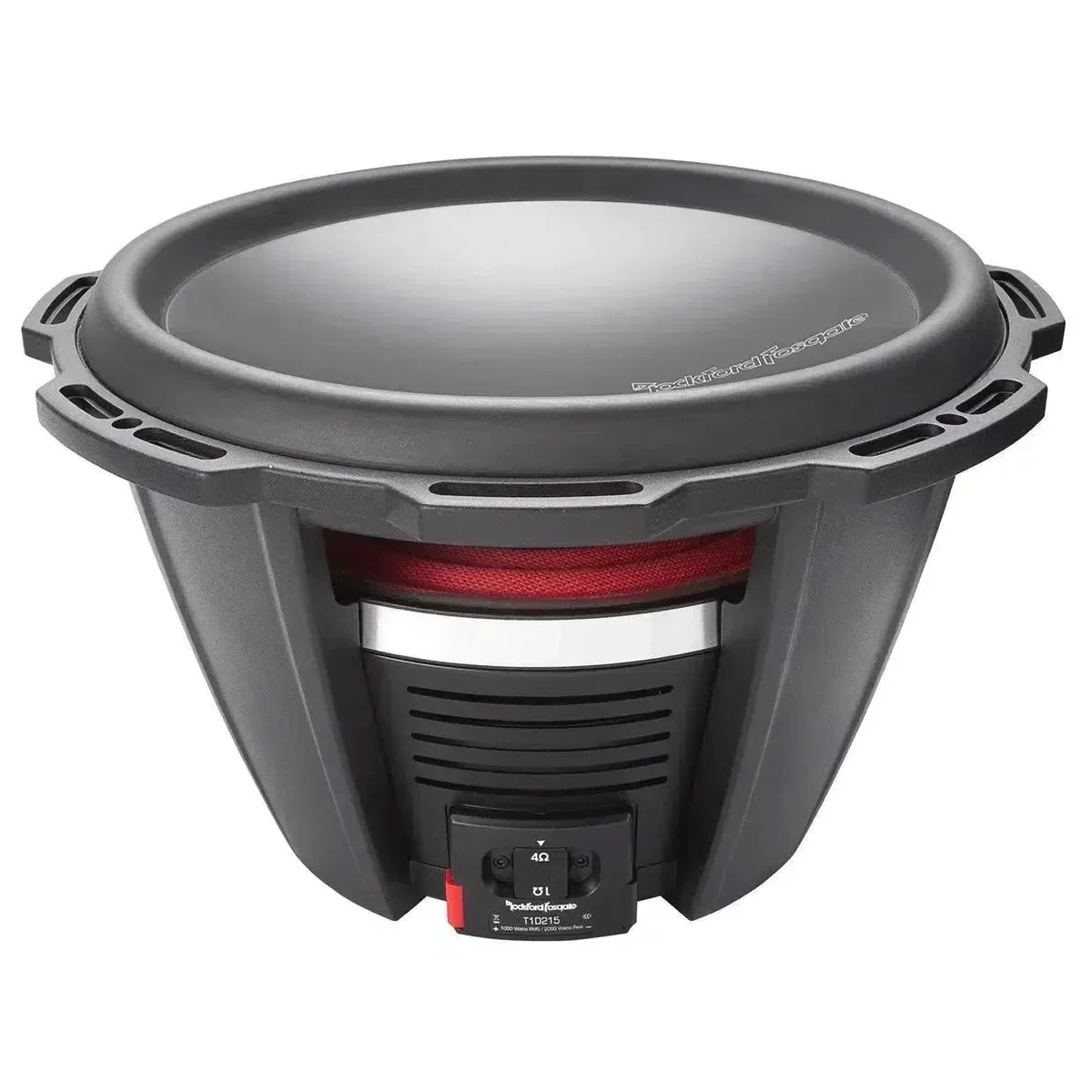

Rockford Fosgate POWER T1D215/T1D415 15 inch subwoofer

Rockford Fosgate POWER T1D215/T1D415

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Productinfo

• Symmetrical dual progressive roll tear resistant poly-cotton spiders
• Periodic-stitched fatigue resistant tinsel lead wire
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Optimized and matched magnetic and complicance geometry
• Kevlar fiber reinforced paper cone
• Anodized aluminum voice coil former / copper clad aluminum wire
• Rigid die-cast aluminum basket
• Anodized aluminum heat sinking dust cap
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Optimized pole piece and spider venting
• 15" (38cm) subwoofer
• RMS power consumption: 1000 watts
• Max. load capacity : 2000 Watt
• Voice coil diameter : 3.0"
• Magnet weight : 6.49 kg
• Installation depth : 213 mm
• Displacement of the woofer : 5.4 liters
• Cut-out diameter : 354 mm
• Shipping weight : 24.4 kg.
• Available in Dual 2 Ohm and Dual 4 Ohm
• D4 (2x4 Ohm) Variant
  • Nominal impedance : Dual 4-Ohm
  • Fs (Hz) : 27
  • Qts : 0.51
  • Qms : 6.00
  • Le (mH) : 3.6
  • SPL (dB @ 1w/1m) : 87.5
  • Qes : 0.55
  • Vas (liter) : 102.0
  • Xmax (mm) : 16.4
  • Re (Ohm) : 6.50
  • Sd (cm2) : 845
  • Closed housing volume (Vb) : 63.7 liters
  • Bass reflex enclosure volume (Vb) : 75.3 liters
• D2 (2x2 Ohm) variant
  • Nominal impedance Dual 2-Ohm
  • SPL (dB @ 1w/1m) 87.9
  • Qes 0.46
  • Vas (liters) 102
  • Xmax (mm) 16.4
  • Re (Ohm) 3.25
  • Fs (Hz) 26.3
  • Qts 0.43
  • Qms 6.50
  • Le (mH) 1.6
  • Sd (cm2) 845
  • Closed housing volume (Vb) : 63.7 liters
  • Bass reflex enclosure volume (Vb) : 75.3 liters

Download Manual
