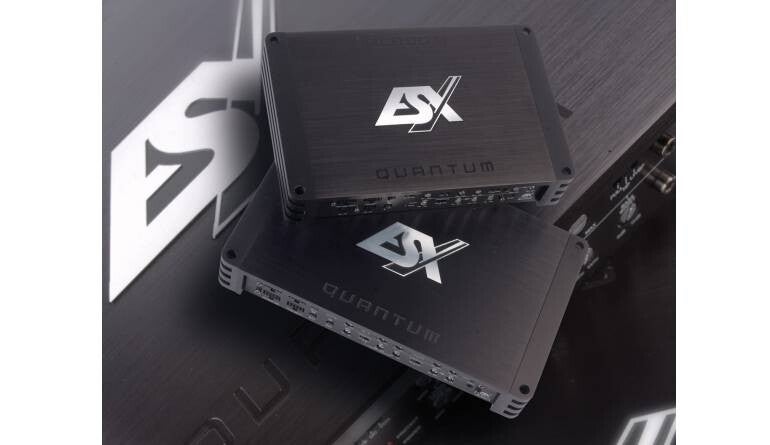

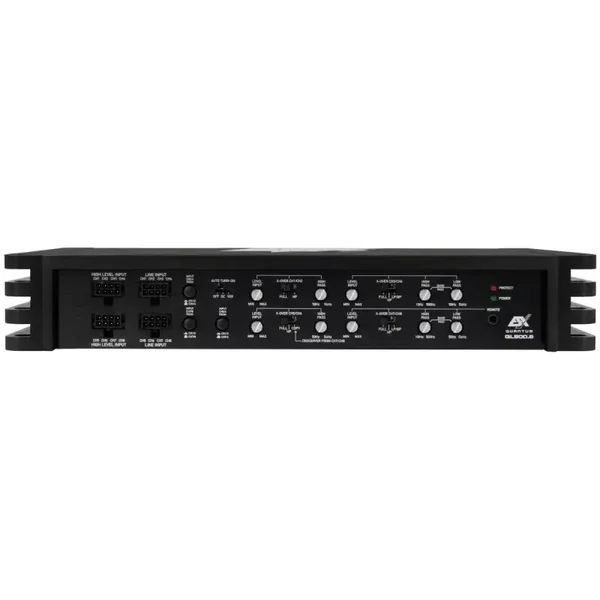

ESX Quantum QL800.8 8 channel amplifier

ESX Quantum QL800.8

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Productinfo:

• Advanced Class D Technology with very high Efficiency
• Dynamic Headroom Technology*
• Max. DHR Output Power per Channel up to 160 Watts RMS @ 2 Ω
• Selected and audiophile tuned Components
• Massive Aluminum Heatsink
• Heavy lateral Die-cast Parts
• High Level Inputs with Error Protection System (EPS)
• Auto Turn-On Function
• Start/Stop Ready
• MOSFET PWM Power Supply
• 3-Way Protection Circuit
• Compact Bass Remote Controller
• 8-Channel Class D Digital Amplifier
• 8 x 80/125 Watts RMS @ 4/2 Ω
• 4 x 250 Watts RMS @ 4 Ω bridged
• HPF 50-5000 Hz (CH1/2 + CH5/6)
• HPF 10-500 Hz (CH3/4 + CH7/8)
• LPF 50-5000 Hz (CH3/4 + CH7/8)
• Copy-Mode CH7/8 > CH5/6
• RCA Inputs via Molex
• RCA Outputs via Molex
• Bandpass Function  (CH3/4 + CH7/8)
• Input Selector CH2/4/6/8
• Dimensions 285 x 47 x 170 mm
• Efficiency up to 87%

Owner's Manual
