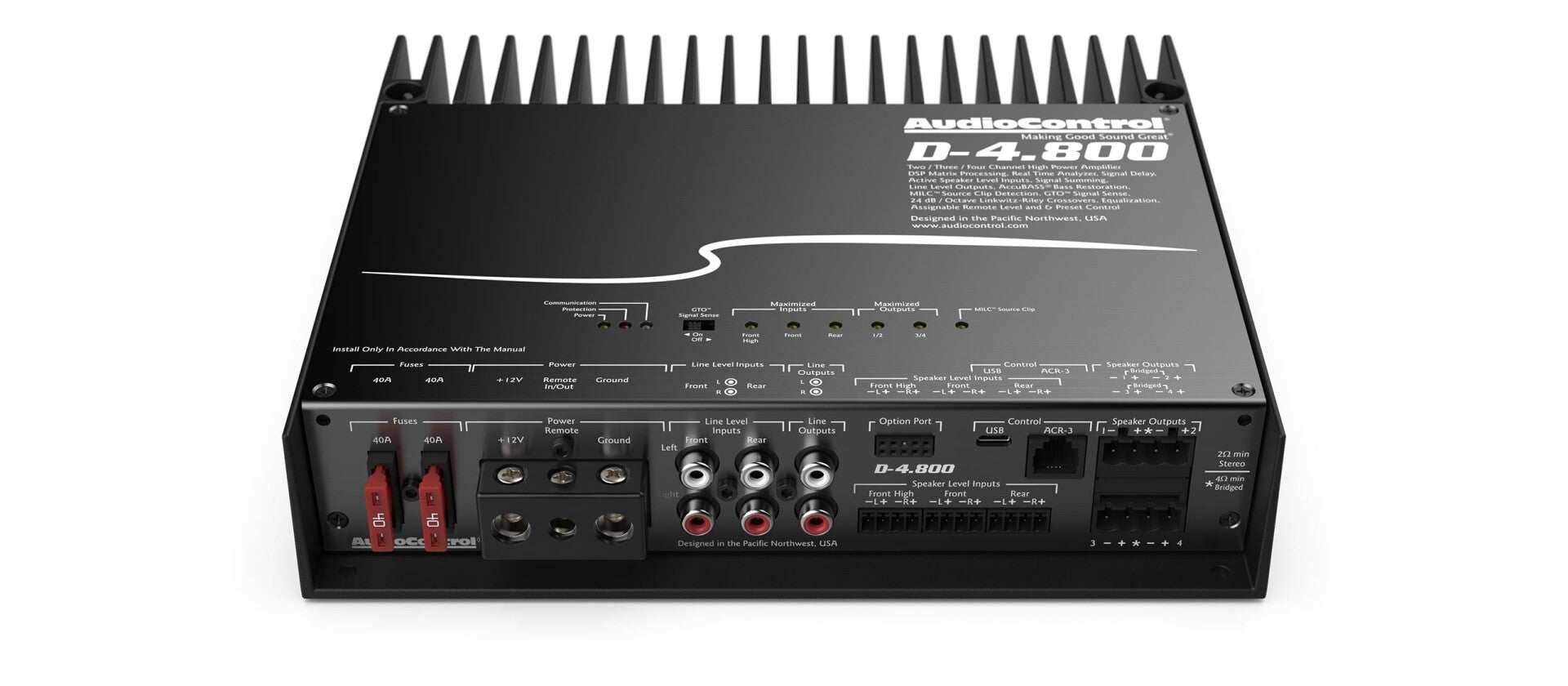

Audiocontrol D-4.800 4 channel DSP amplifier

Sold out
Audiocontrol D-4.800 4 channel DSP amplifier
€999.00

Audiocontrol D-4.800



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 3 - 4 days extra delivery time

info:

  • Built-in DSP
  • Configurable as 4/3/2-channel amplifier
  • 4 x 200 watts into 2 ohms
  • 4 x 125 watts into 4 ohms
  • 400 watts bridged to 4 ohms
  • AccuBASS® processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • Active speaker level inputs (6 channels) for OEM integration
  • 4 preamplifier inputs
  • 2 assignable preamplifier outputs
  • Solid, one-piece aluminum housing
  • Input and output RTA for precise and well-founded tuning
  • Input and output delay
  • 12 and 24 dB/octave Linkwitz-Riley crossovers
  • 30-band equalizer
  • Optional AC-BT24 Bluetooth streamer/programmer
  • The DM Smart DSP app is available as a download for Mac/PC
Dashboard
  • Connect your laptop to the D-4.800 via AudioControl's DM Smart DSP app, a full-featured matrix DSP interface that gives you instant and clear control over every aspect of your processor.
  • Route each input to each output, adjust gain, delay and polarity and precisely tune the D-4.800 with a 30-band EQ. High, low and bandpass can be set for each output with 12 or 24 dB/octave Linkwitz-Riley crossovers.
  • For OEM integration, you can use the input and output RTAs available for each input and output to easily identify and sum the signals from the factory speakers.
  • With a clear user interface and intuitive workflow, AudioControl's DM Smart DSP app takes the guesswork out of tuning your system to your exact specifications.

SPECIFICATIONS
INPUTS

  • Preamplifier inputs: 4 balanced
  • Preamplifier input voltage range: 250 mV - 8 Vrms
  • Speaker level inputs: 6
  • Input voltage range for speaker level: 3 V - 40 Vrms

OUTPUTS

  • Continuous (RMS) rated power at 14.4 V:
  • 4 Ω - 125 W x 4 RMS
  • 2 Ω - 200 W x 4 RMS
  • Bridged 4 Ω - 400 W RMS
  • Preamplifier outputs: 2
  • Maximum preamplifier output: 8.5 V RMS

PERFORMANCE

  • Frequency response: 20 Hz - 24 kHz
  • Signal-to-noise ratio: 102 dBA, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Current/earthing wire thickness: 25mm²
  • Fuse rating: 2 x 40 A

WEIGHT & DIMENSIONS

  • Dimensions: 22.8 x 20 x 5.3cm
  • Weight: 2.3 kg
