JL Audio MX600/3 3 channel amplifier

JL Audio MX600/3 3 channel amplifier
€499.00

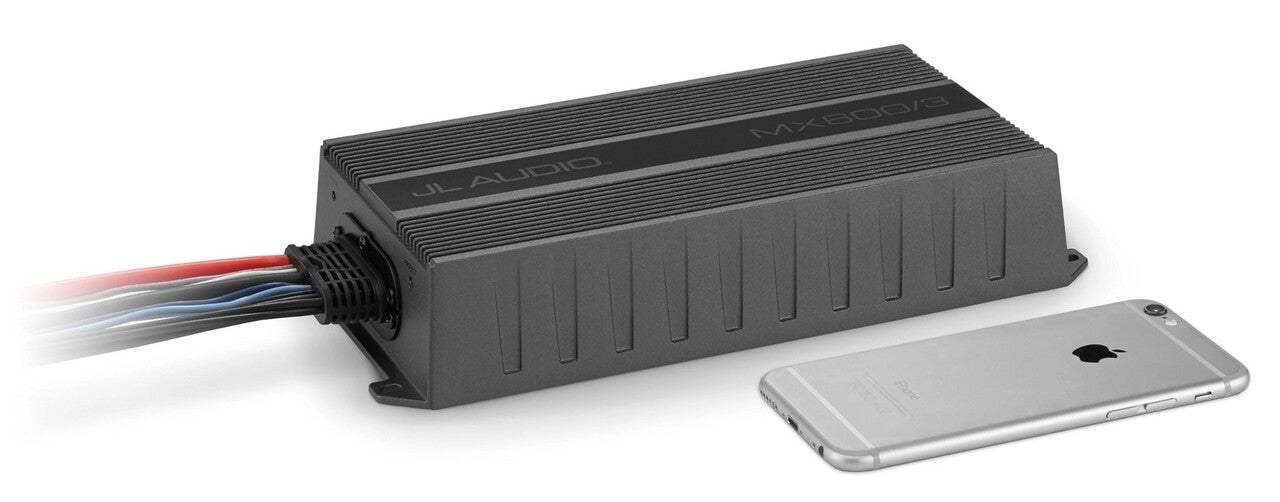

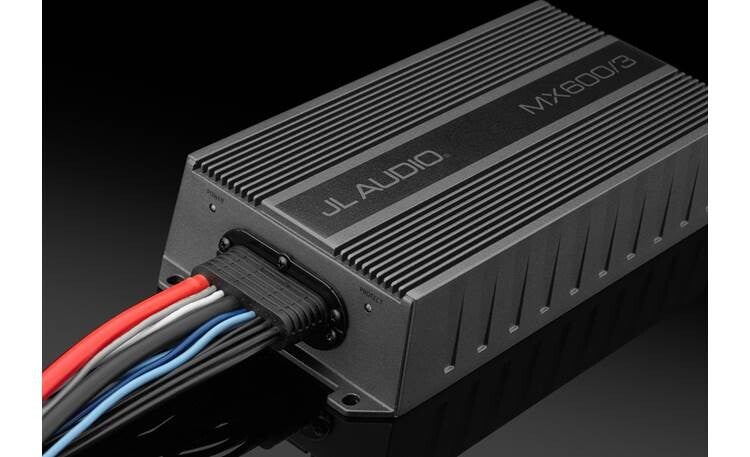

JL Audio MX600/3



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 3-channel system amplifier in Class D, 100 W x 2 + 400 W x 1 @ 2 Ω / 75 W x 2 + 250 W x 1 @ 4 Ω - 14.4V
  • The MX600/3 3-channel amplifier utilizes JL's high-speed NexD™ switching design to deliver plenty of clean power without stressing loading systems.
  • Its tiny, cast aluminum housing is highly corrosion-resistant and waterproof to IPX7.
  • With an output of 75 W x 2 into 4 ohms and 400 watts for a subwoofer system, the MX600/3 is a great all-in-one solution for running a complete audio system from a single, ultra-compact chassis.
  • The integrated filters include a 12 dB/octave high-pass crossover for the main channels and a dedicated 24 dB/octave low-pass crossover for the subwoofer channel.
  • Other features include a bass boost EQ, a variable infrasonic filter and a polarity switch for the subwoofer output.
  • A dual range input section accepts a variety of input voltage levels, from line level to high power speaker level signals.
  • This amplifier has a robust powder-coated surface, a sealed cover for the controls and stainless steel hardware for a long service life.

Rated continuous power (RMS) at 14.4 V

  • Main channels @ 4 Ω : 75 W RMS x 2
  • Main channels @ 2 Ω : 100 W RMS x 2
  • Main channels - bridged @ 4Ω :200 W RMS x 1
  • Subwoofer channel @ 4 Ω : 250 W RMS x 1
  • Subwoofer channel @ 3 Ω : 300 W RMS x 1
  • Subwoofer channel @ 2 Ω : 400 W RMS x 1
  • Subwoofer channel @ 1.5 Ω : N/A

Rated continuous power (RMS) at 12.5 V

  • Main channels @ 4 Ω : 50 W RMS x 2
  • Main channels @ 2 Ω : 80 W RMS x 2
  • Main channels - bridged @ 4Ω : 100 W RMS x 1
  • Subwoofer channel @ 4 Ω : 200 W RMS x 1
  • Subwoofer channel @ 3 Ω : 250 W RMS x 1
  • Subwoofer channel @ 2 Ω : 300 W RMS x 1
  • Subwoofer channel @ 1.5 Ω : N/A

General specifications

  • Frequency response : 20 Hz - 20 kHz (+0, -1dB)
  • S/N ratio, relative to the highest rated power : >88 dB below the rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 4 Ω : >92 / 50 Hz
  • Attenuation factor @ 2 Ω : >43 / 50 Hz
  • THD+N @ Nennleistung (Hauptkanäle) : <1% @ 2 Ω pro Ch.
  • THD+N @ Nennleistung (Subwoofer-Kanäle) :<1% @ 2 Ω pro Ch.
  • Input voltage range @ RCA inputs : switchable from 250 mV - 4 V RMS (low) to 580 mV - 14 V RMS (high)
  • Minimum cable diameter : 25mm²
  • Fuse rating : 60 A (AFS, AGU or MaxiFuse™)

Signal processing

  • Filter slope : 12 dB/octave
  • Filter frequency range : Channels 1 & 2 (front) 35 Hz - 300 Hz
  • Filter frequency range: Subwoofer channel : 40 Hz - 400 Hz
  • Filter mode: Channels 1 & 2 (front) : high-pass only
  • Filter mode: Subwoofer channel : Low-pass only

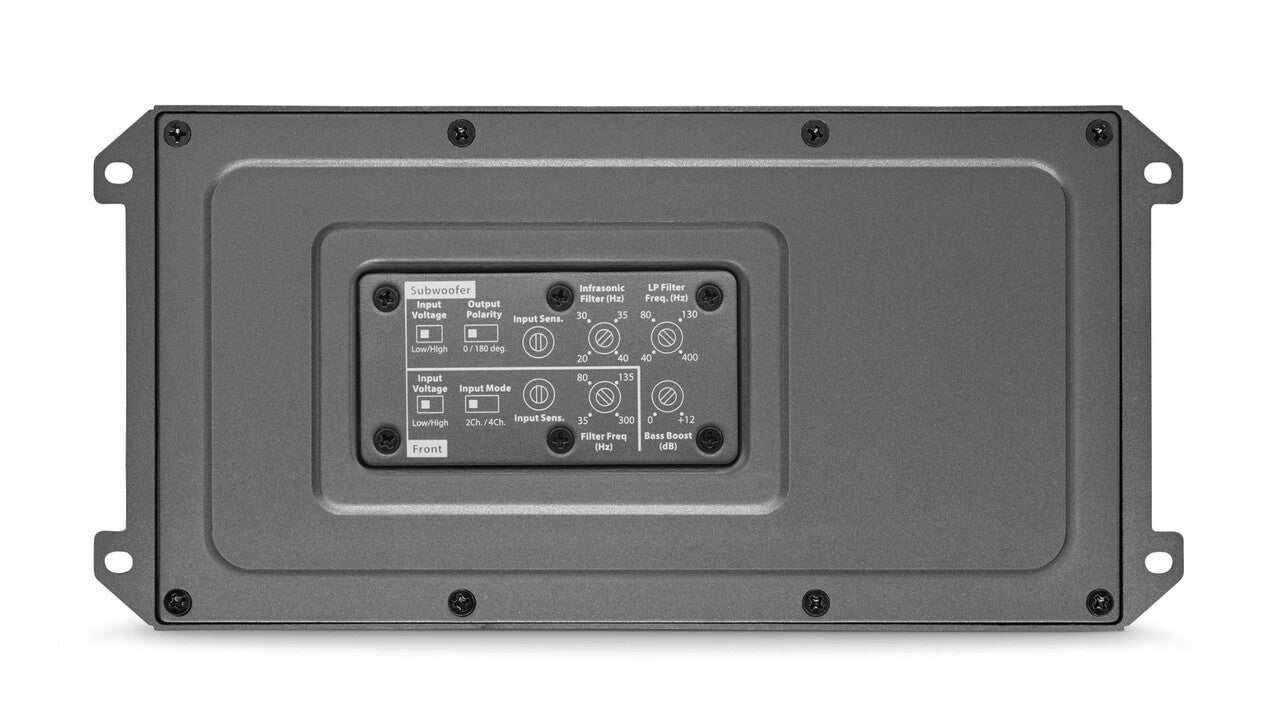

  • Calibrated filter freq. Potentiometer :Yes
  • Filter defeat function : Yes
  • Remote control of the subwoofer level control : Optional (RBC-1)
  • Channel input mode switch : Yes (2/4 channel)
  • Pass-through preamplifier output : None

Dimensions

  • Height (H) : 1.77 inch / 45 mm
  • Width (W) : 237 mm (9.33 inches)
  • Depth (D) : 115 mm (4.50 inches)
