Jantzen Audio Denmark 27uF 400V MKP Cross-Cap ( pair ) capisator
Sold out
€14.95

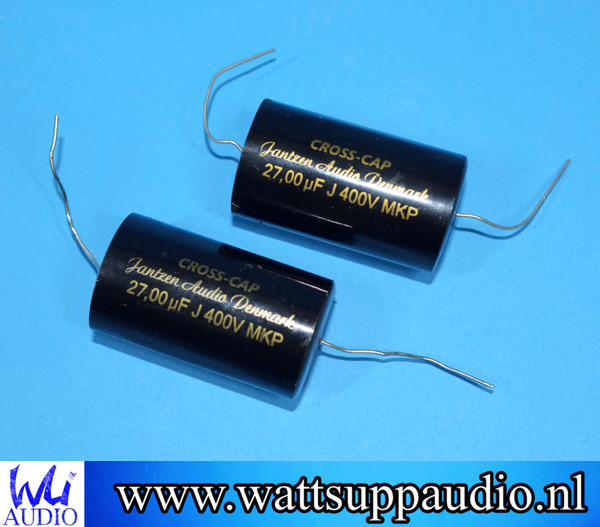

Jantzen Audio Denmark 27uF 400V MKP Cross-Cap ( pair )
- Condition: never been installed ( oldstock )
- sale type: margin
- warranty: 30 days
- Stock: shipped within 24 hours
Product info
- Dimension: dia- 33 / 56 mm. hor
- Capacitors are wound from metallized (ZnAl) polypropylene foil.
- Fronts are sprinkled with Zn powder, which guarantees firm contact to terminal leads and are further flooded with epoxy resin
- The body of the capacitor is firmed by self-adhesive tape.
- Terminal leads are made from round tinned copper wire.
- Capacitor parameters are related to standard IEC 384-16.
- Voltage rating: 400V DC
- Tolerance on capacitance: 5%
- Climatic category: 40/85/21
- Loss factor at 1 kHz (maximum)
- C< l uF : 5 * 104
- C> l < 20 uF : 105
- C> 20 uF : 105
- Insulation resistance at 1 kHz
- C < l uF : 5 * 104 MOhm
- C > l < 20 uF : 3 * 104 MOhm
- C > 20 uF : 104 Mohm
- Axial
The price is fot the pair together
