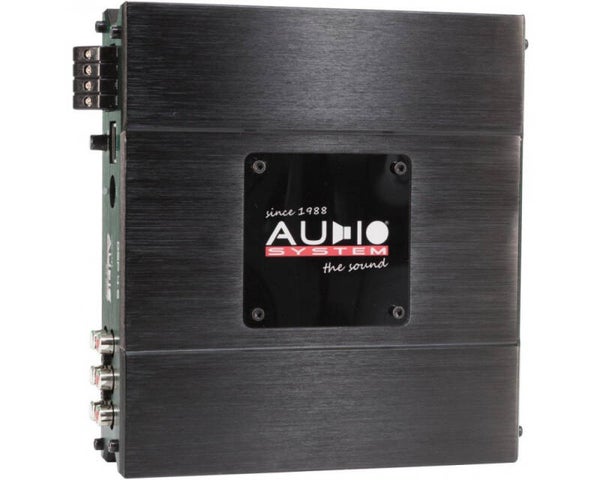

Audio System DSP 4.6 6 channel

Audio System DSP 4.6

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Productinfo:

• DSP SERIES 6-Channel
• 6-channel high-performance DSP with Freescale multi-core chip.
• 4 RCA inputs (low-level 2 to 4 Volts) and 4x Molex high-
• level inputs (5 to 20 Volts) with automatic switch-on.
• 6x RCA outputs (5 volts)
• 1x AUX input,
• 1x optical input and 1x optical output
• 1x external output
• SD card slot.
• Intuitive GUI
• dual-core chip with processing capacity of 250 MHz
• frequency range: 96 kHz, (optional 192 kHz)
• Frequency range: 10-44000 Hz
• Digital signal to noise ratio: 108 dB, analog: 102 dB
• Crosstalk greater than 92 dB
• start / stop possibility up to 6 Volts / 5 sec
• Operating voltage 9.6-18 volts
• Operating temperature from -20°C to +80°C
• Dimensions: 180 x 160 x 45mm
