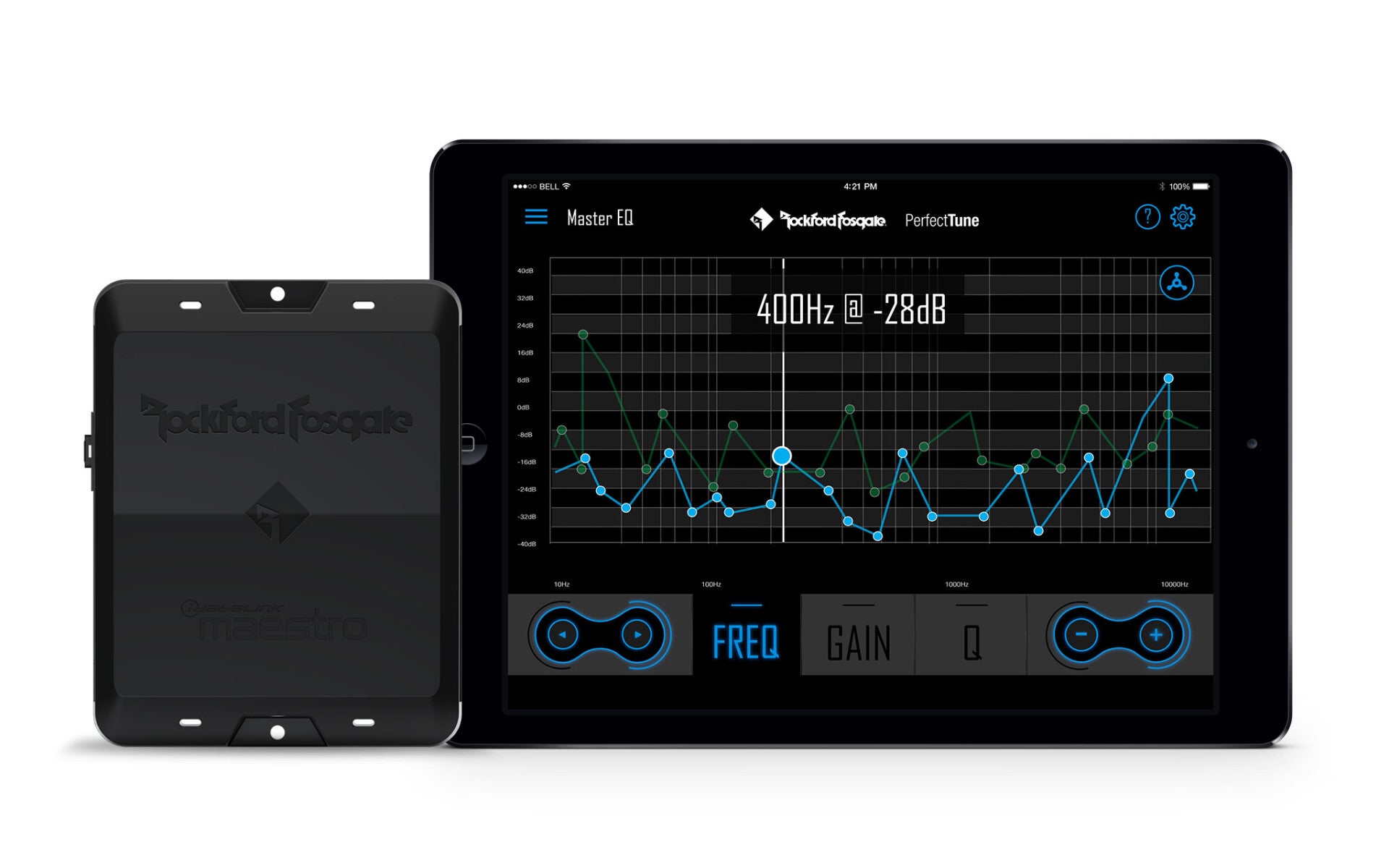

Rockford Fosgate DSR1 8 channel DSP

Rockford Fosgate DSR1 8 channel DSP

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock( 1 ): shipped within 24 hours

Productinfo:

• Digital signal processing with integrated Maestro CAN interface.
• Four balanced differential RCA inputs
• Four-channel high-level inputs with Signal Sense Turn On
• 18-pin analog input harness
• 16-pin analog output cable
• Micro USB port for setup/update
• Designed for use with Select Maestro vehicle T-harnesses
• Optional PLC2 level controller with assignable functions
• Additional RCA and SPDIF coaxial inputs
• 245 equalization bands for aftermarket tuning
• Adjustable crossovers with selectable slopes
• Up to 10msec delay on each channel for time alignment
• Bluetooth 4.0 connectivity for convenient setup

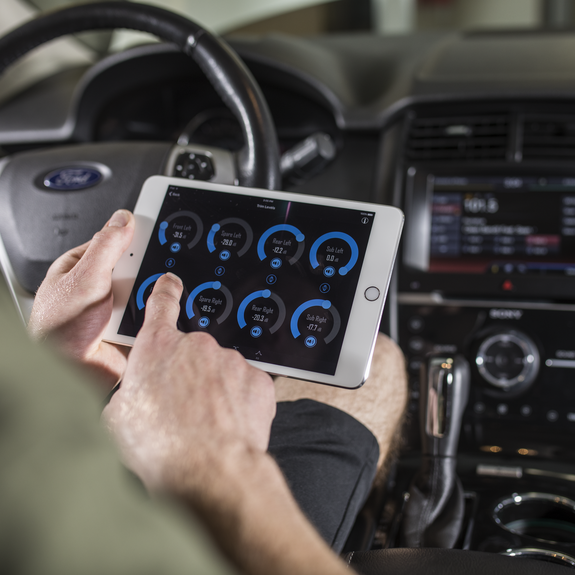

• Interactive tuning interface controlled via Android/ iOS APP

Spezfications:

• 4-channel digital processor with input signal conditioning
• Signal input: 4 balanced differential RCA inputs
• 4 high-level inputs with signal sense
• 2 AUX RCA inputs
• SPDIF coaxial input
• Input impedance: 20 kOhm
• Operating voltage : 9 - 16 VDC
• Output impedance : 200 Ohm
• Frequency response : 20Hz - 20kHz +/- 0.5dB
• Signal output : 8 RCA outputs
• Input voltage : Low level (RCA): up to 4V
• High level : up to 12.5 V
• High Level Turn-On: 4V - 16V
• AUX: up to 2V
• Output voltage: up to 4V RMS
• THD+N :<1,0%
• Signal-Rausch-Abstand : >100 dBA (A-weighted)
• Digital Signal Processing (DSP) : Speed: 147 MIPS
• Accuracy : 32-BIt
• Crossover type : High pass
• Low Pass
• Band Pass
• All-Pass
• Fixed Linkwitz-Riley
• Crossover frequency : Variable: 20 Hz to 10 kHz
• Crossover slope : Selectable slope:
• 6/12/18/24/30/36/48 dB/octave
• EQ frequency centers : Channels: Front/Spare/Rear/Sub
• Frequency bands: 31 per channel
• EQ frequency controls : Selectable Q: 0.01 to 10.0
• Dimensions (H x W x D) : 32 mm x 102.5 mm x 130 mm
