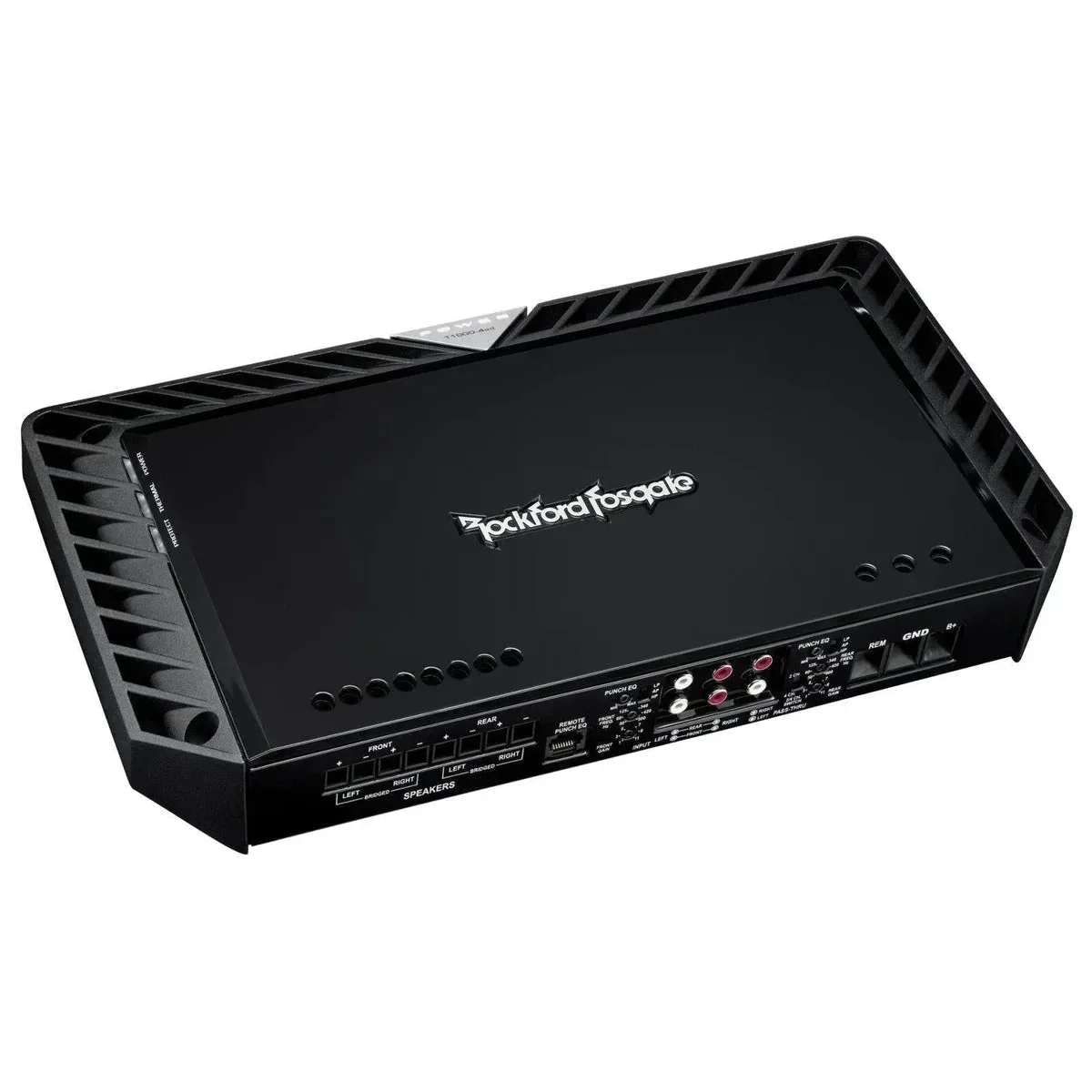

Rockford Fosgate POWER T1000-4ad 4 channel amplifier

Rockford Fosgate POWER T1000-4ad 4 channel amplifier
€999.00

Rockford Fosgate POWER T1000-4ad



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • 2/4 channel input switch
  • 24dB/octave crossover
  • Audiophile speaker terminals
  • MOSFET power supply
  • 4-pin power/ground connections
  • MOSFET output stage
  • RCA pass-thru outputs

Specifications:

  • 4-channel amplifier
  • RMS continuous power
    • 250 Watt x 4 @ 4-Ohm
    • 250 Watt x 4 @ 2-Ohm
    • 250 Watt x 4 @ 1-Ohm
    • 500 Watt x 2 @ 4-Ohm bridged
    • 500 Watt x 2 @ 2-Ohm bridged
  • Dynamic power
    • 270 Watt x 4 @ 4-Ohm 0° Res
    • 327 Watt x 4 @ 2-Ohm 0° Res
    • 365 Watt x 4 @ 1-Ohm 0° Res
    • 619 Watt x 2 @ 4-Ohm bridged
    • 654 Watt x 2 @ 2-Ohm bridged
  • Bridgeable : Yes
  • Frequency response : 20Hz to 20kHz +/-1dB
  • Input sensitivity : 150 mV to 5 V
  • Circuit topology class : Class AD
  • Efficiency (average) : 84.1% @ 4-ohm, 81.6% @ 2-ohm, 81% @ 1-ohm
  • Total harmonic distortion (THD+noise) : <1,0%
  • Signal input : Front channels: 1 RCA pair
  • Rear channels: 1 RCA pair
  • Input switch : 2CH / 4CH
  • Signal output: 1 RCA pair
  • Tone control : Front channels:
  • Treble: 0dB to +12dB @ 12kHz
  • Bass: 0dB to +18dB @ 45Hz
  • Rear channels:
  • Treble: 0dB to +12dB @ 12kHz
  • Bass: 0dB to +18dB @ 45Hz
  • The function depends on the crossover setting (LP/AP/HP)
  • Crossover control : Front channels:
  • High Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth.
  • Low pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
  • Rear channels:
  • High Pass (HP): 50Hz-500Hz @ 24dB/Octave Butterworth
  • Low pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
  • Remote control : Optional. Remote control PEQ
  • Power cable diameter 25mm²
  • Speaker cable diameter : 8mm²
  • Cooling : Convection
  • Operating voltage : 9 - 16 VDC
  • Recommended fuse 150 A
  • Average current consumption (13.8 V music) :60 A
  • Max. Current consumption (13.8 V sine wave) :120 A
  • Dimensions (H x W x D) : 5.42 x 20.68 x 37.86 cm
