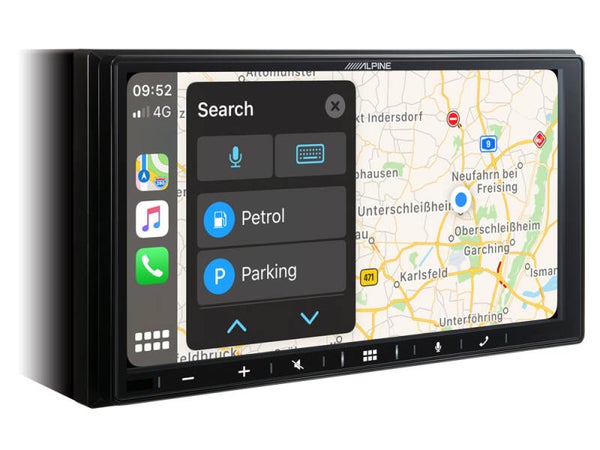

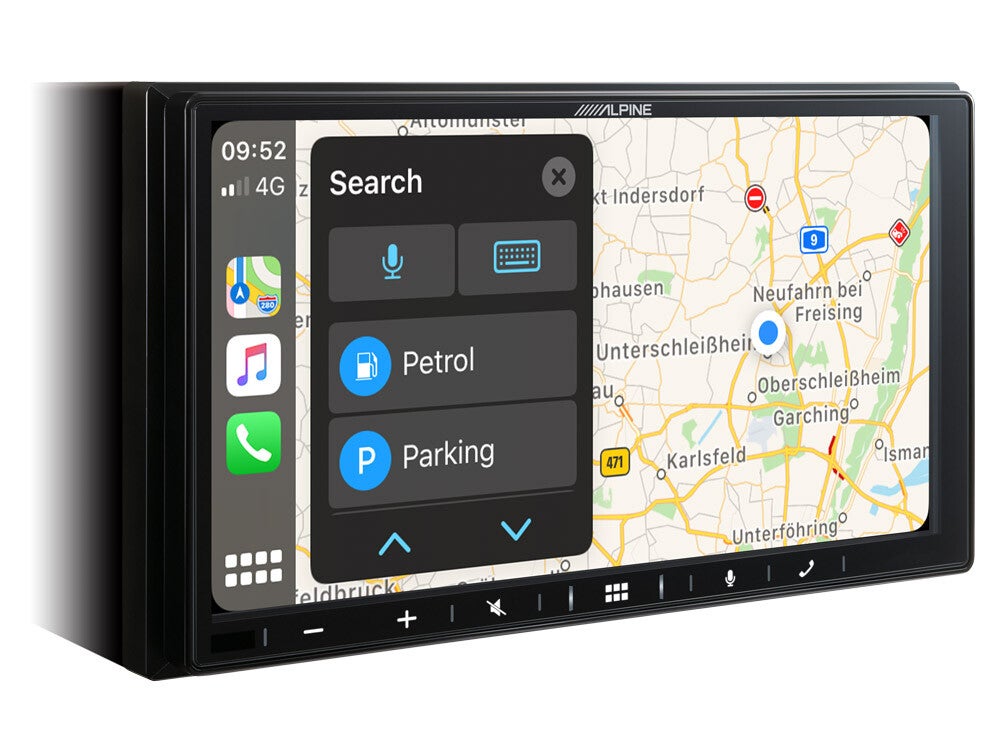

Alpine iLX-W690D 2-din headunit

Alpine iLX-W690D 2-din headunit
€549.00

Alpine iLX-W690D 2-din headunit



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock ( 1x ): shipped within 24 hours

Productinfo:

  • 7-inch capacitive touch screen with swipe graphical user interface
  • DAB+ Digital Radio Tuner
  • AM / FM (RDS) Tuner
  • Preset Stations (FM: 2x6 / DAB: 3x6 / AM: 1x6)
  • Works with Apple CarPlay
  • Works with Android Auto
  • 5-Band Graphic EQ
  • 10 EQ Pre-Sets
  • Digital Crossover
  • 6-Chanel Digital Time Correction
  • Media Xpander
  • Independent Source Volume Level Setting
  • Built-in Bluetooth for audio streaming and hands-free operation
  • Included microphone
  • 1 A/V AUX Input (RCA)
  • 1 Video Output (RCA)
  • 2 RCA Camera Inputs (front and rear)
  • HDMI Input
  • 3 PreOuts (4 Volts)
  • KTA-450 and KTA-200M Power Pack Ready
  • Built-in Rear USB port
  • USB video, audio and photo playback
  • Steering Wheel Remote Control Ready
  • Remote Control Ready
  • Various vehicle specific installation kits available

MONITOR SECTION

  • Screen Size: 7 inch
  • LCD Type: Transparent type TN LCD
  • Operation System: TFT active matrix
  • Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
  • Effective Number of Picture Elements: 99% or more
  • Illumination System: LED

TUNER SECTION

  • FM Tuning Range: 87.5 – 108.0 MHz
  • AM Tuning Range: 531 – 1,602 kHz
  • Signal-to-Noise Ratio: 65 dB
  • DAB Tuning Range: 174.928 – 239.2 MHz
  • Usable Sensitivity: -92dBm
  • Signal to Noise Ratio Band III: 70dB

USB SECTION

  • USB requirements: USB 2.0
  • Max. Power Consumption: 1,500 mA (CDP Support)
  • USB (Play From Device) / USB (Mass Storage Class)
  • File System: FAT16/32
  • Dynamic Range: 95 dB (at 1 kHz)
  • Signal-to-Noise Ratio: 100 dB
  • WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)
  • MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)
  • JPG / PNG / BMP Photo Playback (from USB)

HDMI SECTION

  • Input Format: 720p/480p/VGA

BLUETOOTH SECTION

  • Bluetooth Specification: Bluetooth V4.1
  • HFP (Hands-Free Profile)
  • PBAP (Phone Book Access Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)

GENERAL

  • Power Requirement: 14.4 V DC (11–16 V allowable)
  • Operating temperature: -20 degree Celsius to + 60 degree Celsius
  • Power Output: 4x 50 Watts
  • Weight: 1.0 kg

CHASSIS SIZE

  • Width: 178 mm
  • Height: 100 mm
  • Depth: 60 mm
