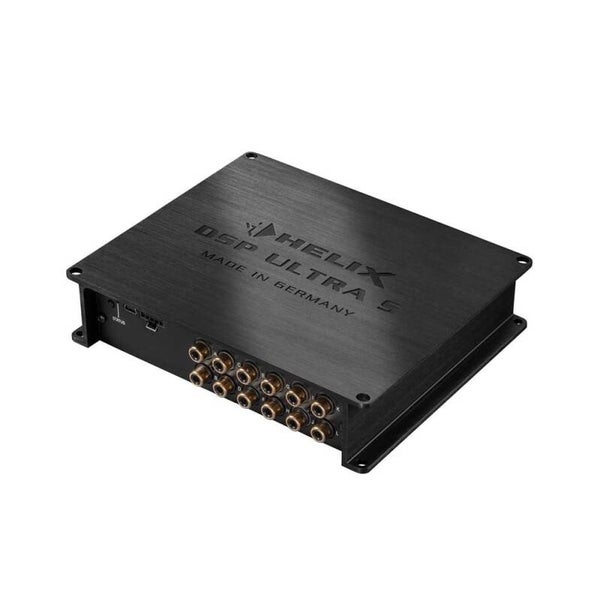

Helix DSP ULTRA S 12 channel DSP

Helix DSP ULTRA S 12 channel DSP
€1,199.00

Helix DSP ULTRA S 12 channel DSP



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second for an extensive sound customization of all processed channels:
    • Eight input channels
    • Eight virtual channels
    • Twelve output channels
  • Cutting-edge audio signal path for minimized distortion and unparalleled sound quality
  • AKM Velvet Sound™ 32 Bit AD and DA signal converters
  • Highest-quality operational amplifiers from the TI / BurrBrown "OPA series" with SoundPlusTM technology
  • Refined design of the analog inputs for outstanding noise immunity
  • Smart 8-channel highlevel input with ADEP.3 circuit
  • ACO – Advanced 32 Bit CoProcessor platform for extended feature set:
    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
    • DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
    • Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
    • SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
  • VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
  • HEC slot for system add-ons like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
  • Start-Stop capability down to 6V supply voltage
  • “Ground lift” switch to avoid ground loops
  • Continuous adjustment of the input sensitivity (highlevel up to max. 32 Volts, RCA / Cinch up to max. 8 Volts)
  • Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
  • Time alignment with up to 20 ms delay time per channel, additionally reverse time alignment for in-phase summation of the inputs
  • Freely definable signal routing with separate matrices for line, SPDIF and HEC/AUX
  • Inputs: 8 x RCA/Cinch, 8 x Highlevel, 1 x optical SPDIF and 1 x coaxial SPDIF
  • Outputs: 12 x RCA/Cinch with max. 8 Volts output voltage
  • Easiest configuration via the intuitive DSP PC-Tool 5 software
  • High level input & High level input with autosense ( autoturnon )
  • 10 - 44000 Hz
  • Signal to noice 111 dB(A)
  • THD <0,001 %
  • THD +N Digital : > 0.0004%
  • THD +N Analog : > 0.0008%
  • Signal input level :1 - 8 V
  • High inpul level : 4 - 32 V
  • DC Input level : 9,6 - 18 V
  • 40 x 177 x 170 mm

Dowload Manual
