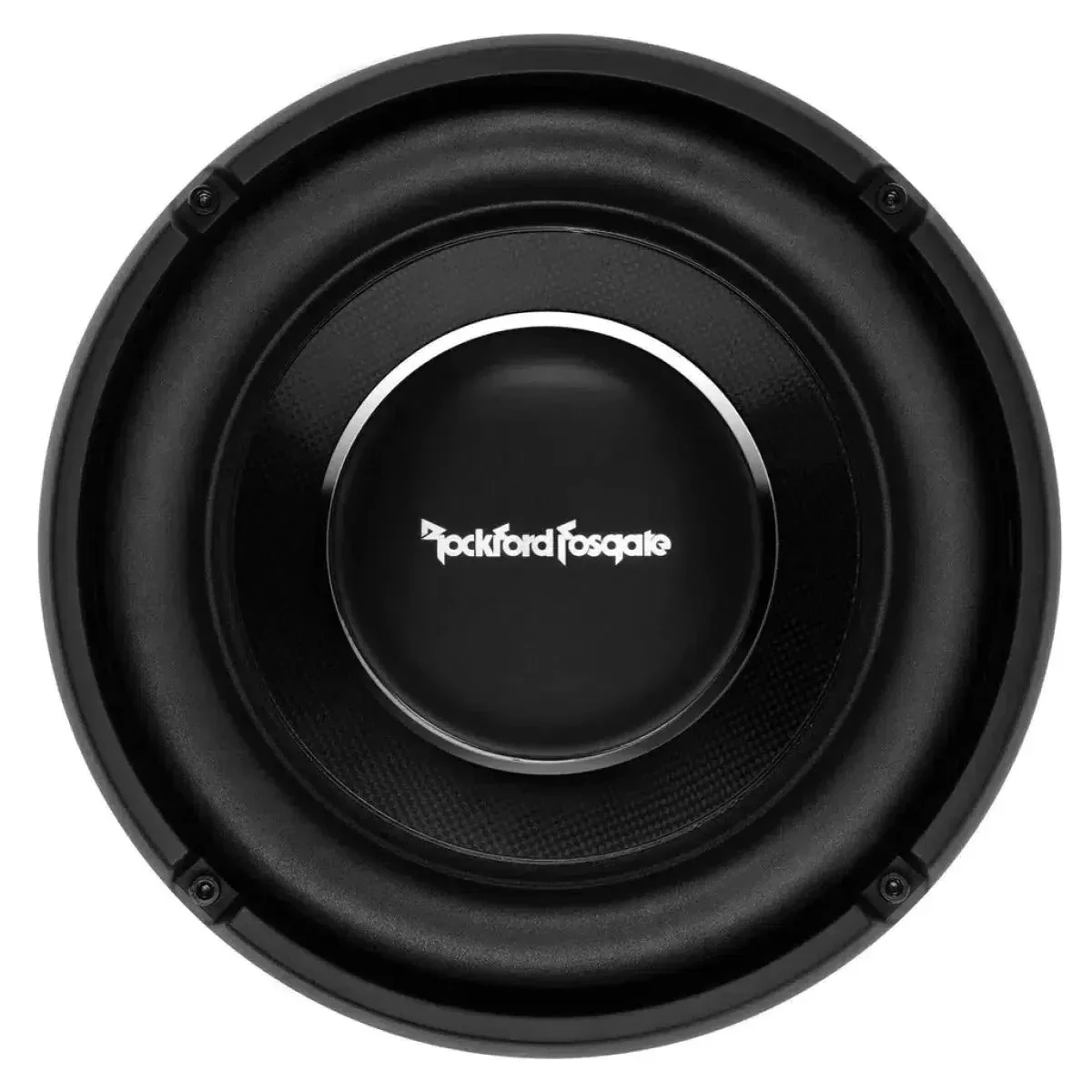

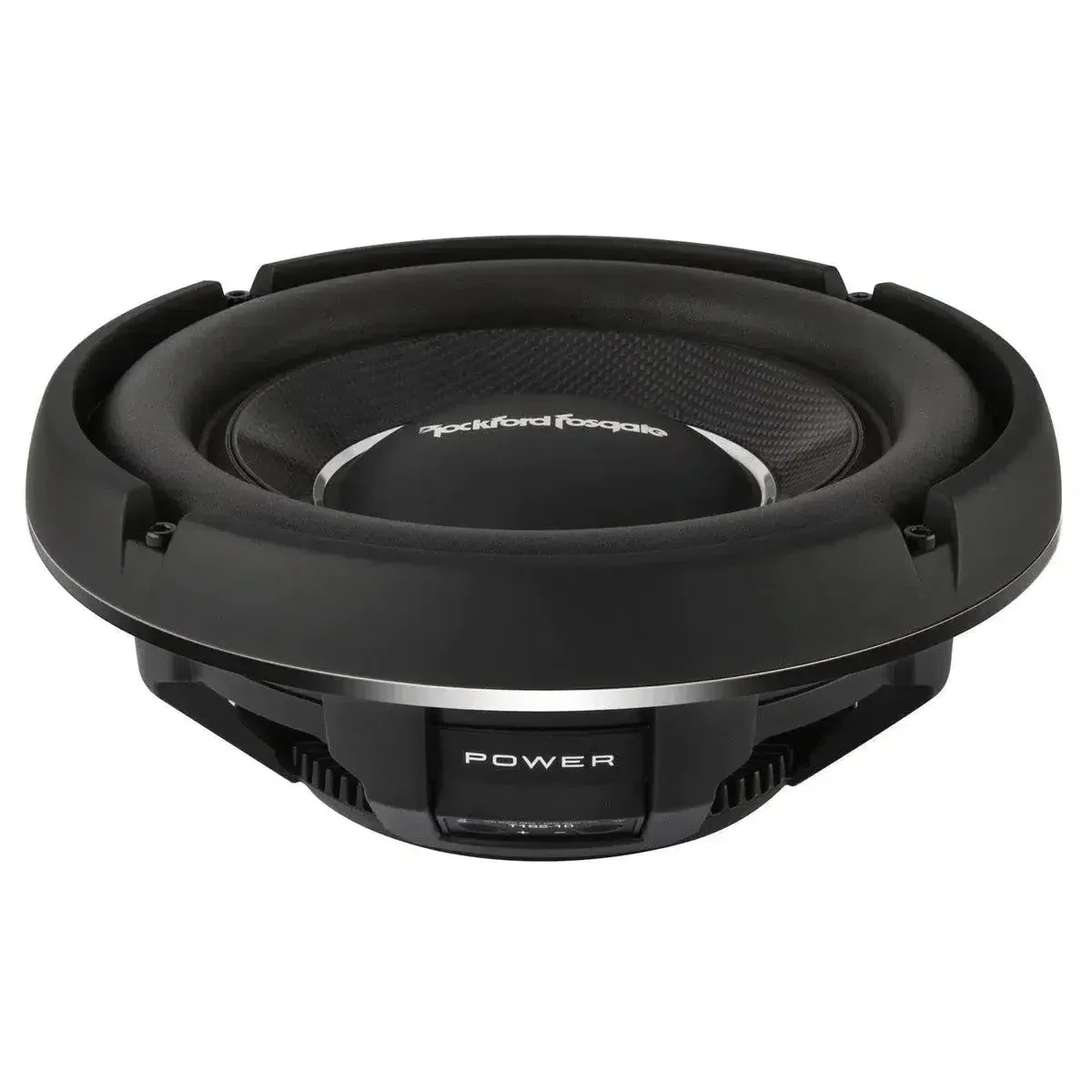

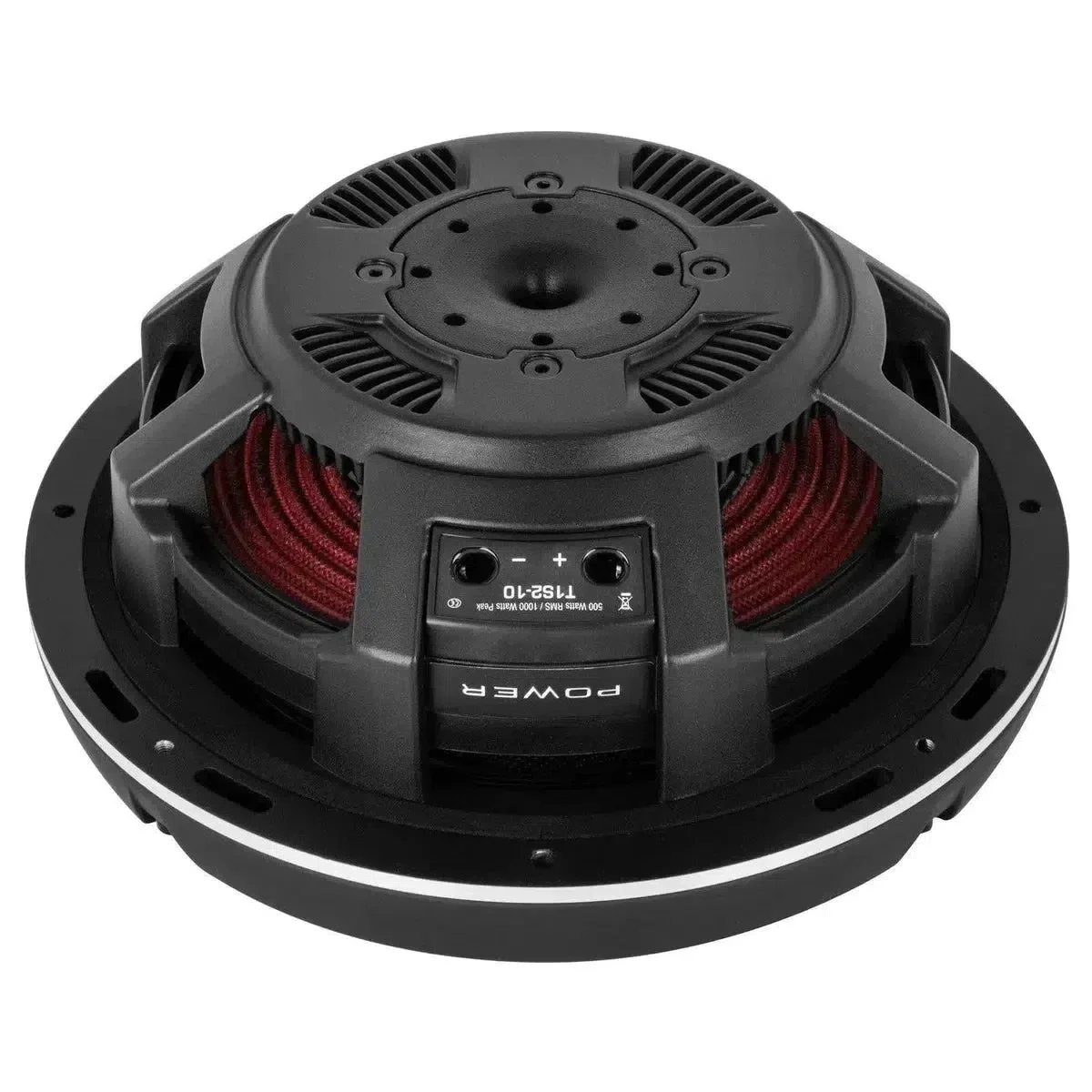

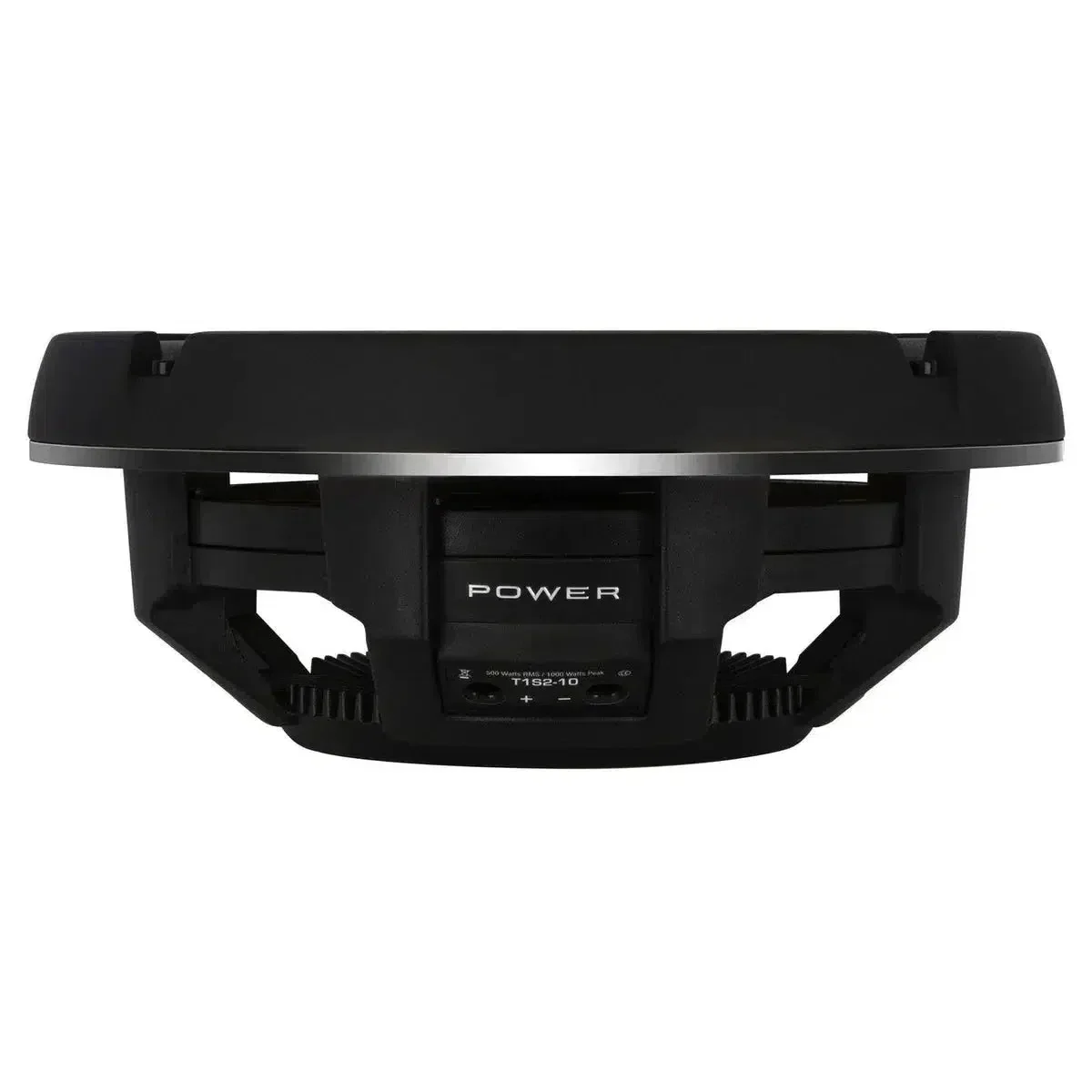

Rockford Fosgate POWER T1S2-10/T1S1-10 10 inch subwoofer
€649.00
Rockford Fosgate POWER T1S2-10
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo
- Carbon fiber/PMI/fiberglass cone with aluminum dust cap
- Injection-molded foam surround with VAST™
- Two Nomex progressive sprockets with integrated lead wires
- Die-cast aluminium frame with integrated cooling fins
- Custom insulated 6mm² compression spring connections
- Double-wound 2.5" voice coil with inner/outer windings
- Encapsulated voice coil to the former coupling technology (to the patent
- registered)
- Removable die-cast aluminum trim ring
- Ventilated pole shoe
- High Temperature High Energy Neodymium Motor Structure
- Proprietary split-yoke pass-through motor technology (to the patent
- registered)
- Integrated copper cap shorting ring (IDHS)
- Optional grid insert available
- Optimized for sealed enclosures
Specifications:
- 10" (25cm) flat subwoofer
- RMS load capacity: 500 watts
- Max. load capacity : 1000 Watt
- Magnet weight (oz) : 0.43 Kg
- Voice coil diameter : 58 mm
- Installation depth : 76.5 mm
- Cut-out diameter : 232 mm
- Displacement of the woofer : 0.82 liter
- Shipping weight : 4.3 Kg
- Available in single 1 Ohm or single 2 Ohm impedance
- 2 Ohm variant:
- Nominal impedance : 2-Ohm
- Voice coil type : Single voice coil
- Fs (Hz) : 43.5
- Re (Ohm) : 1.6
- Vas (liter) : 13.1
- Le (mH) : 0.42
- Sd (cm2) : 356
- Qts : 1.04
- Qes : 1.17
- Qms : 9.21
- SPL (dB @ 1w/1m) : 83
- SPL (dB @ 2.8v/1m) : 86
- Xmax (mm) : 15
- Closed housing volume (Vb) : 22.6 liters
- Bass reflex enclosure volume (Vb) : 42.4 liters
- 1 Ohm Variant:
- Nominal impedance 1-ohm
- Voice Coil Type : Single Voice Coil
- Fs (Hz) 42
- Le (mH) 0.28
- Sd (cm2) 356
- Qts 0.95
- Qes 1.05
- Qms 9.43
- Re(Ohm) 0.9
- Vas (liters) 13.1
- Xmax (mm) 15
- SPL (dB @ 1w/1m)82
- SPL (dB @ 2.8v/1m)85
- Closed housing volume (Vb) : 22.6 liters
- Bass reflex enclosure volume (Vb) : 42.4 liters
