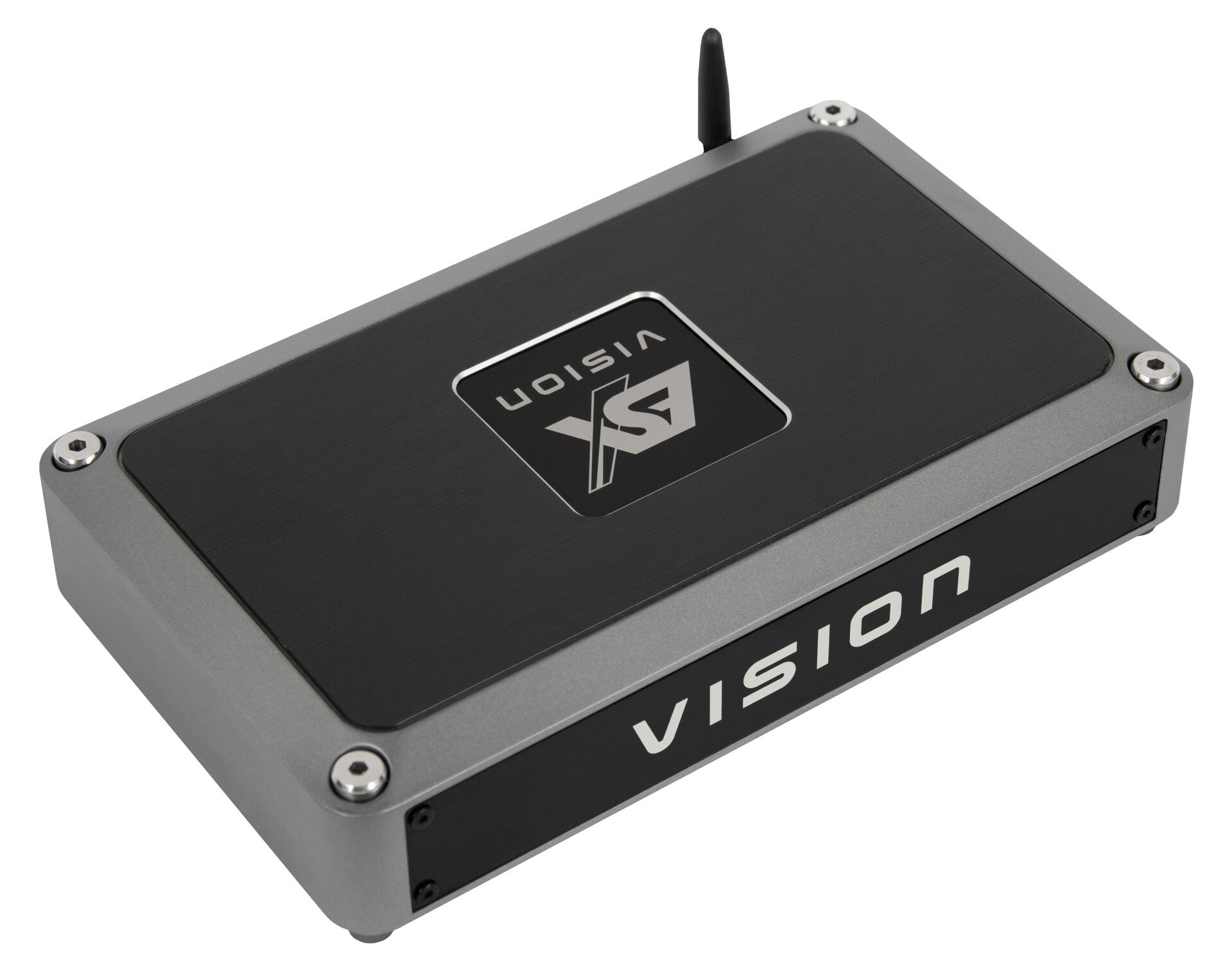

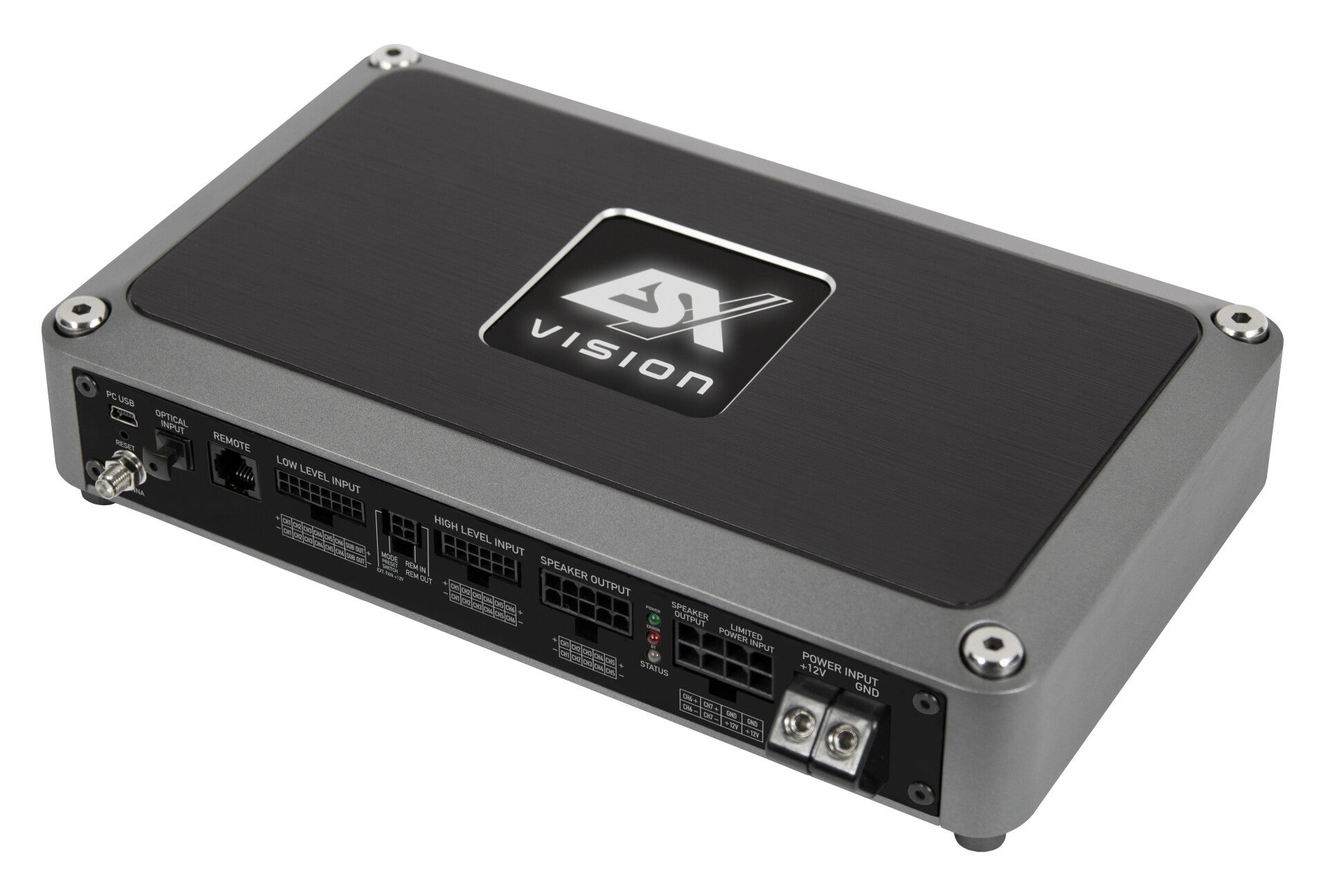

ESX Vision VE900.7SP 7 channel DSP amplifier

ESX Vision VE900.7SP 7 channel DSP amplifier
€999.00

ESX Vision VE900.7SP



  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • Analog Devices™ ADAU1452 32 Bit Processor, 294 MHz, Full HD Audio 96 kHz
  • AKM Velvet Sound™ Series 5 Signal Converter, A/D 32 Bit, D/A 32 Bit
  • HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
  • Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources
  • DSP Control via ESX DSP Toolkit
    - PC Software for Microsoft    ® Windows™ 10 or newer
  • Integrated Bluetooth® Receiver (incl. Antenna) for DSP control via App and Fully HD Audio Streaming
    Bluetooth-Version 5.0, Profiles: A2DP/AVRCP, Codecs: aptX, aptx LL, AAC, SBC
  • REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
  • Optional Accessories: RC-DQ (LCD Remote Controller)
  • Class D 7-Channel Amplifier with
  • Digital 8-Channel Sound Processor
  • 5 x 100 Watts RMS @ 4/3 Ω + 2 x 200 Watts RMS @ 2 Ω
  • Frequency Range 5 ~ 45.000 Hz
  • Signal-to-noise Ratio (A-weighted): 106,5 dB
  • THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS
  • Operating Voltage 7.5 ~ 17 V
  • Dimensions 250 x 50 x 150 mm

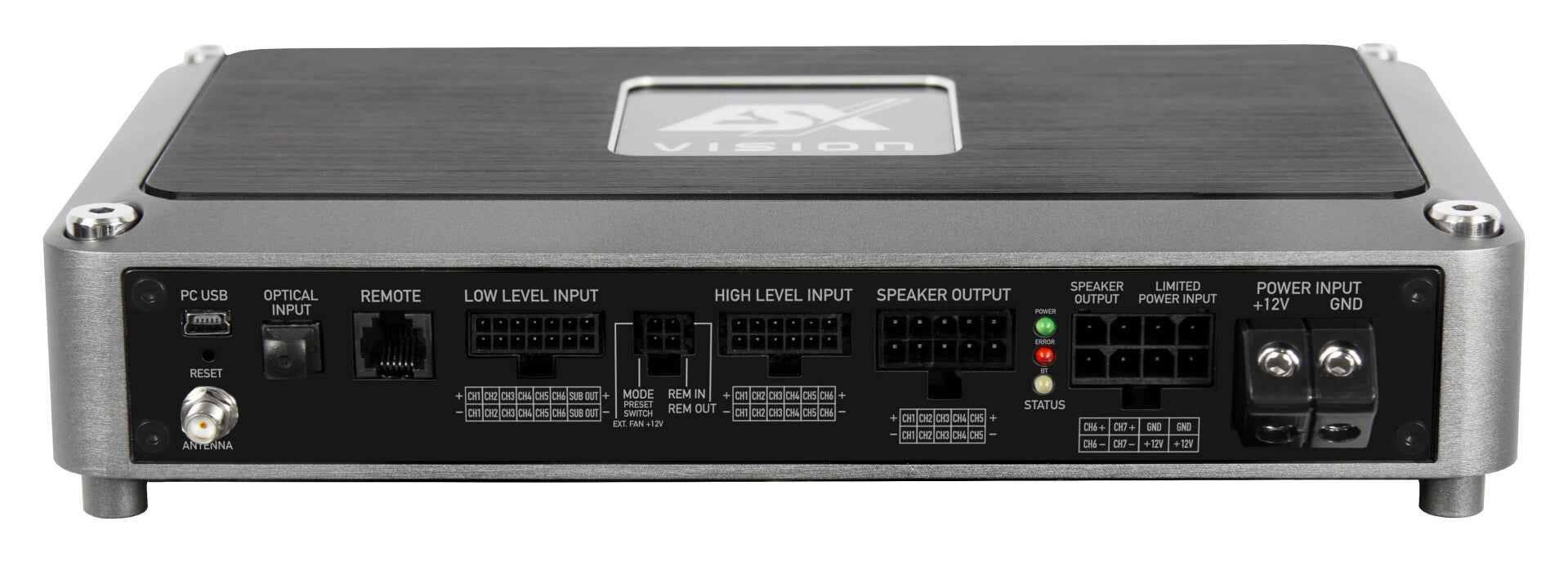

Inputs:

  • 6 x RCA, balanced (via Molex Plug)
  • 6 x High Level Input (via Molex Plug)
  • 1 x Optical Stereo Input, S/PDIF 192 kHz, 24 bit
  • 1 x Bluetooth® Stereo Input via Audio Streaming
  • 1 x USB Type B Socket for PC Software
  • 1 x RJ45 Input for Remote Controller
  • 1 x Terminal  incl. REM IN/OUT  &  Mode Preset Switching Input
  • Input Sensitivity Low Level 500 mV ~ 6 V
  • Input Sensitivity High Level 2 ~ 15 V or 15 ~ 40 V (switchable)
  • Input Impedance Low Level 10 kΩ
  • Input Impedance High Level 10/150/600 Ω (switchable)
  • Auto Turn-On Function DC / VOX / OFF

Outputs:

  • 5 x Amplified Speaker Output (via Molex Plug)
  • 2 x Amplified Speaker/Subwoofer Output (via Molex Plug)
  • 1 x Subwoofer Output (RCA via Molex Plug)
  • 1 x Switching Output for External Fan +12V
