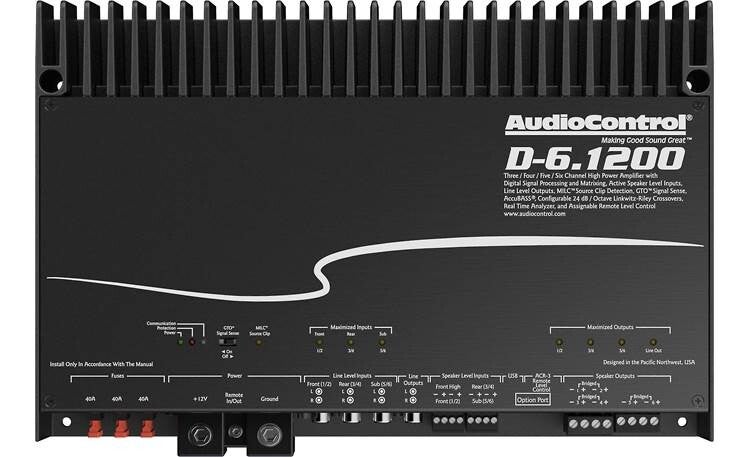

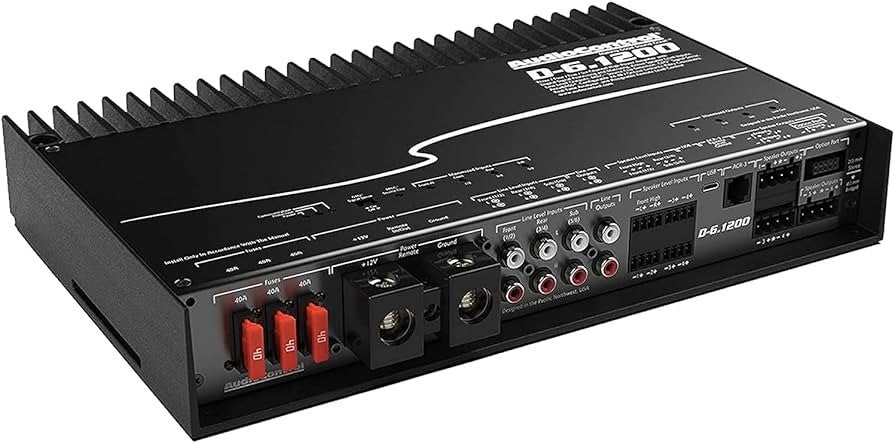

Audiocontrol D-6.1200 6 channel DSP amplifer

Audiocontrol D-6.1200

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 3 - 4 days extra delivery time

info:

• Built-in DSP
• Configurable as 6/5/4/3-channel amplifier
• 6 x 200 watts into 2 ohms
• 6 x 125 watts into 4 ohms
• 400 watts bridged to 4 ohms
• AccuBASS® processing
• MILCTM Maximum Input Level Control (patent pending)
• GTOTM signal scanning
• Active speaker level inputs (8 channels) for OEM integration
• 6 preamplifier inputs
• 2 assignable preamplifier outputs
• Solid one-piece aluminum housing
• Input and output RTA for precise and well-founded tuning
• Input and output delay
• 12 and 24 dB/octave Linkwitz-Riley crossovers
• 30-band equalizer
• Optional ACR-3 remote control for preset recall and level control
• Optional AC-BT24 Bluetooth streamer/programmer
• DM Smart DSP App available as download for Mac/PC

INPUTS

• Preamplifier inputs: 6 balanced
• Preamplifier input voltage range: 250 mV - 8 Vrms
• Speaker level inputs: 8
• Speaker level input voltage range: 3 V - 40 Vrms

OUTPUTS

• Continuous (RMS) rated power at 14.4 V:
• 4 Ω - 125 W x 6 RMS
• 2 Ω - 200 W x 6 RMS
• Bridged 4 Ω - 400 W RMS
• Preamplifier outputs: 2
• Maximum preamplifier output: 8.5 V RMS

PERFORMANCE

• Frequency response: 20 Hz - 24 kHz
• Signal-to-noise ratio: 102 dBA, Ref 200 W @ 2 Ohm
• DISTORTION FACTOR+N: < 0.1%
• Power/earthing cable thickness: 25mm²
• Fuse rating: 3 x 40 A

WEIGHT AND DIMENSIONS

• Dimensions: 30 x 20 x 5.3cm
• Weight: 3.2 kg
