JL Audio C1-100CT Dome tweeters
€85.00
JL Audio C1-100ct
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- 1.0-inch (25 mm) aluminum dome tweeter
- The C1 tweeters are designed for refined performance with excellent off-axis response and high frequency extension. Using true edge-driven 1.0-inch aluminum domes with silk suspension, the C1-100ct component tweeters provide smooth, detailed treble response from 3.6 - 22 kHz.
- The tweeters can be flush or surface mounted using the supplied brackets to suit a variety of installation requirements.
- Inline, outboard, 12 dB/octave, high-pass filters are included to ensure smooth response and reliability. These filters are also equipped with advanced tweeter protection circuitry to improve power handling and reliability.
- When it comes to value, C1 is the real deal!
- Sold as a pair. Surface and flush mounting devices and grilles are included.
General specifications
- Continuous load capacity (RMS) : 60 W
- Recommended amplifier power (RMS) : 20 - 60 W / Ch.
- System efficiency : 91.5 dB at 1 W / 1 m
- Nominal system impedance : 4 Ω
- System frequency response : 3.6 kHz - 22 KHz ± 3 dB
Dimensions of the tweeters
- Diameter of the flush-mounted bracket (A1) : 1.97 inch / 50 mm
- Diameter of the surface-mounted bracket (A2): 51 mm / 2.01 inches
- Diameter of the hole for flush mounting (B) : 45 mm / 1.75 inch
- Flush mounting installation depth (C) : 0.40 inch / 10 mm
- Flush-mounted tweeter Front projection (D1) : 8 mm / 0.32 inch
- Surface mounted tweeter Frontal projection (D2) :0.87 inch / 22 mm

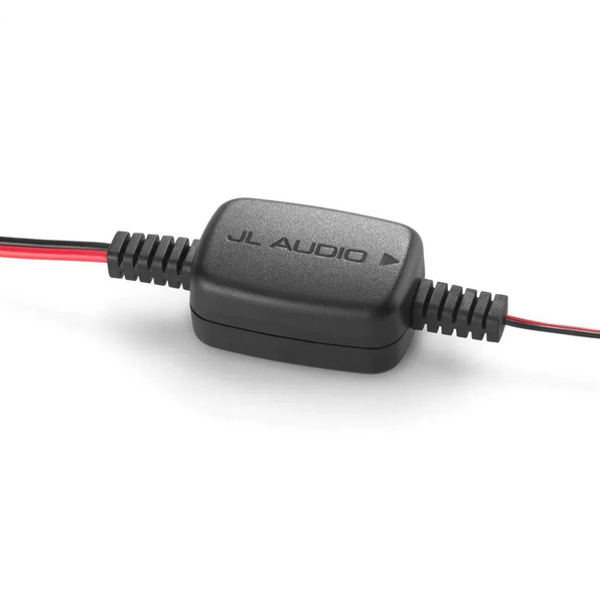

Dimensions of the crossover
- Width (W) : 1.96 inch / 50 mm
- Depth (D) : 1.34 inch / 34 mm
- Height (H) : 0.90 in / 23 mm
