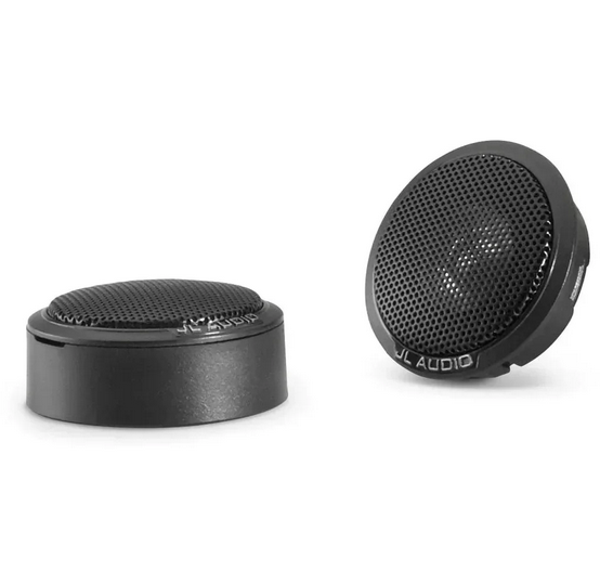

JL Audio C1-075CT Dome tweeters
€75.00
JL Audio C1-075CT
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- 19 mm aluminum dome tweeter (0.75 inch)
- The C1 component tweeters are designed for refined performance with excellent off-axis response and high frequency extension. Using true edge-driven 0.75-inch aluminum domes with silk suspension, the C1-075ct component tweeters provide smooth, detailed treble response from 4 - 24 kHz.
- The tweeters can be flush or surface mounted using the supplied brackets to suit a variety of installation requirements.
- Inline, outboard, 12 dB/octave, high-pass filters are included to ensure smooth response and reliability. These filters are also equipped with advanced tweeter protection circuitry to improve power handling and reliability.
- When it comes to value, C1 is the real deal!
- Sold as a pair. Surface and flush mounting devices and grilles are included.
General specifications
- Continuous load capacity (RMS) : 50 W
- Recommended amplifier power (RMS) :20 - 50 W / Ch.
- System efficiency : 91.0 dB at 1 W / 1 m
- Nominal system impedance : 6 Ω
- System frequency response : 4 kHz - 24 KHz ± 3 db
Dimensions of the tweeters
- Diameter of the flush-mounted bracket (A1) : 1.67 inch / 42 mm
- Diameter of the surface-mounted bracket (A2): 43 mm (1.71 inches)
- Diameter of the hole for flush mounting (B) : 37 mm / 1.46 inch
- Flush mounting installation depth (C) : 0.40 inch / 10 mm
- Flush-mounted tweeter Front projection (D1) : 6 mm / 0.23 inch
- Surface mounted tweeter Frontal projection (D2) : 19 mm / 0.76 inch
Dimensions of the crossover
- Width (W) : 1.96 inch / 50 mm
- Depth (D) : 1.34 inch / 34 mm
- Height (H) : 0.90 in / 23 mm
