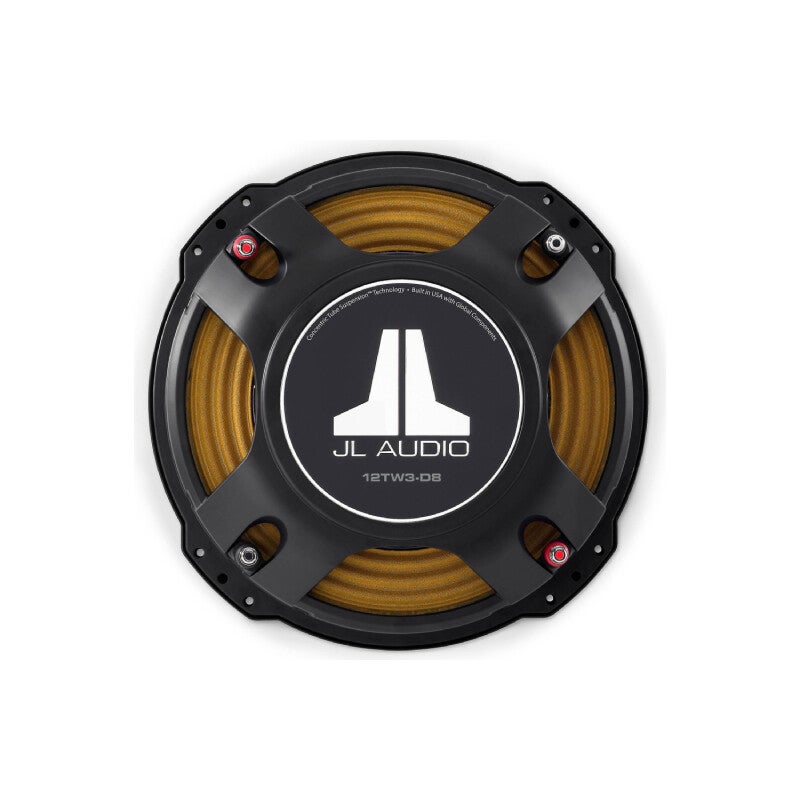

JL Audio 12TW3-D4/8 12 inch subwoofer
€499.00
JL Audio 12TW3-D4/8
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo ( D8ohm )
- Continuous power handling (RMS) : 400 W
- Recommended amplifier power (RMS) : 200 - 400 W
- Nominal impedance (Znom) : Dual 8 Ω
- Free Air Resonant Frequency (Fs) : 32,660 Hz
- Electrical "Q" (Qes) : 0.558
- Mechanical "Q" (Qms) : 10.071
- Total quality "Q" (Qts) : 0.668
- Equivalent volume (Vas) : 1.205 cu ft / 34.12 L
- One-way linear excursion (Xmax) : 0.6 inch / 15.2 mm
- Efficiency (1 W / 1 m) : 84.23 dB SPL
- Diaphragm area (Sd) : 0.0539 square meters
- DC resistance (Re) : 14,800 Ω
Dimensions
- Nominal diameter : 12 inch / 300 mm
- Overall diameter (A) : A1: 335 mm / 13.2 inches
- Minimum A2: 318 mm / 12.5 inches
- Installation diameter (B) : 295 mm / 11.625 inch
- Bolt circle diameter (C) : 318 mm / 12.5 inch
- Engine outer diameter (D): 156 mm / 6.125 inches
- Installation depth (E) : 89 mm (3.5 inch)
- Volume displacement : 0.029 cu ft / 0.82 L
