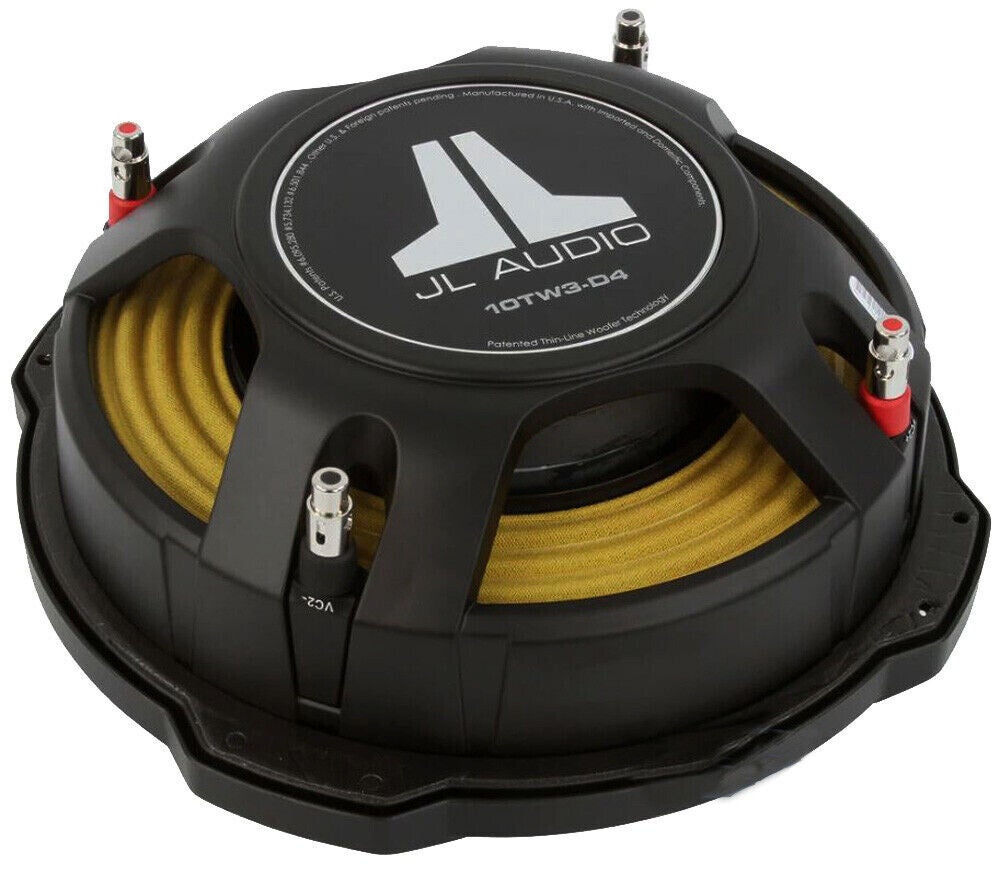

JL Audio 10TW3-D4/8 10 inch subwoofer
€449.00
JL Audio 10TW3-D4/8
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo ( D8ohm )
- Continuous power handling (RMS) : 400 W
- Recommended amplifier power (RMS) : 200 - 400 W
- Nominal impedance (Znom) : Dual 8 Ω
- Protective grille optionally available
- Free air resonance frequency (Fs) : 39.262 Hz
- Electrical "Q" (Qes) : 0.825
- Mechanical "Q" (Qms) : 9.84
- Total quality "Q" (Qts) : 0.761
- Equivalent volume (Vas) : 0.510 cu ft / 14.44 L
- One-way linear deflection (Xmax) : 0.6 inch / 15.2 mm
- Efficiency : 0.23%
- Efficiency (1 W / 1 m) : 82.27 dB SPL
- Diaphragm area (Sd) : 0.0365 square meter
- DC resistance (Re) : 15.008 Ω
Productinfo ( D4ohm )
- Continuous power handling (RMS) : 400 W
- Recommended amplifier power (RMS) : 200 - 400 W
- Nominal impedance (Znom) : Dual 4 Ω
- Protective grille optionally available
- Free air resonance frequency (Fs) : 32.30 Hz
- Electrical "Q" (Qes) : 0.656
- Mechanical "Q" (Qms) : 11.35
- Total quality "Q" (Qts) : 0.62
- Equivalent volume (Vas) : 0.700 cu ft / 19.82 L
- One-way linear deflection (Xmax) : 0.6 inch / 15.2 mm
- Efficiency : 0.23%
- Efficiency (1 W / 1 m) : 82.10 dB SPL
- Diaphragm area (Sd) : 0.0365 square meter
- DC resistance (Re) : 9.036 Ω
Dimensions
- Nominal diameter: 250 mm / 10 inch
- Overall diameter (A) : A1: 284 mm / 11.2 inch
- Minimum diameter A2 : 267 mm (10.5 inches)
- Installation diameter (B) : 244 mm / 9.625 inch
- Bolt circle diameter (C) : 267 mm (10.5 inch)
- Engine outside diameter (D): 130 mm (5.1 inch)
- Installation depth (E) : 83 mm (3.25 inch)
- Volume displacement : 0.019 cu ft / 0.54 L
