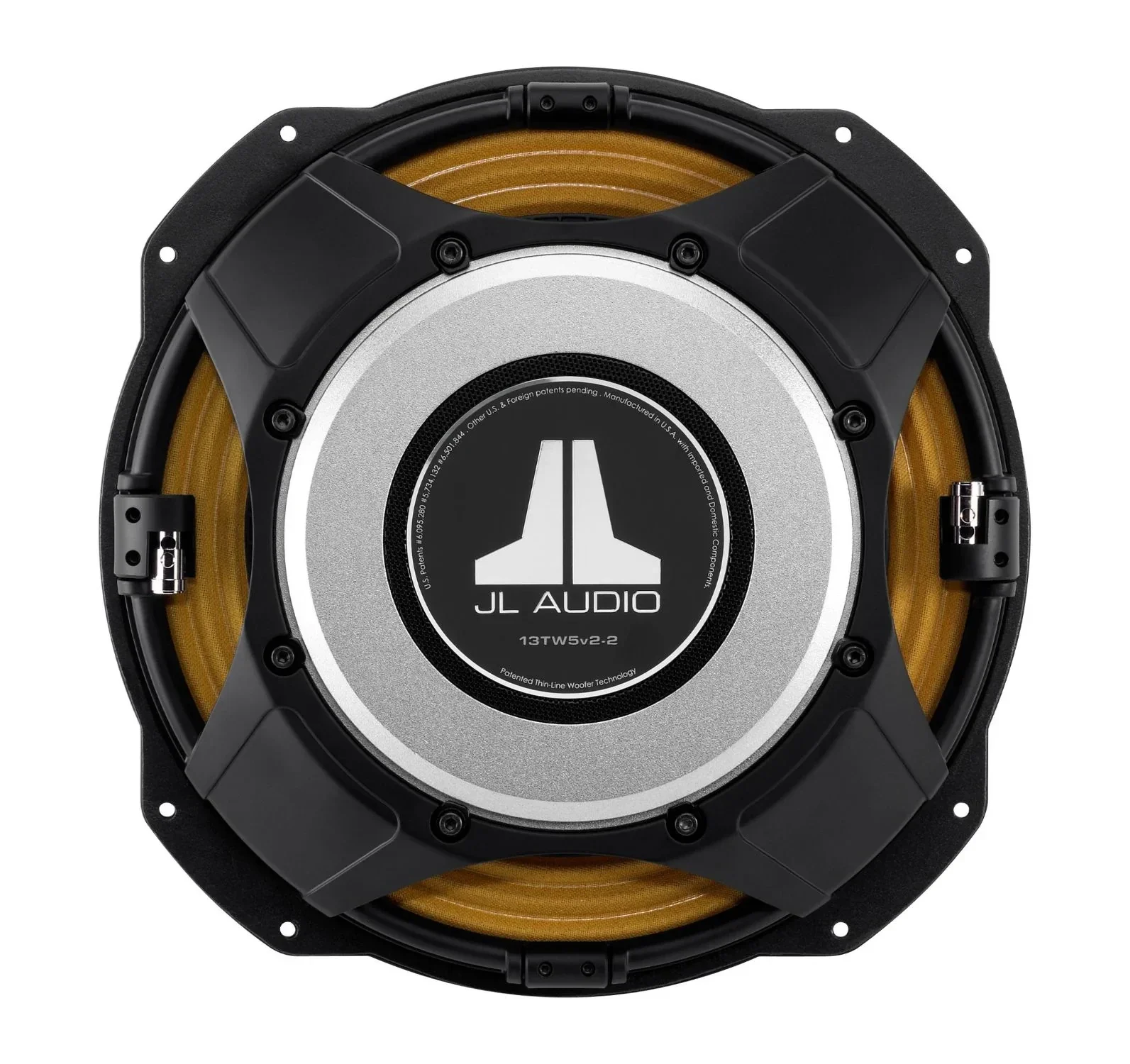

JL Audio 13TW5V2-2/4 13.5 inch subwoofer
€879.00
JL Audio 13TW5V2-2
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo ( 2ohm )
- Continuous power handling (RMS) : 600 W
- Recommended amplifier power (RMS) : 250 - 600 W
- Nominal impedance (Znom) : 2 Ω
Parameters ( 2ohm )
- Free Air Resonant frequency (Fs) : 25.95 Hz
- Electrical "Q" (Qes) : 0.51
- Mechanical "Q" (Qms) : 10.648
- Total quality "Q" (Qts) : 0.479
- Equivalent volume (Vas) : 2.26 cu ft / 64.00 L
- One-way linear deflection (Xmax) : 0.433 inch / 11 mm
- Efficiency : 0.23%
- Efficiency (1 W / 1 m) : 85.51 dB SPL
- Diaphragm area (Sd) : 0.0634 square meters
- DC resistance (Re) : 2,100 Ω
Product info ( 4 ohm )
- Continuous power handling (RMS) : 600 W
- Recommended amplifier power (RMS) : 250 - 600 W
- Nominal impedance (Znom) : 4 Ω
- Free Air Resonant Frequency (Fs ) : 27.61 Hz
- Electrical "Q" (Qes) : 0.553
- Mechanical "Q" (Qms) : 10.692
- Total quality "Q" (Qts) : 0.526
- Equivalent volume (Vas) : 2.13 cu ft / 60.31 L
- One-way linear deflection (Xmax) : 0.433 inch / 11 mm
- Efficiency : 0.23%
- Efficiency (1 W / 1 m) : 85.63 dB SPL
- Diaphragm area (Sd) : 0.0634 square meters
- DC resistance (Re) : 3.513 Ω
Dimensions
- Nominal diameter: 345 mm / 13.5 inch
- Overall diameter (A) : A1: 14.2 inch / 361 mm
- Minimum diameter A2: 13.0 inch / 330 mm
- Installation diameter (B) : 318 mm / 12.5 inches
- Bolt circle diameter (C) : 343 mm (13.5 inch)
- Engine outside diameter (D): 171 mm / 6.75 inches
- Installation depth (E) : 2.625 inch / 67 mm
- Volume displacement : 0.052 cu ft / 1.47 L
- Net weight : 20.5 lb / 9.3 kg
Parameters
- Free Air Resonant frequency (Fs) : 25.95 Hz
- Electrical "Q" (Qes) : 0.51
- Mechanical "Q" (Qms) : 10.648
- Total quality "Q" (Qts) : 0.479
- Equivalent volume (Vas) : 2.26 cu ft / 64.00 L
- One-way linear deflection (Xmax) : 0.433 inch / 11 mm
- Efficiency : 0.23%
- Efficiency (1 W / 1 m) : 85.51 dB SPL
- Diaphragm area (Sd) : 0.0634 square meters
- DC resistance (Re) : 2,100 Ω
