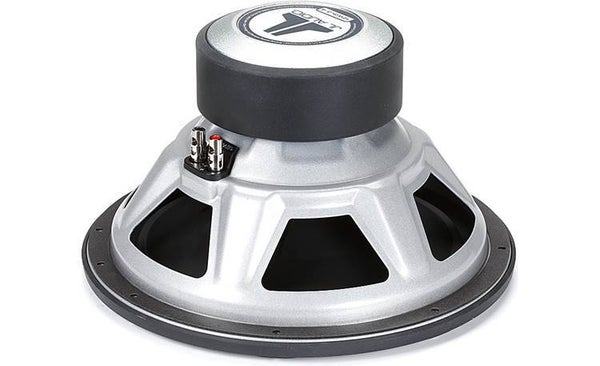

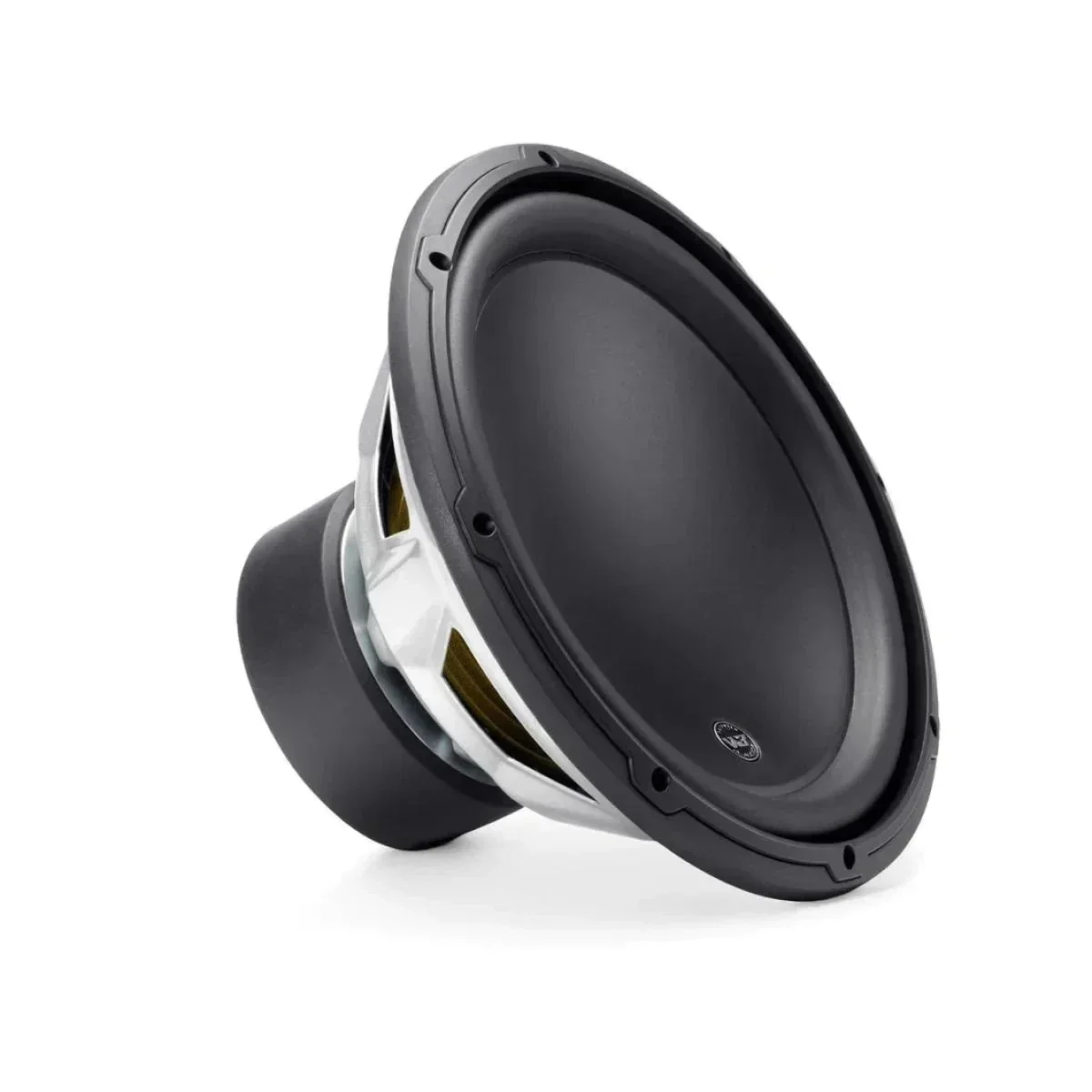

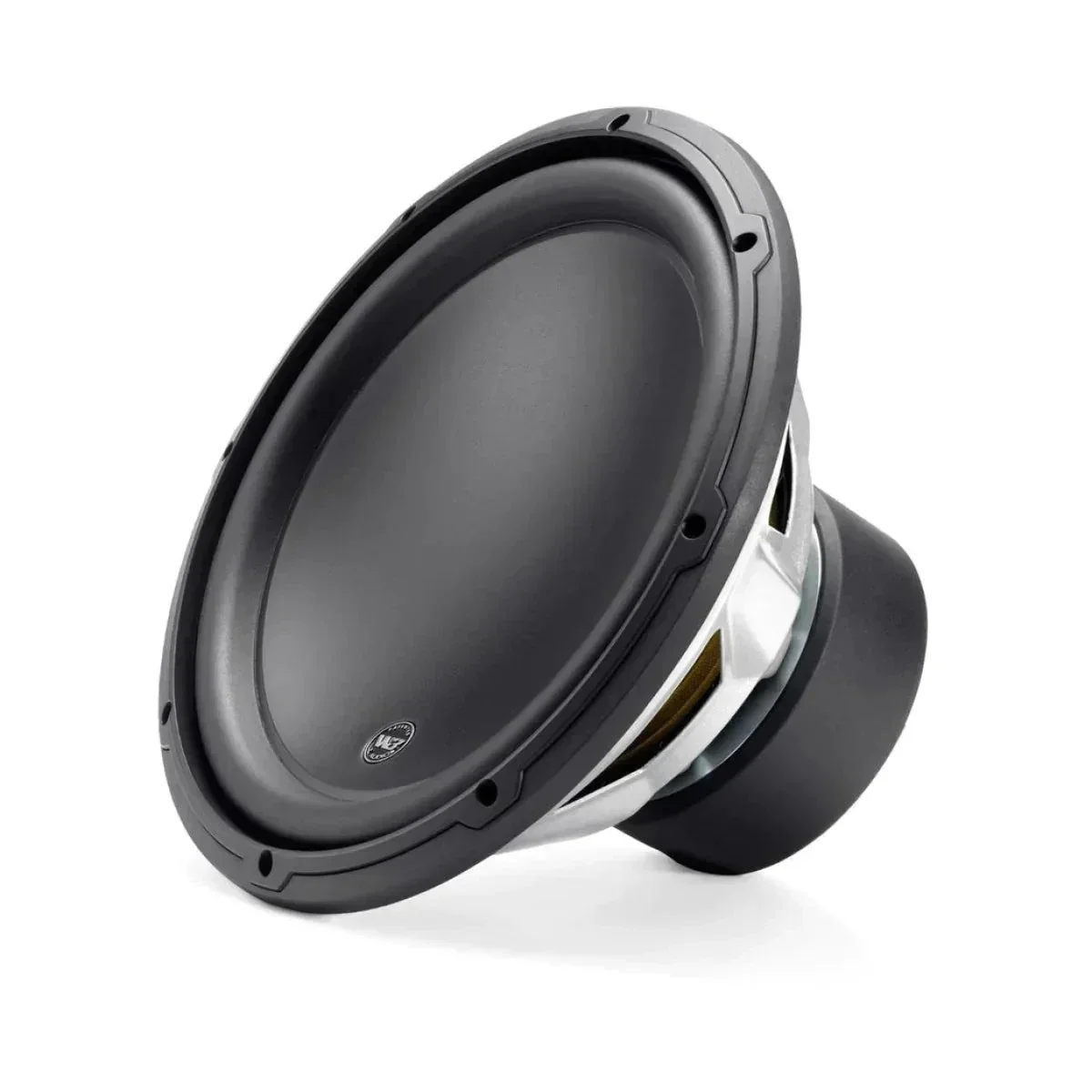

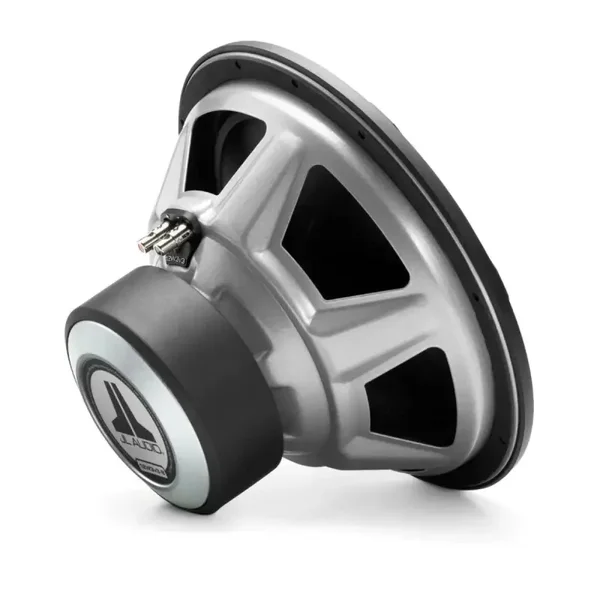

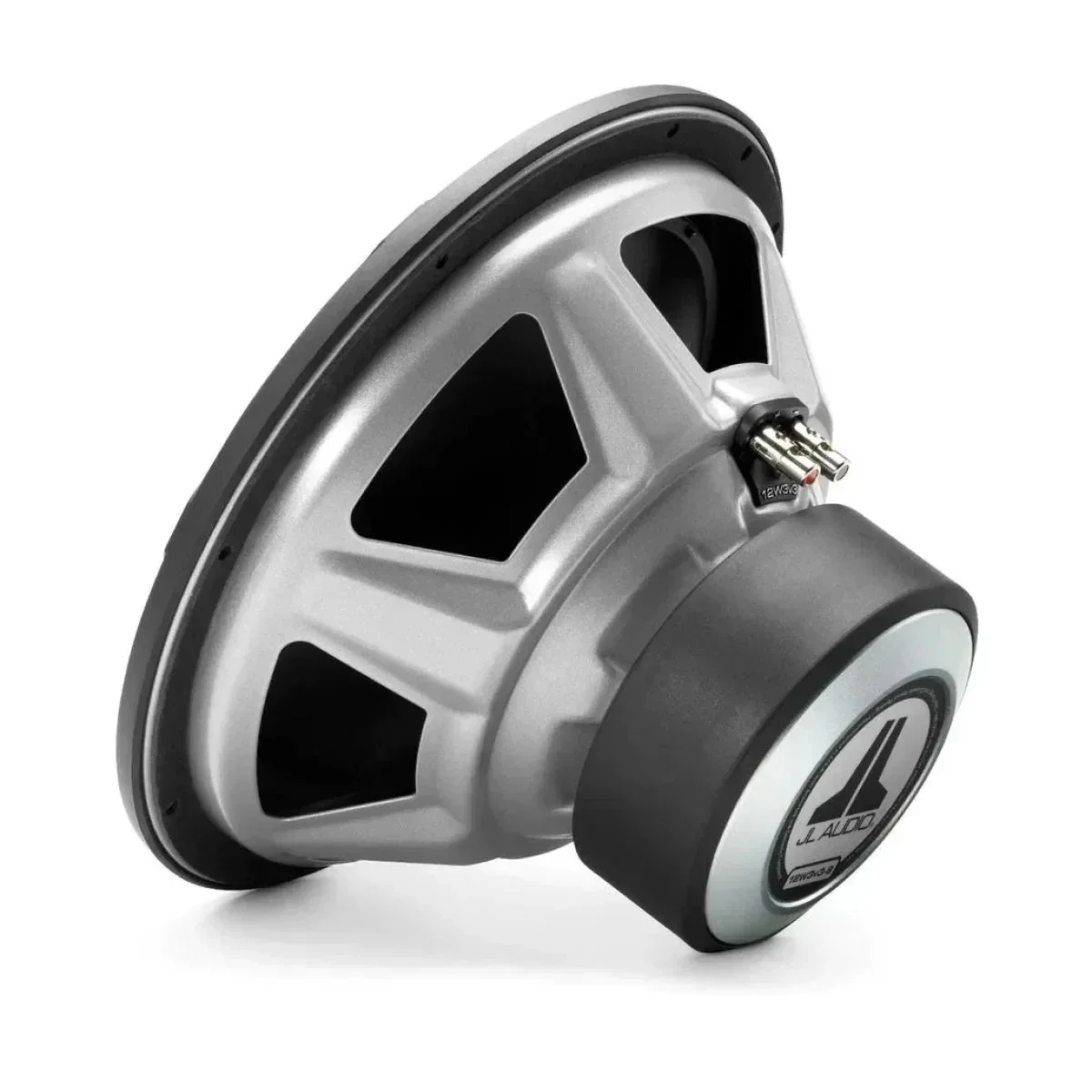

JL Audio 12W3V3-2/4 12 inch subwoofer
€379.00
JL Audio 12W3V3-2/4
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- W3v3 12-inch subwoofer (500 W)
- This powerful 12-inch driver delivers strong performance and premium sound quality in medium power applications.
- Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to improve linearity and reliability.
- The 12W3v3 is best suited for amplifier power in the 150W - 500W range and is optimized for operation in a compact, sealed enclosure with 35.4 l (1.25 cu. ft.) or a bass reflex enclosure with 49.6 l (1.75 cu. ft.) port.
General specifications ( 2 ohm )
- Continuous load capacity (RMS) : 500 W
- Recommended amplifier power (RMS): 150 - 500 W
- Nominal impedance (Znom) : 2 Ω
- Protective grille optionally available
Parameters
- Free air resonance (Fs) : 27.97 Hz
- Electrical "Q" (Qes) : 0.534
- Mechanical "Q" (Qms) : 7.678
- Overall quality "Q" (Qts) : 0.5
- Equivalent volume (Vas) : 2.806 cu ft / 79.47 L
- Simple linear deflection (Xmax) : 0.510 inch / 13.0 mm
- Reference efficiency : 0,31%
- Efficiency (1 W / 1 m) : 87.15 dB SPL
- Effective membrane area (Sd) : 0.0520 square meters
- Direct current resistance (Re) : 1.658 Ω
General specifications ( 4 ohm )
- Continuous load capacity (RMS) : 500 W
- Recommended amplifier power (RMS): 150 - 500 W
- Nominal impedance (Znom) : 4 Ω
- Protective grille optionally available
Parameters
- Free air resonance (Fs) : 26.72 Hz
- Electrical "Q" (Qes) : 0.472
- Mechanical "Q" (Qms) : 7,572
- Total quality "Q" (Qts) : 0.444
- Equivalent volume (Vas) : 2.844 cu ft / 80.54 L
- Simple linear deflection (Xmax) : 0.510 inch / 13.0 mm
- Reference efficiency : 0,31%
- Efficiency (1 W / 1 m) : 87.15 dB SPL
- Effective membrane area (Sd) : 0.0520 square meters
- DC resistance (Re) : 3.563 Ω
Dimensions
- Nominal diameter: 300 mm / 12.0 inch
- Overall diameter (A): 318 mm / 12.5 inches
- Diameter of the mounting hole (B) : 281 mm / 11.0625 inch
- Bolt circle diameter (C) : 297 mm / 11.7 inch
- Motor outer diameter (D) : 140 mm / 5.5 inch
- Installation depth (E) : 169 mm (6.65 inch)
- Volume displacement : 0.071 cu ft / 2.01 L
- Net weight : 14.50 lb / 6.58 kg
