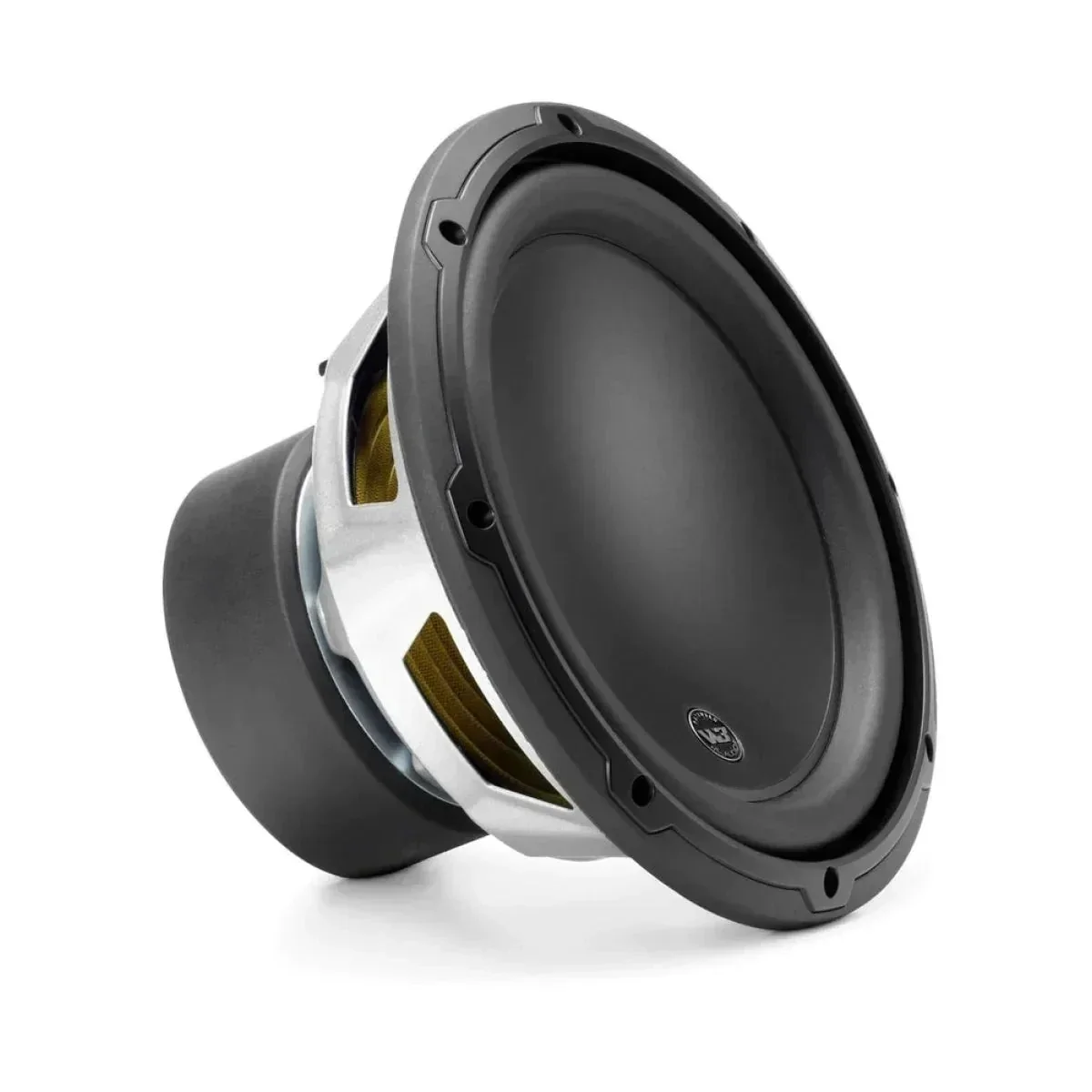

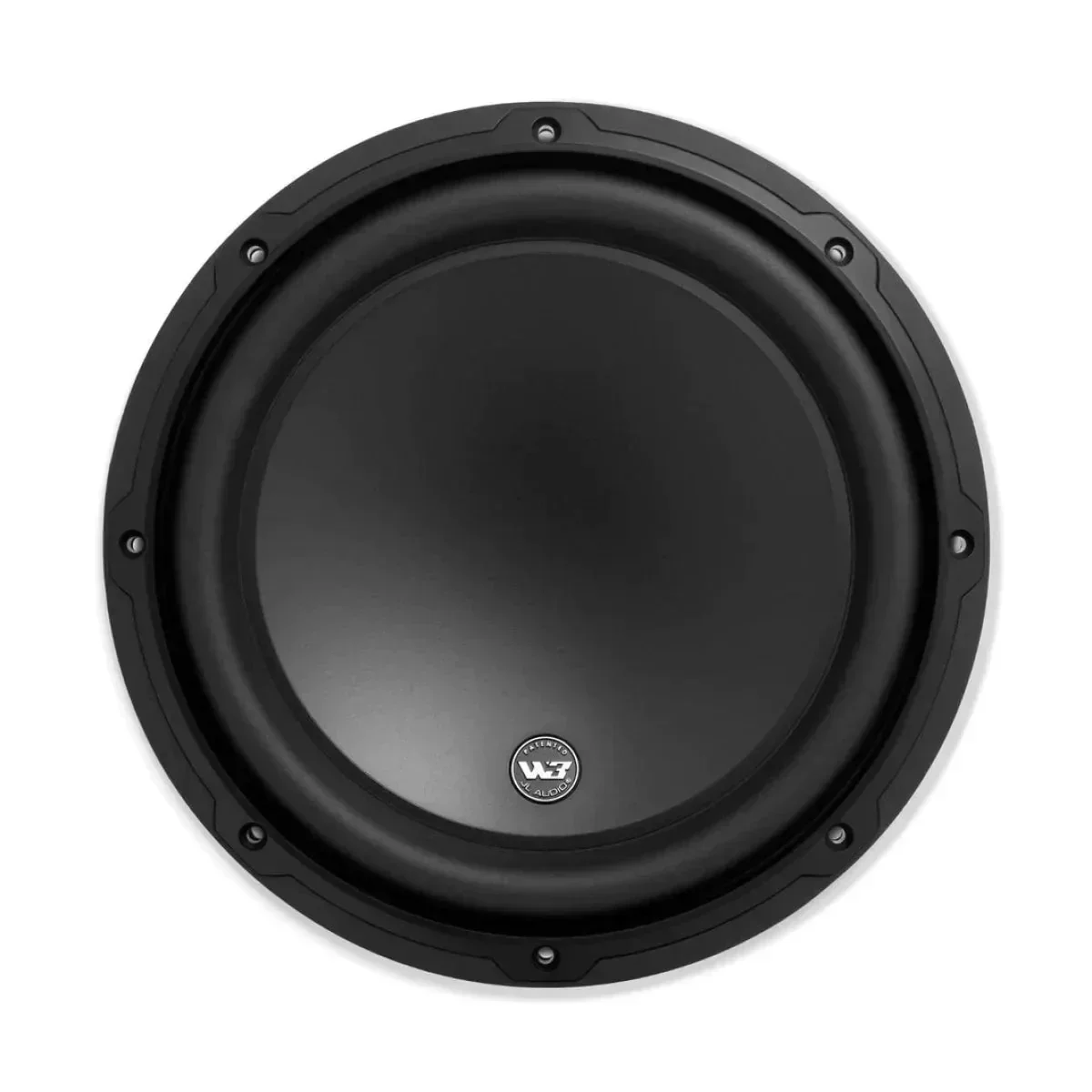

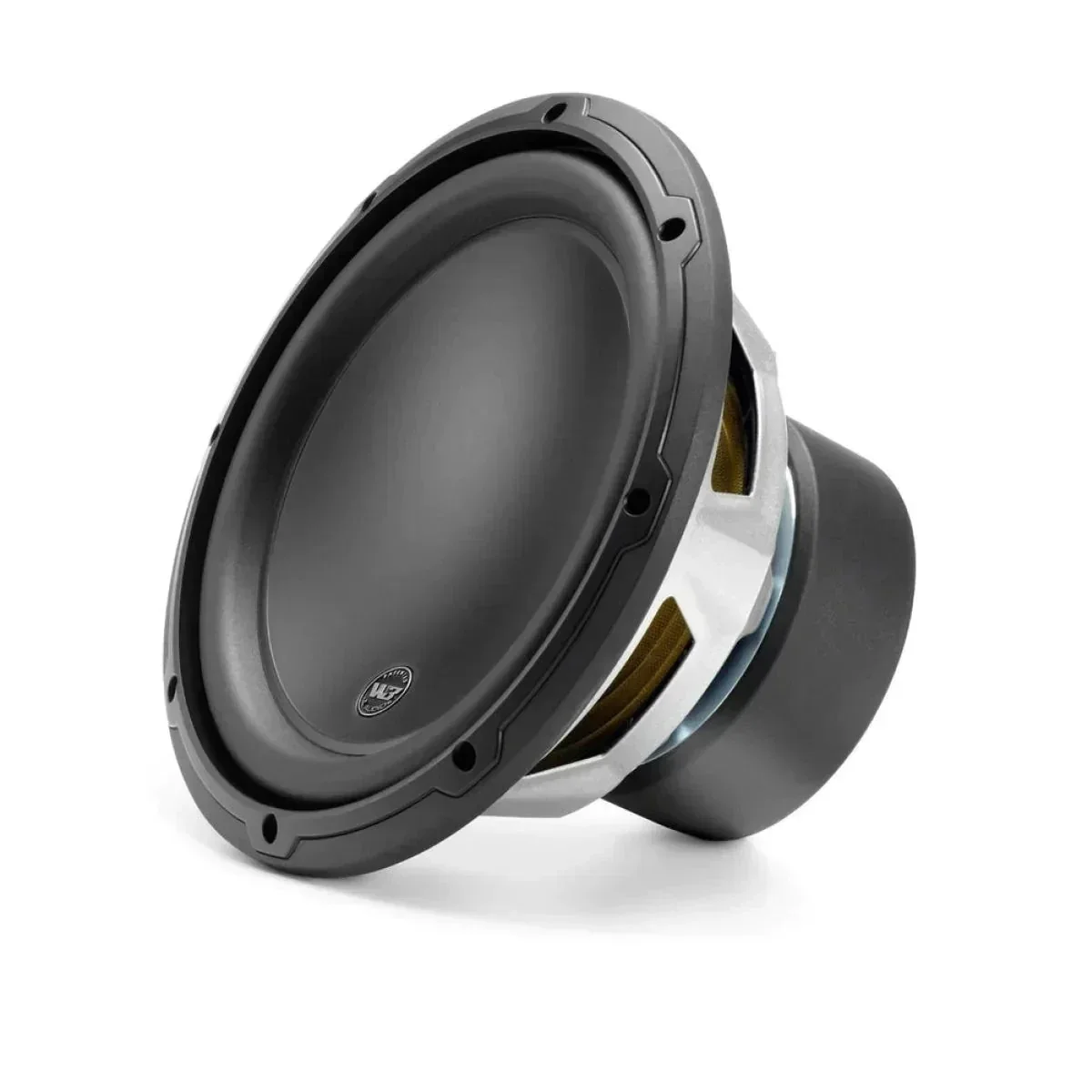

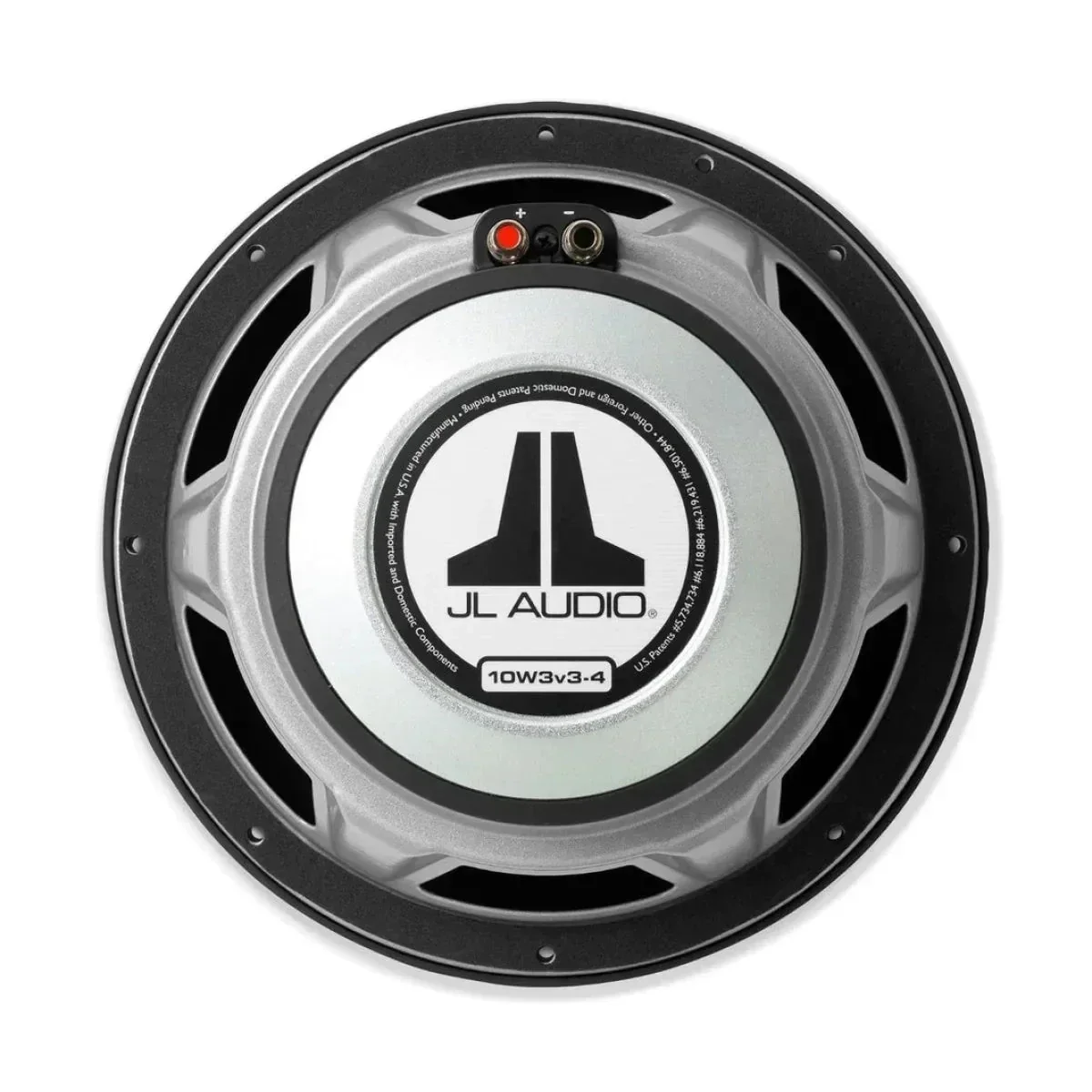

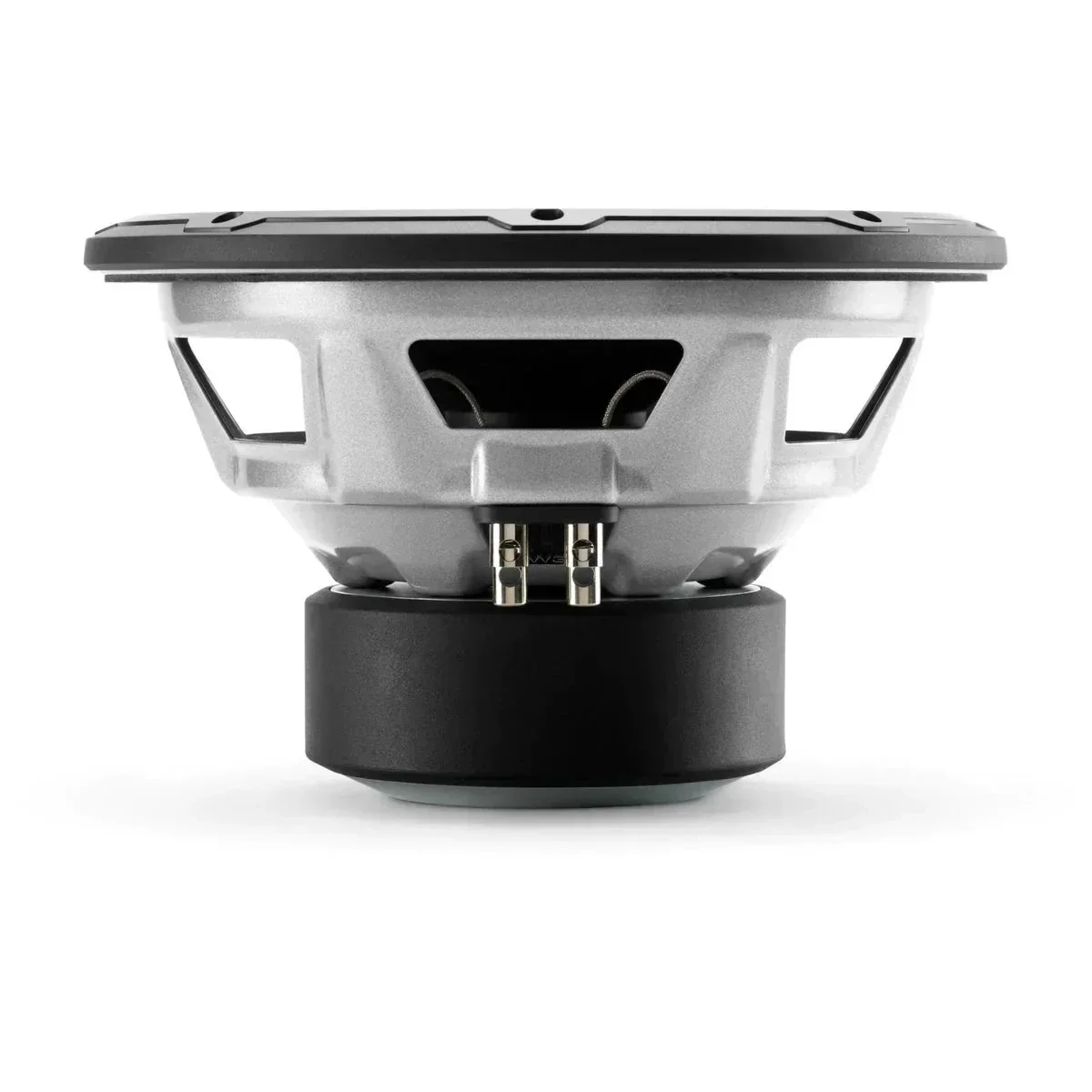

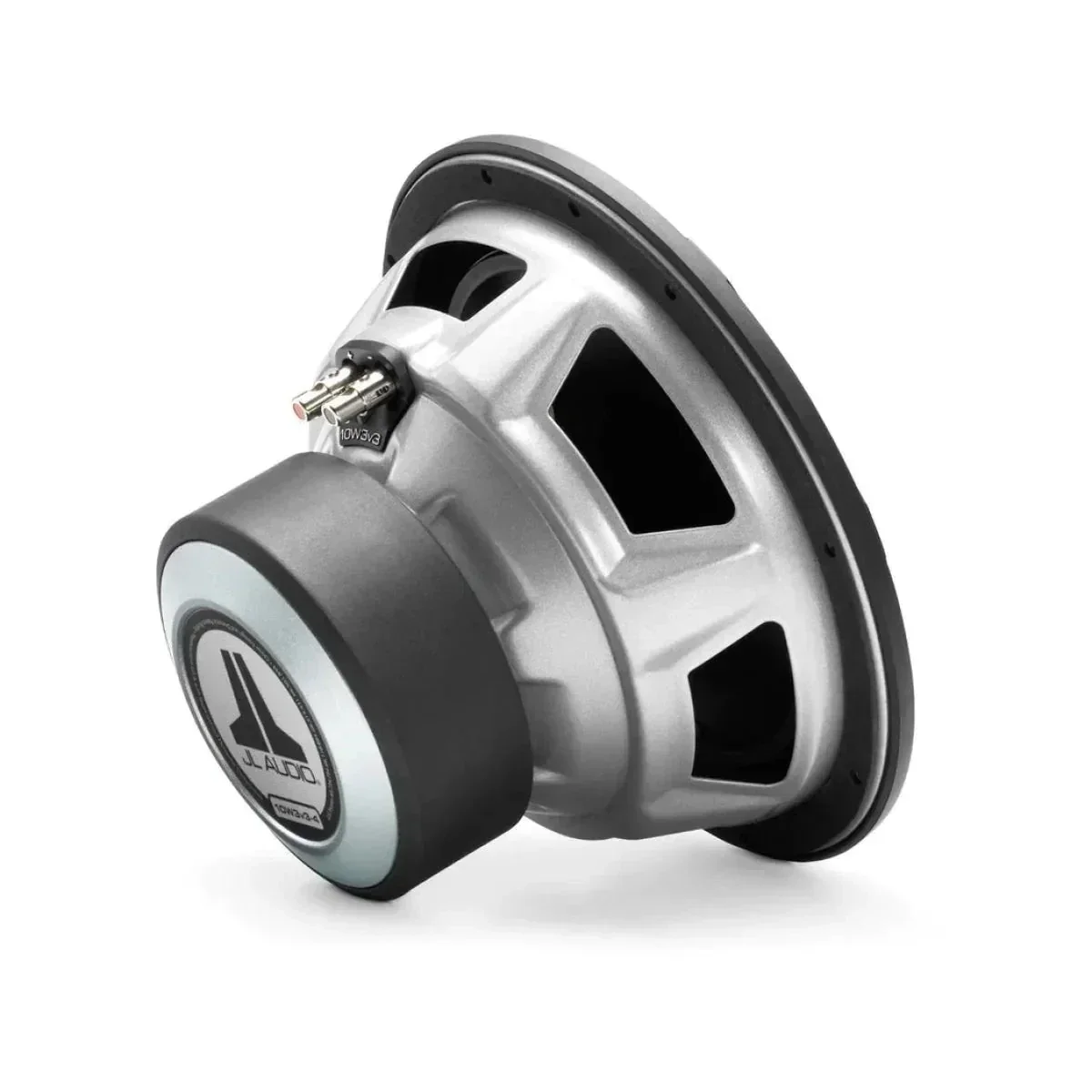

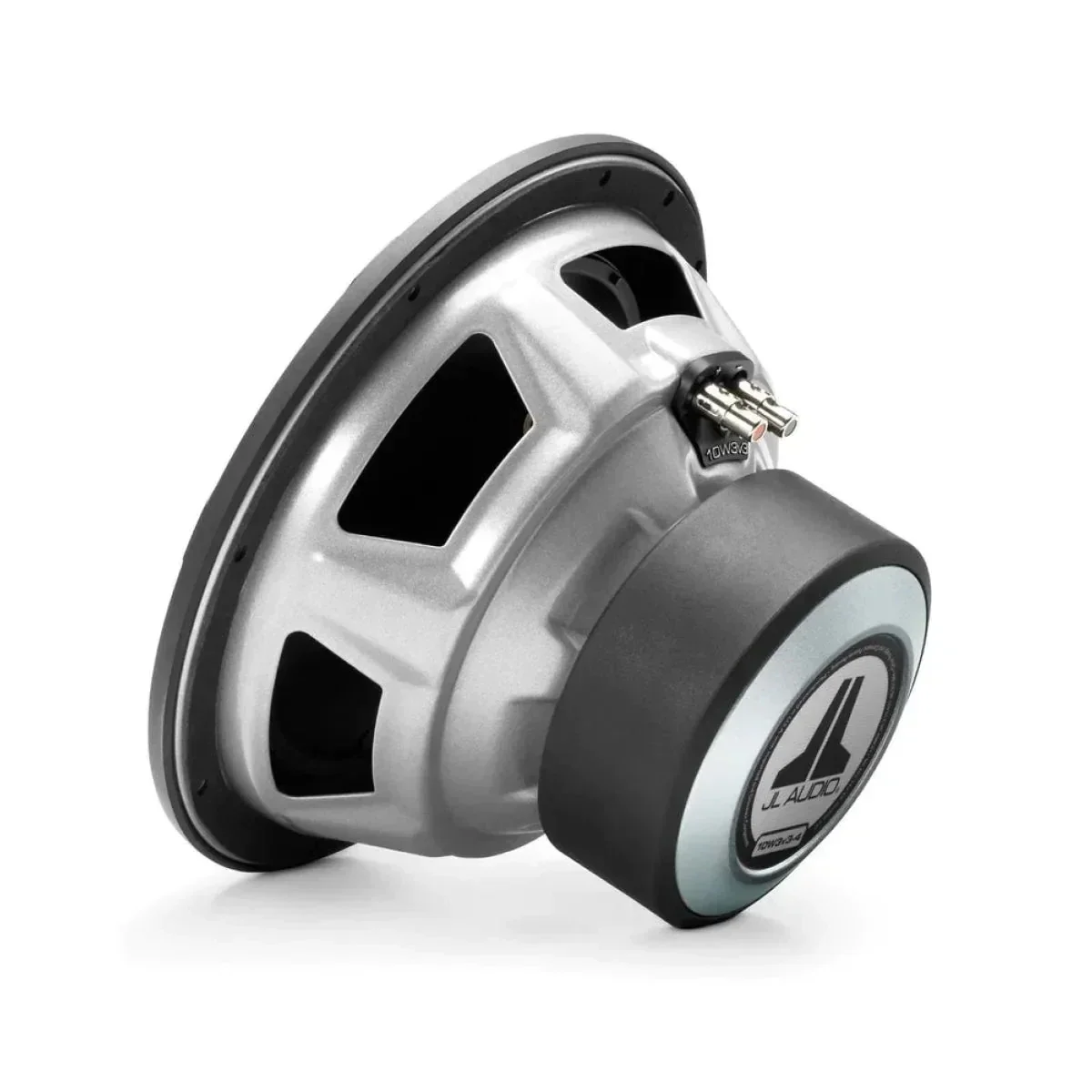

JL Audio 10W3V3-2/4 10 inch subwoofer
€359.00
JL Audio 10W3V3-2/4
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo:
- W3v3 10-inch subwoofer (500 W, )
- This acclaimed subwoofer strikes an excellent balance between power handling, cabinet requirements and excursion to deliver outstanding results in medium power applications.
- Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to improve linearity and reliability.
- The 10W3v3 is best used with amplifier power in the 150W - 500W range and is optimized for operation in a compact, sealed enclosure of 17.7L (0.625 cu. ft.) or a bass reflex enclosure with 35.4L (1.25 cu. ft.) port.
General specifications ( 2 ohm )
- Continuous load capacity (RMS) : 500 W
- Recommended amplifier power (RMS) : 150- 500 W
- Nominal impedance (Znom) : 2 Ω
- Nominal diameter: 250 mm / 10.0 inch
- Overall diameter (A): 267 mm / 10.5 inches
- Diameter of the mounting hole (B): 230 mm / 9.0625 inches
- Bolt pitch circle diameter (C): 246.5 mm (9.7 inches)
- Motor outer diameter (D): 133 mm / 5.25 inches
- Installation depth (E): 151 mm (5.93 inches)
- Volume displacement : 0.049 cu ft / 1.39 L
- Net weight : 12,25 lb / 5,56 kg
Parameters
- Free air resonance (Fs) : 32.97 Hz
- Electrical "Q" (Qes) : 0.533
- Mechanical "Q" (Qms) : 7.027
- Overall quality "Q" (Qts): 0.495
- Equivalent volume (Vas) : 1.136 cu ft / 32.17 L
- Simple linear deflection (Xmax) : 0.550 inch / 14.0 mm
- Reference efficiency : 0.21%
- Efficiency (1 W / 1 m) : 85.37 dB SPL
- Effective diaphragm area (Sd) : 0.0345 square meters
- DC resistance (Re) : 1.70 Ω
General specifications ( 4 ohm )
- Continuous load capacity (RMS) : 500 W
- Recommended amplifier power (RMS) : 150- 500 W
- Nominal impedance (Znom) : 4 Ω
Parameters
- Free air resonance (Fs) : 31.49 Hz
- Electrical "Q" (Qes) : 0.523
- Mechanical "Q" (Qms) : 7.017
- Total quality "Q" (Qts) : 0.485
- Equivalent volume (Vas) : 1,138 cu ft / 32.23 liters
- Simple linear deflection (Xmax): 0.550 inch / 14.0 mm
- Reference efficiency : 0.19%
- Efficiency (1 W / 1 m) : 84.87 dB SPL
- Effective diaphragm area (Sd) : 0.0345 square meters
- DC resistance (Re) : 3.567 Ω
Dimensions
- Nominal diameter: 250 mm / 10.0 inch
- Overall diameter (A): 267 mm / 10.5 inches
- Diameter of the mounting hole (B): 230 mm / 9.0625 inches
- Bolt pitch circle diameter (C): 246.5 mm (9.7 inches)
- Motor outer diameter (D): 133 mm / 5.25 inches
- Installation depth (E): 151 mm (5.93 inches)
- Volume displacement : 0.049 cu ft / 1.39 L
- Net weight : 12,25 lb / 5,56 kg
