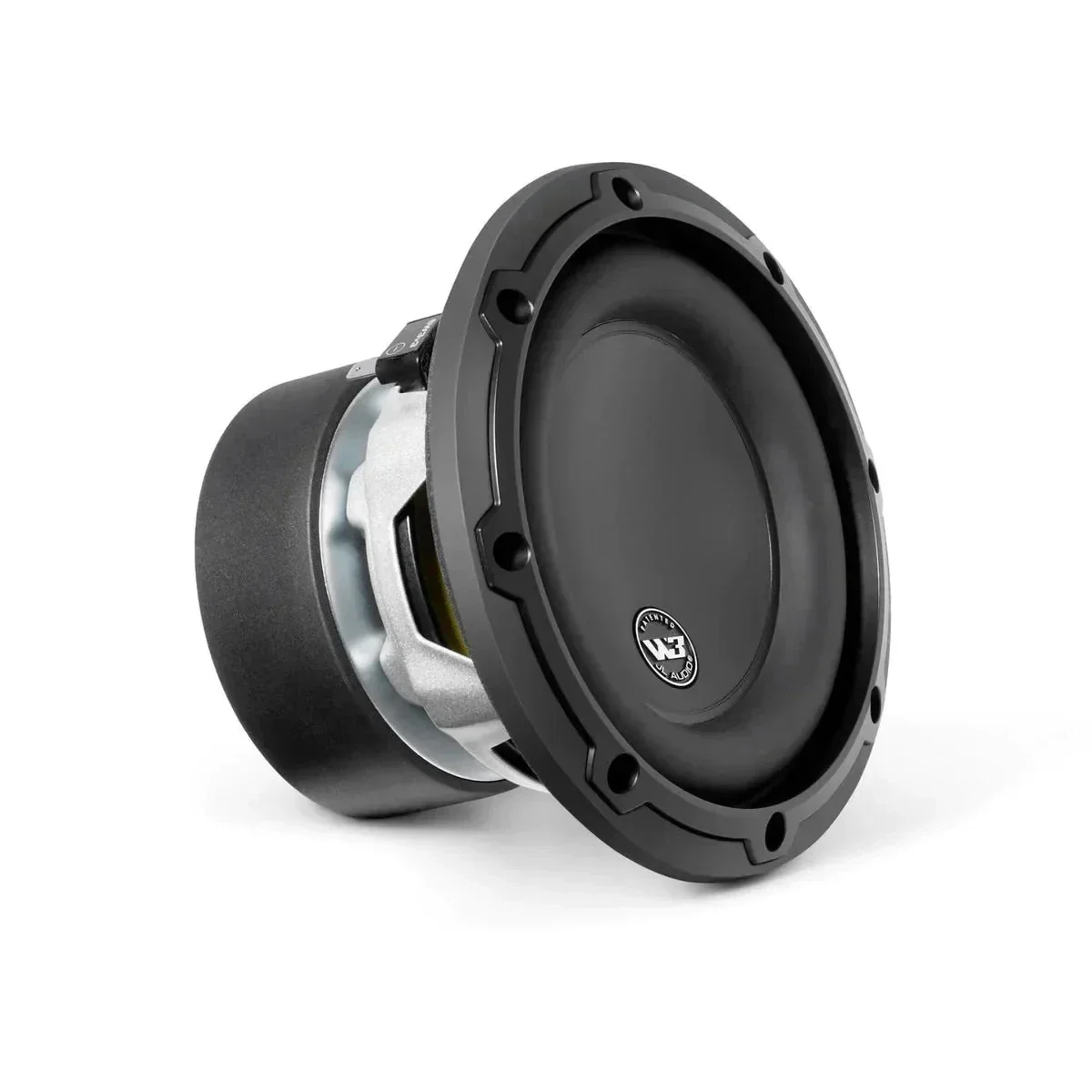

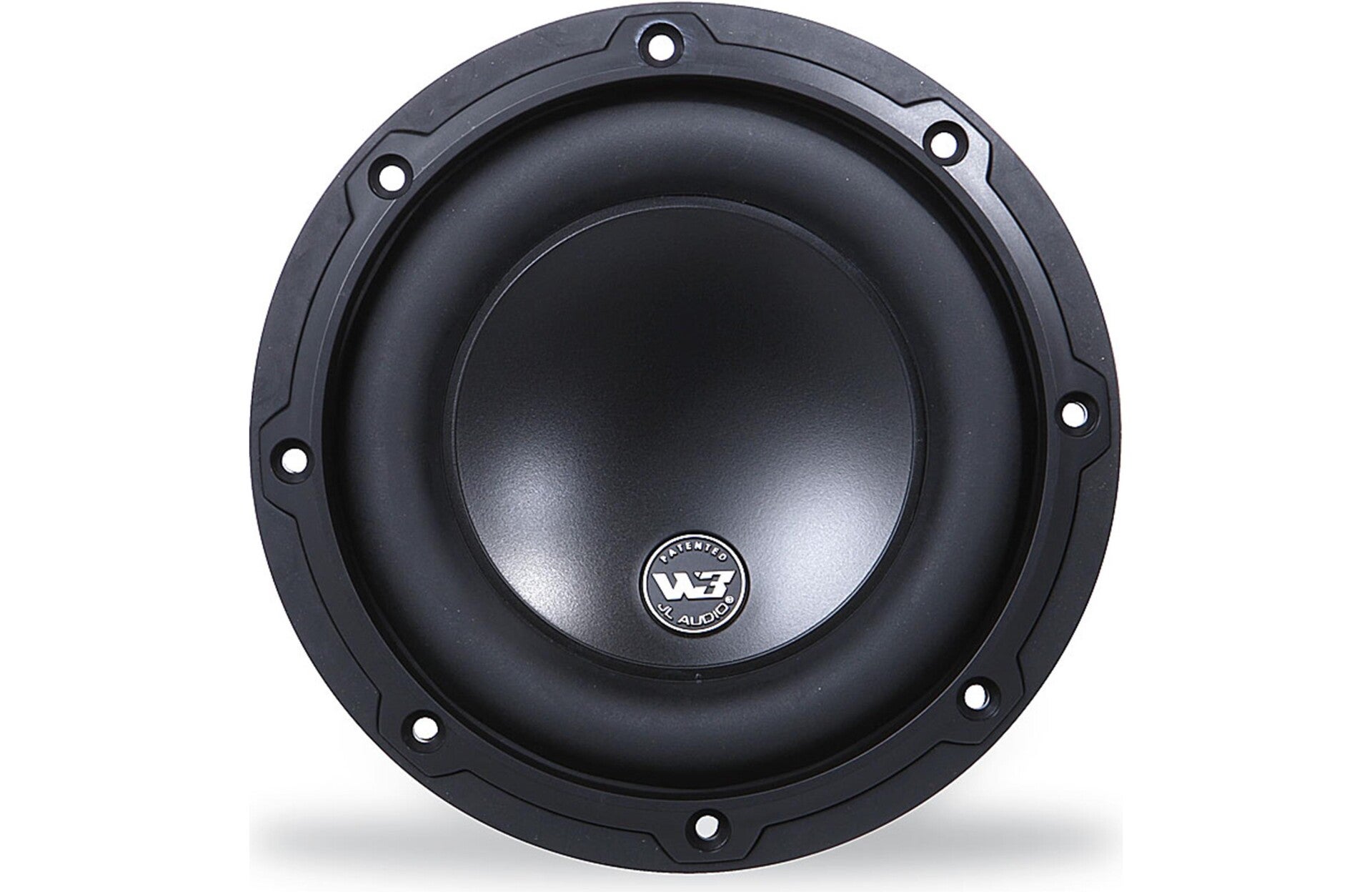

JL Audio 6W3V3-4 6.5 inch subwoofer

JL Audio 6W3V3-4

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Productinfo:

• W3v3 6.5-inch subwoofer (150 W, 4 Ω)
• If you need a small subwoofer that really delivers power even in extremely small enclosures, the search ends here.
• The 6W3v3 is a true subwoofer, through and through.
• It uses the same technologies as its larger diameter brethren and delivers a whopping 0.35 in. (8.9 mm) single linear deflection.
• The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized for operation in a tiny 4.2L (0.15 cu. ft.) sealed enclosure or a 7.1L (0.25 cu. ft.) port bass reflex enclosure.

General specifications

• Continuous load capacity (RMS) : 150 W
• Recommended amplifier power (RMS): 50 - 150 W
• Nominal impedance (Znom) : 4 Ω

Dimensions

• Nominal diameter: 165 mm / 6.5 inches
• Overall diameter (A): 174 mm / 6.85 inches
• Diameter of the mounting hole (B) : 140 mm / 5.5 inch
• Bolt circle diameter (C) : 156 mm / 6.125 inch
• Motor outer diameter (D) : 108 mm / 4.25 inch
• Installation depth (E) : 108 mm (4.25 inch)
• Volume displacement : 0.02 cu ft / 0.57 L
• Net weight : 6,1 lb / 2,8 kg

Parameters

• Free air resonance (Fs) : 41.80 Hz
• Electrical "Q" (Qes) : 0.533
• Mechanical "Q" (Qms) : 11.027
• Total quality "Q" (Qts) : 0.508
• Equivalent volume (Vas) : 0.181 cu ft / 5.13 L
• Simple linear deflection (Xmax) : 0.35 inch / 8.89 mm
• Reference efficiency : 0.07%
• Efficiency (1 W / 1 m) : 80.49 dB SPL
• Effective diaphragm area (Sd) : 0.0112 square meters
• Direct current resistance (Re) : 3.476 Ω
